• Air conditioning, single-zone
• Air vents, rear (Not available with Regular Cab model.)
• Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted
• Audio system feature, 6-speaker system (Requires Crew Cab or Double Cab model.)
• Bluetooth® for phone, connectivity to vehicle infotainment system
• Driver Information Center, 3.5" diagonal monochromatic display
• Exterior Temperature Display, located in radio display
• Floor covering, rubberized-vinyl (Not available with LPO floor liners.)
• Mirror, inside rearview, manual tilt
• Power outlet, front auxiliary, 12-volt
• Rear Seat Reminder (Requires Crew Cab or Double Cab model.)
• Seat adjuster, driver 4-way manual
• Seat adjuster, passenger 4-way manual

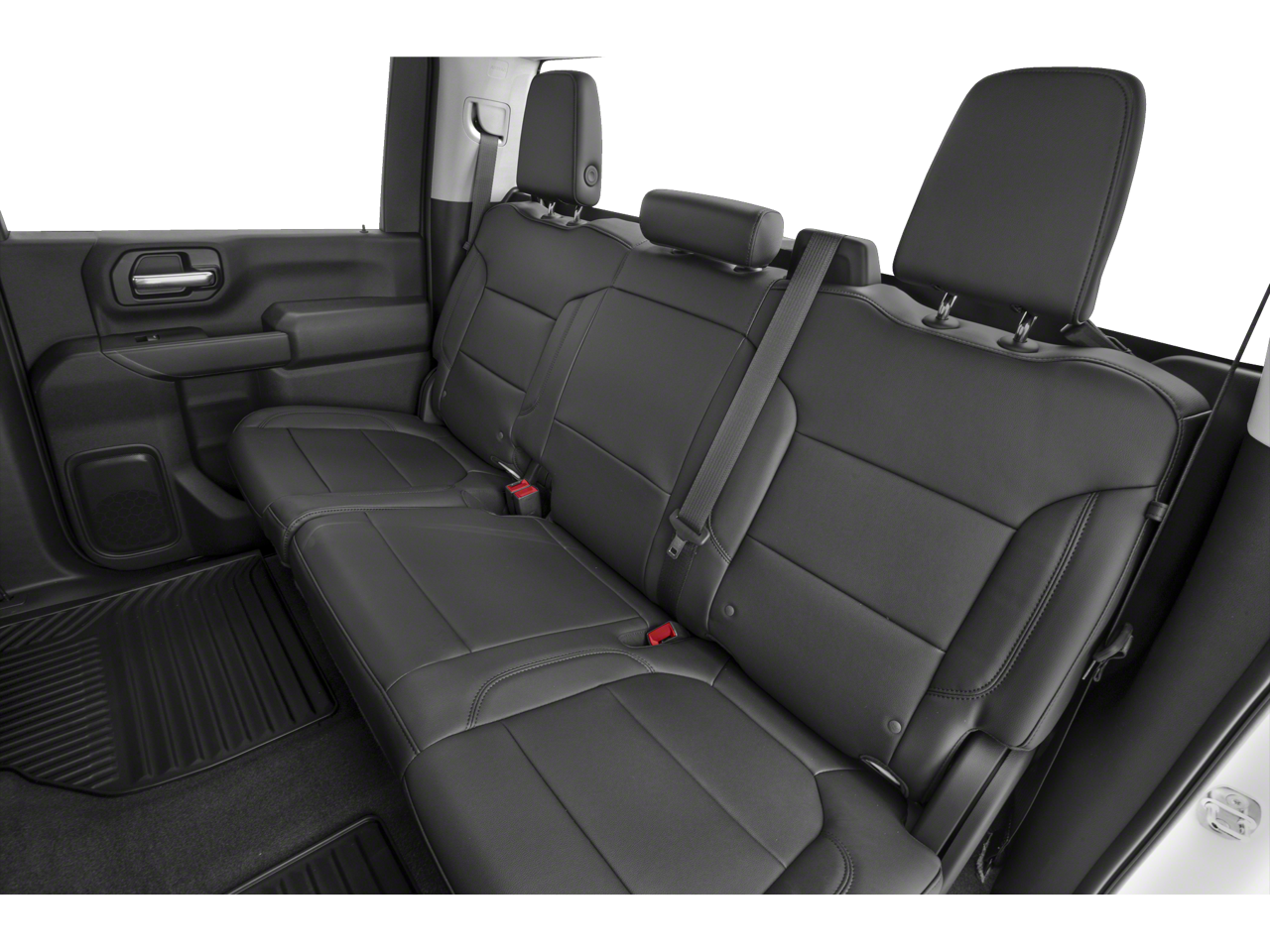

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor) (Not available with Regular Cab model.)
• Seats, front 40/20/40 split-bench with upper covered armrest storage with fixed lumbar
• Steering column, Tilt-Wheel, manual with wheel locking security feature
• Steering wheel, urethane
• USB ports, 2 (first row) located on instrument panel
• Windows, power rear, express down (Not available on Regular Cab models.)

• Air filter, heavy-duty
• Air filtration monitoring
• Auto-locking rear differential
• Brake lining wear indicator
• Brakes, 4-wheel antilock, 4-wheel disc with DURALIFE rotors
• Four wheel drive
• Frame, fully-boxed, hydroformed front section and a fully-boxed stamped rear section
• Recovery hooks, front, frame-mounted, Black
• Steering, Recirculating Ball with smart flow power steering system
• Suspension Package (Not available with (X31) Off-Road Package.)
• Transfer case, two-speed, electronic shift with push button controls (Requires 4WD models.)

• Airbags, dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime Running Lamps, LED signature lighting
• Rear Vision Camera (Deleted with (ZW9) pickup bed delete.)
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System with Tire Fill Alert (does not apply to spare tire)

SKID PLATES

• protect the oil pan
• front axle and transfer case

PRO PREFERRED EQUIPMENT GROUP

• includes standard equipment

WHEELS, 17" (43.2 CM) PAINTED STEEL, SILVER

• (STD)

X31 OFF-ROAD PACKAGE

• includes (JHD) Hill Descent Control
• (NZZ) skid plates
• Off-Road suspension
• Twin-tube Rancho shocks and X31 hard badge Includes (QXT) LT265/70R17E all-terrain
• blackwall tires.

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY

• (STD)

GVWR, 10,650 LBS. (4831 KG)

• (STD)

FRONT AND REAR PARK ASSIST, ULTRASONIC

• (Beginning with start of production
• vehicles will be forced to include (00Z) Not Equipped with Front and Rear Park Assist
• which removes Front and Rear Park Assist. See dealer for details or the window label for the features on a specific vehicle.

POWER OUTLET, BED MOUNTED, 120-VOLT

• (400 watts shared with (KI4) instrument panel mounted power outlet)

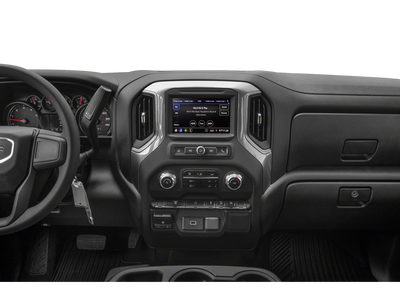

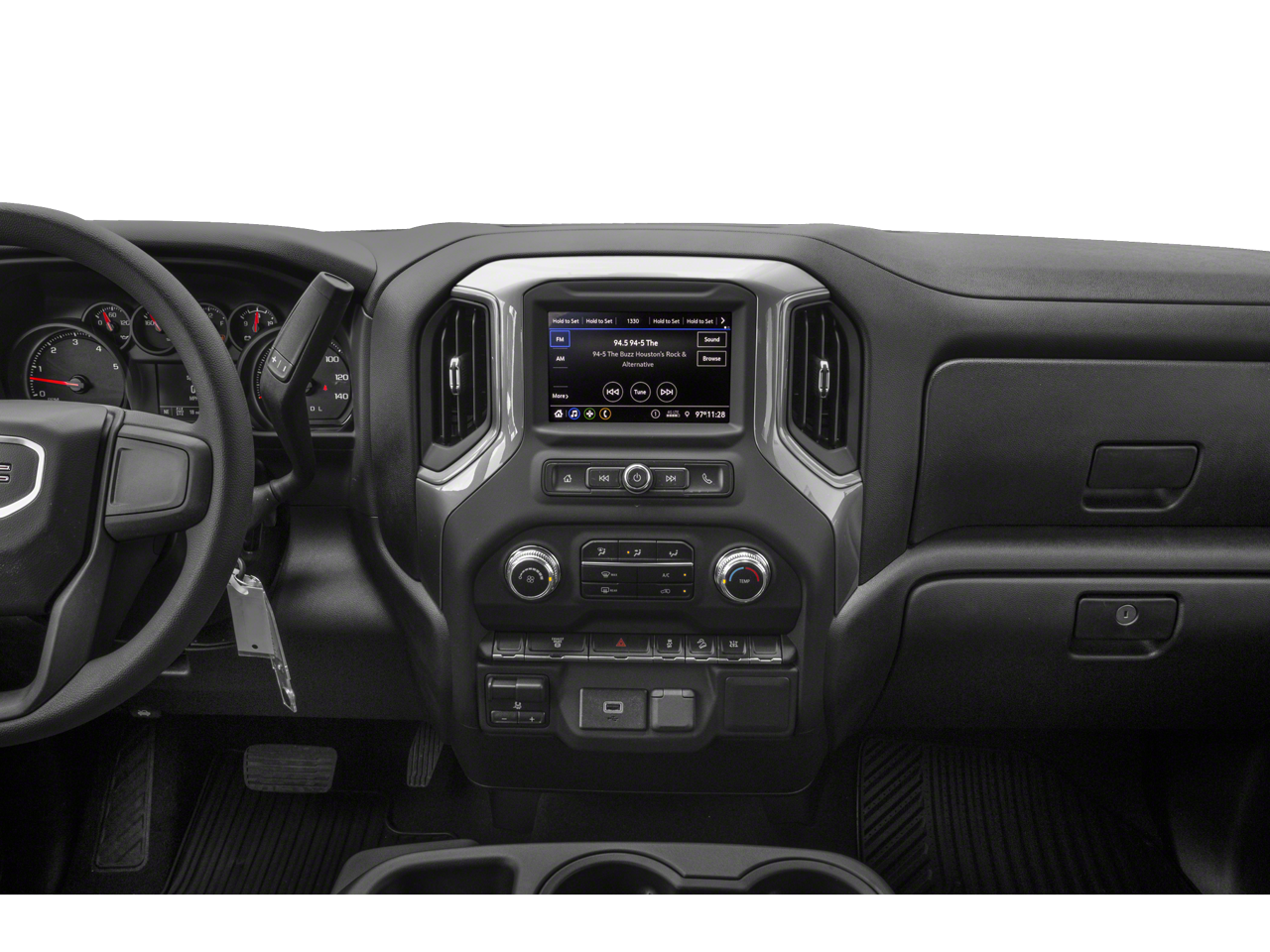

AUDIO SYSTEM, GMC INFOTAINMENT SYSTEM WITH 7" DIAGONAL COLOR TOUCH-SCREEN

• AM/FM stereo with seek-and-scan and digital clock
• includes Bluetooth® streaming audio for music and select phones; featuring wired Android Auto and Apple CarPlay capability for compatible phones (STD)

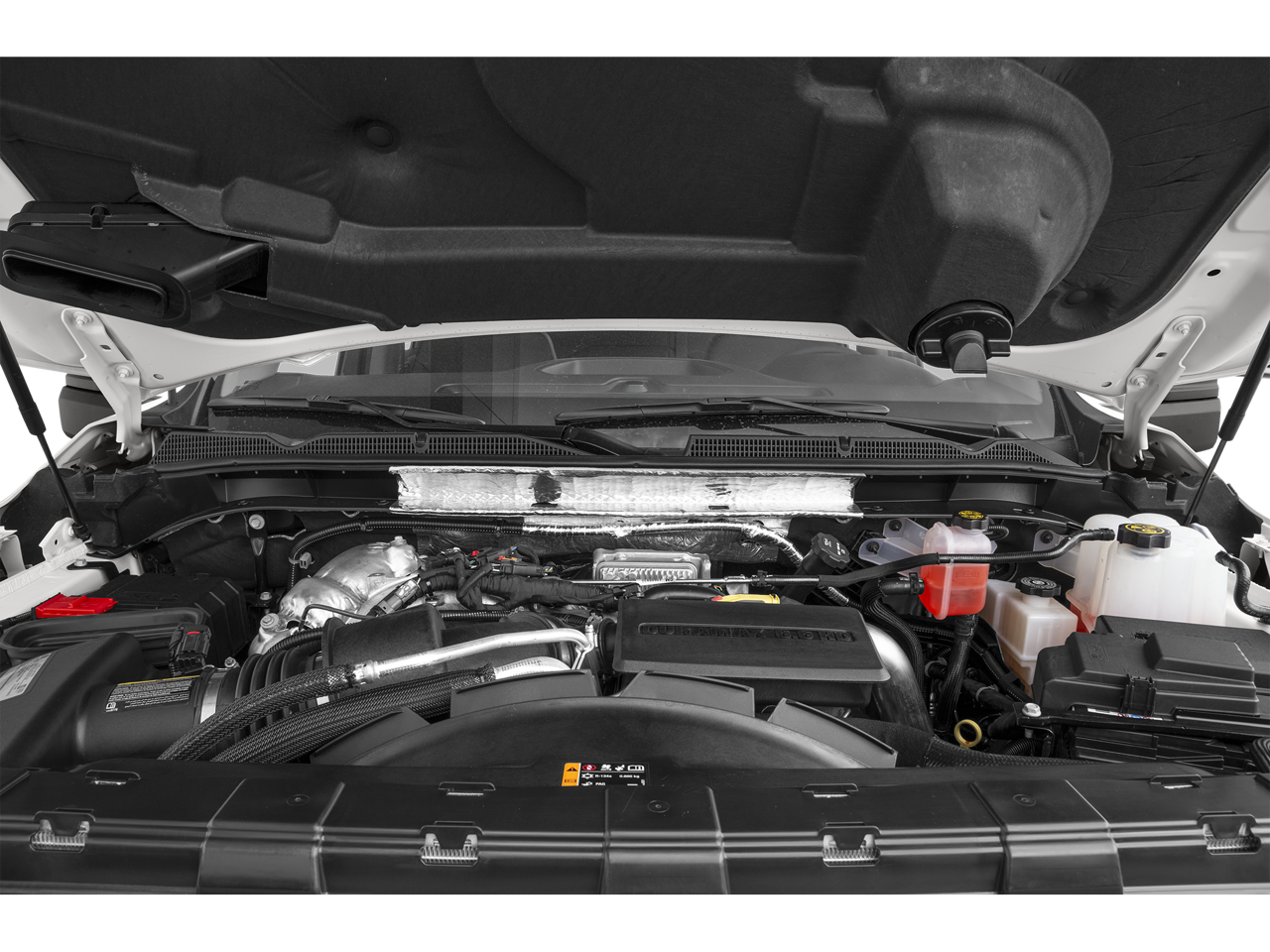

ENGINE, 6.6L V8

• with Direct Injection and Variable Valve Timing
• gasoline
• (401 hp [299 kW] @ 5200 rpm
• 464 lb-ft of torque [629 N-m] @ 4000 rpm) (STD)

UPFITTER SWITCH KIT, (5)

• Provides 3-30 amp and 2-20 amp configurable circuits to facilitate installation of aftermarket electrical accessories. Kit with all required parts will be shipped loose with the truck for installation by the dealer or upfitter at customer expense. Installation instructions and technical assistance available at www.gmupfitter.com.

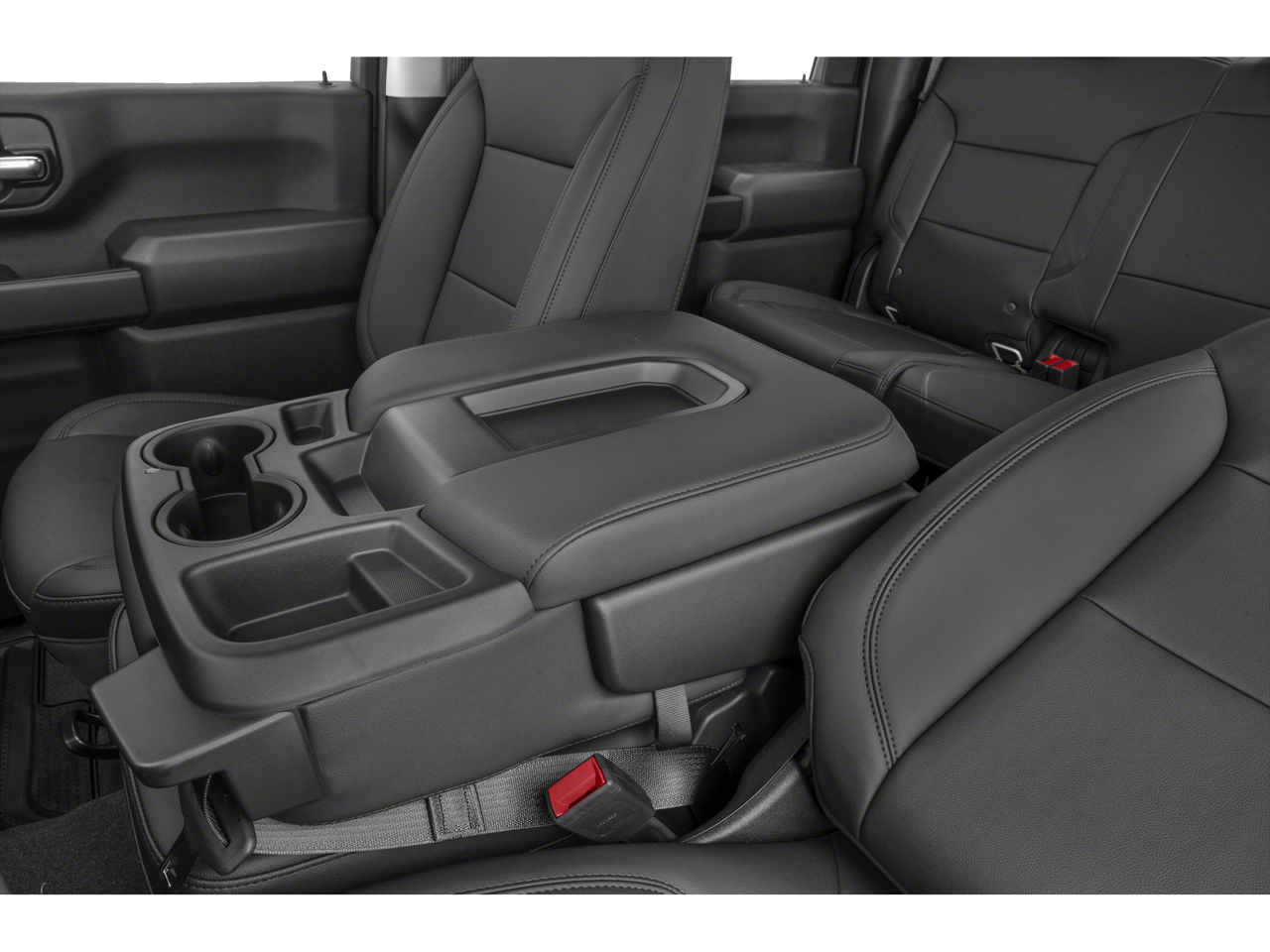

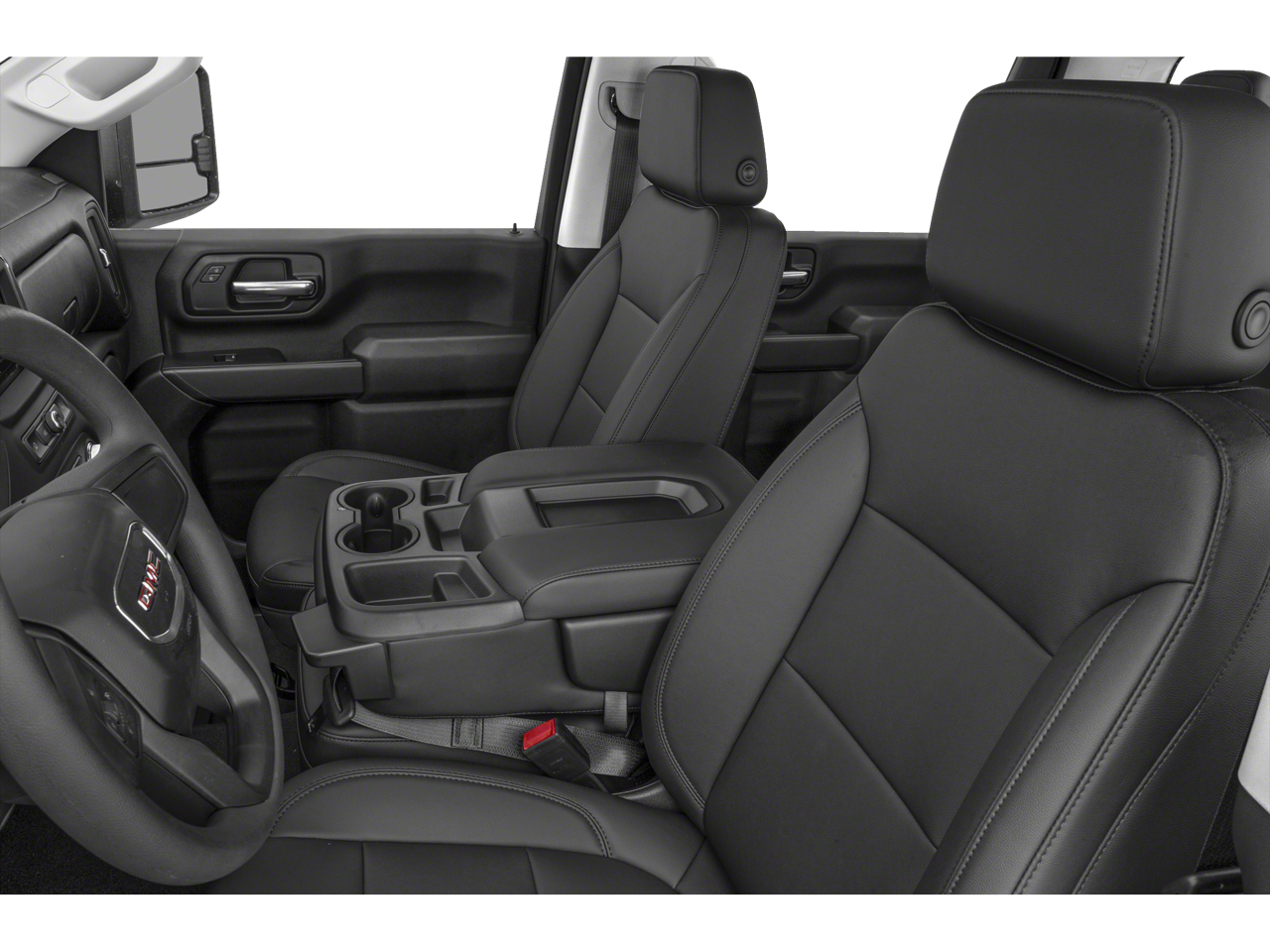

SEATS, FRONT 40/20/40 SPLIT-BENCH

• with upper covered armrest storage with fixed lumbar (STD)

BED LINER, SPRAY-ON, PICKUP BEDLINER WITH GMC LOGO

• (does not include spray-on liner on tailgate due to Black composite inner panel) PRO trim will not have the GMC logo.

PICKUP BED

• includes bed assist step (STD)

SIRIUSXM RADIO

• enjoy a Platinum Plan trial subscription with over 150 channels including commercial-free music
• plus sports
• news and entertainment. Plus listening on the SiriusXM app
• online and at home on compatible connected devices is included
• so you'll hear the best SiriusXM has to offer
• anywhere life takes you. Welcome to the world of SiriusXM.

3 YEARS OF ONSTAR & CONNECTED SERVICES PLAN

• see onstar.com for information. Access the entire suite of OnStar Safety & Security Services and Connected Services. For retail customers
• this includes the OnStar Guardian app
• connectivity for available In-Vehicle Apps
• In-Vehicle Wi-Fi Hotspot data and Remote Access through the myGMC mobile app. Fleet customers will receive OnStar Vehicle Insights instead of Remote Access. Eligible vehicles receive 3-years of the OnStar and Connected Services Premium Plan
• including the Connected Vehicle Plan and the OnStar Safety & Security Plan. Connected Vehicle Plan includes connectivity for available in-vehicle apps
• Remote Access Plan (excluding Fleet vehicles
• which will receive OnStar Vehicle Insights) and In-Vehicle Wi-Fi Hotspot data. OnStar Safety & Security Plan includes access to the OnStar Guardian App
• Automatic Crash Response
• Emergency Services
• Crisis Assist
• Roadside Assistance and Stolen Vehicle Assistance.)

• ONSTAR AND GMC CONNECTED SERVICES CAPABLE
• 1SA DRIVER ALERT PACKAGE I includes (UD5) Front and Rear Park Assist (UKC) Lane Change Alert with Side Blind Zone Alert and (UFG) Rear Cross Traffic Alert (Beginning with start of production vehicles will be forced to include (00Z) Not Equipped with Front and Rear Park Assist which removes Front and Rear Park Assist. See dealer for details or the window label for the features on a specific vehicle. Includes Perimeter Lighting.
• MIRRORS OUTSIDE POWER-ADJUSTABLE VERTICAL TRAILERING WITH HEATED AND AUTO-DIMMING UPPER GLASS (driver and passenger) lower convex mirrors turn signal indicators puddle lamps perimeter lighting auxiliary lighting manual folding and extending (extends 3.31 [84.25mm]) Includes (DD8) auto-dimming rearview mirror.
• LANE CHANGE ALERT WITH SIDE BLIND ZONE ALERT
• SKID PLATES protect the oil pan front axle and transfer case
• LICENSE PLATE KIT FRONT
• CRUISE CONTROL STEERING WHEEL-MOUNTED
• POWER OUTLET INSTRUMENT PANEL 120-VOLT (400 watts shared with (KC9) bed mounted power outlet)
• JET BLACK CLOTH SEAT TRIM
• REMOTE KEYLESS ENTRY
• PRO PREFERRED EQUIPMENT GROUP includes standard equipment
• WHEELS 17 (43.2 CM) PAINTED STEEL SILVER (STD)
• FOREST METALLIC
• DELETED.
• X31 OFF-ROAD PACKAGE includes (JHD) Hill Descent Control (NZZ) skid plates Off-Road suspension Twin-tube Rancho shocks and X31 hard badge Includes (QXT) LT265/70R17E all-terrain blackwall tires.
• TIRES LT265/70R17E ALL-TERRAIN BLACKWALL
• DEFOGGER REAR-WINDOW ELECTRIC
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY (STD)
• HILL DESCENT CONTROL
• GVWR 10 650 LBS. (4831 KG) (STD)
• FRONT AND REAR PARK ASSIST ULTRASONIC (Beginning with start of production vehicles will be forced to include (00Z) Not Equipped with Front and Rear Park Assist which removes Front and Rear Park Assist. See dealer for details or the window label for the features on a specific vehicle.
• POWER OUTLET BED MOUNTED 120-VOLT (400 watts shared with (KI4) instrument panel mounted power outlet)
• AUDIO SYSTEM GMC INFOTAINMENT SYSTEM WITH 7 DIAGONAL COLOR TOUCH-SCREEN AM/FM stereo with seek-and-scan and digital clock includes Bluetooth® streaming audio for music and select phones; featuring wired Android Auto and Apple CarPlay capability for compatible phones (STD)
• ENGINE BLOCK HEATER
• ENGINE 6.6L V8 with Direct Injection and Variable Valve Timing gasoline (401 hp [299 kW] @ 5200 rpm 464 lb-ft of torque [629 N-m] @ 4000 rpm) (STD)
• UPFITTER SWITCH KIT (5) Provides 3-30 amp and 2-20 amp configurable circuits to facilitate installation of aftermarket electrical accessories. Kit with all required parts will be shipped loose with the truck for installation by the dealer or upfitter at customer expense. Installation instructions and technical assistance available at www.gmupfitter.com.
• TRAILER BRAKE CONTROLLER INTEGRATED
• SEATS FRONT 40/20/40 SPLIT-BENCH with upper covered armrest storage with fixed lumbar (STD)
• MIRROR INSIDE REARVIEW AUTO-DIMMING
• BED LINER SPRAY-ON PICKUP BEDLINER WITH GMC LOGO (does not include spray-on liner on tailgate due to Black composite inner panel) PRO trim will not have the GMC logo.
• SEAT ADJUSTER DRIVER 10-WAY POWER including lumbar
• REAR CROSS TRAFFIC ALERT
• WI-FI HOTSPOT CAPABLE
• PICKUP BED includes bed assist step (STD)
• SIRIUSXM RADIO enjoy a Platinum Plan trial subscription with over 150 channels including commercial-free music plus sports news and entertainment. Plus listening on the SiriusXM app online and at home on compatible connected devices is included so you'll hear the best SiriusXM has to offer anywhere life takes you. Welcome to the world of SiriusXM.
• see onstar (subscription required).com for information. Access the entire suite of OnStar Safety (subscription required) & Security Services and Connected Services. For retail customers this includes the OnStar Guardian app (subscription required) connectivity for available In-Vehicle Apps In-Vehicle Wi-Fi Hotspot data and Remote Access through the myGMC mobile app. Fleet customers will receive OnStar Vehicle Insights (subscription required) instead of Remote Access. Eligible vehicles Premium Plan including the Connected Vehicle Plan and the OnStar Safety (subscription required) & Security Plan. Connected Vehicle Plan includes connectivity for available in-vehicle apps Remote Access Plan (excluding Fleet vehicles which will receive OnStar Vehicle Insights (subscription required) ) and In-Vehicle Wi-Fi Hotspot data. OnStar Safety (subscription required) & Security Plan includes access to the OnStar Guardian App (subscription required) Automatic Crash Response Emergency Services Crisis Assist Roadside Assistance and Stolen Vehicle Assistance.)
• TIRE SPARE LT265/70R17E ALL-TERRAIN BLACKWALL
• TAILGATE GATE FUNCTION MANUAL WITH EZ LIFT includes power lock and release includes hitch area light
• REAR AXLE 3.73 RATIO
• Tow Hitch
• Running Boards/Side Steps
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hooks
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Daytime Running Lights
• AM/FM Stereo
• MP3 Capability
• Bluetooth® Connection
• Auxiliary Audio Input
• Smart Device Integration
• Bluetooth® Connection
• Split Bench Seat
• Pass-Through Rear Seat
• Rear Bench Seat
• Floor Mats
• Adjustable Steering Wheel
• Power Windows
• Power Windows
• Power Windows
• Power Door Locks
• MP3 Capability
• Auxiliary Audio Input
• Power Outlet
• A/C
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag Sensor
• Back-Up Camera
• Driver Restriction Features
• Tire Pressure Monitor

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 170
• Maximum Alternator Watts: N/A
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Rear (lbs): 6390
• Curb Weight - Front (lbs): 3926
• Curb Weight - Rear (lbs): 2828
• Gross Vehicle Weight Rating Cap (lbs): 10650
• Gross Combined Wt Rating (lbs): 24000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 14500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1450
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 16550
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4137
• Maximum Trailering Capacity (lbs): 18500
• Suspension
• Suspension Type - Front (Cont.): w/Torsion Bar
• Suspension Type - Rear (Cont.): 3-Stage Leaf
• Suspension Type - Front: Short/Long Arm
• Suspension Type - Rear: Multi-Leaf Springs
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 51
• Shock Absorber Diameter - Rear (mm): 51
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14 x 1.6
• Rear Brake Rotor Diam x Thickness (in): 14.1 x 1.3
• Tires
• Front Tire Order Code: QXT
• Front Tire Order Code: QHQ
• Rear Tire Order Code: QXT
• Rear Tire Order Code: QHQ
• Spare Tire Order Code: ZXT
• Spare Tire Order Code: ZHQ
• Front Tire Size: LT265/70R17E
• Front Tire Size: LT245/75R17E
• Rear Tire Size: LT265/70R17E
• Rear Tire Size: LT245/75R17E
• Spare Tire Size: LT265/70R17E
• Spare Tire Size: LT245/75R17E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 17 x - TBD -
• Rear Wheel Size (in): 17 x - TBD -
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 57
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 172
• Length, Overall (in): 266.09
• Width, Max w/o mirrors (in): 81.85
• Height, Overall (in): 79.65
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): 55.2
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 10.08
• Ground Clearance, Rear (in): 10.08
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.27
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 71.4
• Cargo Box Width @ Wheelhousings (in): 50.55
• Cargo Box (Area) Height (in): 21
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 83.5
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 43.03
• Front Leg Room (in): 44.53
• Front Shoulder Room (in): 66.02
• Front Hip Room (in): 61.18
• Second Head Room (in): 40.12
• Second Leg Room (in): 43.4
• Second Shoulder Room (in): 65.3
• Second Hip Room (in): 60.24
• Summary
• Vehicle Name: GMC Sierra 2500HD
• Body Style: Crew Cab Pickup
• Body Code: E63
