• 6-speaker audio system (Standard on Crew Cab and Double Cab models and Included and only available on Regular Cab models with (IOB) 7" diagonal color touch screen display radio with Chevrolet MyLink.)
• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Audio system, 4.2" diagonal color display, AM/FM stereo with USB port and auxiliary jack (Upgradeable to (IOB) 7" diagonal color display radio with Chevrolet MyLink.) (Not available with (AZ3) 40/20/40 split-bench seat. Upgradeable to (IOB) 7" diagonal color display radio with Chevrolet MyLink.)
• Cruise control, steering wheel-mounted
• Door locks, power
• Driver Information Center 3.5-inch diagonal monochromatic display, provides warning messages and basic vehicle information
• Floor covering, Graphite-colored rubberized-vinyl
• Seat, rear full-width folding bench, 3-passenger (includes child seat top tether anchor) (Requires Double Cab models.)
• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (Upgradeable to (AZ3) front 40/20/40 split-bench seat.)
• Steering column, manual Tilt-Wheel
• Steering wheel
• Windows, power with driver express up and down and express down on all other windows

• Air cleaner, high-capacity
• Alternator, 150 amps
• Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc with DuraLife brake rotors (Requires single rear wheels.)
• Chassis, single rear wheel
• Differential, heavy-duty locking rear
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, fully-boxed, hydroformed front section
• Pickup box
• Recovery hooks, front, frame-mounted, black
• Steering, Recirculating ball with smart flow power steering system
• Suspension Package, Standard includes 51mm twin tube shock absorbers and 33mm front stabilizer bar
• Trailer brake controller, integrated (If (ZW9) pickup box delete or (9J4) rear bumper delete is ordered (JL1) trailer brake controller is deleted and available to order as a free flow option.)
• Trailering equipment Trailering hitch platform 2.5" with a 2.0" insert for HD, 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector to hook up parking lamps, backup lamps, right and left turn signals, an electric brake lead, battery and a ground, The trailer connector also includes the 4-way for use on trailers without brakes - park, brake/turn lamps (Will be deleted if (ZW9) pickup box delete or (9J4) rear bumper delete is ordered.)
• Transfer case, with floor-mounted shifter (Included with 4WD models only.)

• Air bag deactivation switch, frontal passenger-side (Standard on Double Cab and Regular Cab models. Not available on Crew Cab models.)
• Air bags, single-stage frontal and thorax side-impact, driver and front passenger, and head curtain side-impact, front and rear outboard seating positions (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Airbags, Double Cab and Regular Cab: Single-stage frontal airbags for driver and front outboard passenger; Includes airbag deactivation switch for front outboard passenger airbag (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime Running Lamps with automatic exterior lamp control
• OnStar, delete also deletes driver information center compass.
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Teen Driver mode a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to encourage safe driving behavior. It can limit certain vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report gives you information on your teen's driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System (does not apply to spare tire) (Included and only available with (C7A) 10,000 lb. (4536 kg) GVWR.)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

SUSPENSION PACKAGE, STANDARD

• includes 51mm twin tube shock absorbers and 33mm front stabilizer bar (STD)

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)

PICKUP BOX

• (STD)

WHEELS, 18" (45.7 CM) PAINTED STEEL

• includes 18" x 8" (45.7 cm x 20.3 cm) steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered. (STD)

UNDERBODY SHIELD, FRAME-MOUNTED SHIELDS

• includes front underbody shield starting behind front bumper and running to first cross-member
• protecting front underbody
• oil pan
• differential case and transfer case

• TIRES LT265/70R18E ALL-SEASON BLACKWALL (STD)
• TIRE SPARE LT265/70R18E ALL-SEASON BLACKWALL
• WHEEL 18 X 8 (45.7 CM X 20.3 CM) FULL-SIZE STEEL SPARE. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered.
• TRAILER BRAKE CONTROLLER INTEGRATED
• REAR AXLE 4.10 RATIO
• LICENSE PLATE KIT FRONT
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• AUDIO SYSTEM CHEVROLET MYLINK RADIO WITH 7 DIAGONAL COLOR TOUCH-SCREEN AM/FM STEREO with seek-and-scan and digital clock includes USB ports auxiliary jack Bluetooth® streaming audio for music and most phones (Includes (UQ3) 6-speaker audio system (UE1) OnStar (VV4) OnStar 4G LTE Wi-Fi Hotspot.)
• ENGINE VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE FLEXFUEL capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) (STD)
• SUSPENSION PACKAGE STANDARD includes 51mm twin tube shock absorbers and 33mm front stabilizer bar (STD)
• RED HOT
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)
• PICKUP BOX (STD)
• PAINT SOLID
• GVWR 11 000 LBS. (4990 KG) WITH SINGLE REAR WHEELS
• DARK ASH WITH JET BLACK INTERIOR ACCENTS CLOTH SEAT TRIM
• REAR VISION CAMERA
• WHEELS 18 (45.7 CM) PAINTED STEEL includes 18 x 8 (45.7 cm x 20.3 cm) steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered. (STD)
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER RECLINE with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
• UNDERBODY SHIELD FRAME-MOUNTED SHIELDS includes front underbody shield starting behind front bumper and running to first cross-member protecting front underbody oil pan differential case and transfer case
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hitch
• Tow Hooks
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• Split Bench Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• Power Windows
• Power Door Locks
• Cruise Control
• A/C
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Passenger Air Bag On/Off Switch
• Driver Restriction Features
• Tire Pressure Monitor

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 7050
• Curb Weight - Front (lbs): 3814
• Curb Weight - Rear (lbs): 2894
• Gross Vehicle Weight Rating Cap (lbs): 11000
• Gross Vehicle Weight Rating Cap (lbs): 10000
• Gross Combined Wt Rating (lbs): 21100
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13900
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1390
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 13900
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3475
• Maximum Trailering Capacity (lbs): 22900
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 7050
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 7050
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 51.00
• Shock Absorber Diameter - Rear (mm): 51.00
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.8 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Tires
• Front Tire Order Code: QWF
• Rear Tire Order Code: QWF
• Spare Tire Order Code: ZWF
• Front Tire Size: LT265/70R18E
• Rear Tire Size: LT265/70R18E
• Spare Tire Size: LT265/70R18E
• Front Tire Capacity (lbs): 4800
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): 7050
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Wheels
• Front Wheel Size (in): 18 x 8.0
• Rear Wheel Size (in): 18 x 8.0
• Spare Wheel Size (in): 18 x 8.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: 16.00
• Steering Ratio (:1), At Lock: N/A
• Turning Diameter - Curb to Curb (ft): 53.1
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 158.10
• Length, Overall w/o rear bumper (in): 248.9
• Width, Max w/o mirrors (in): 80.51
• Height, Overall (in): 77.95
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 116.9
• Cab to Axle (in): 55.24
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 39.88
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.78
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.76
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 51.02
• Cargo Box (Area) Height (in): 21.22
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 76.3
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.28
• Front Shoulder Room (in): 64.84
• Front Hip Room (in): 60.75
• Second Head Room (in): 38.66
• Second Leg Room (in): 34.65
• Second Shoulder Room (in): 64.33
• Second Hip Room (in): 60.24
• Summary

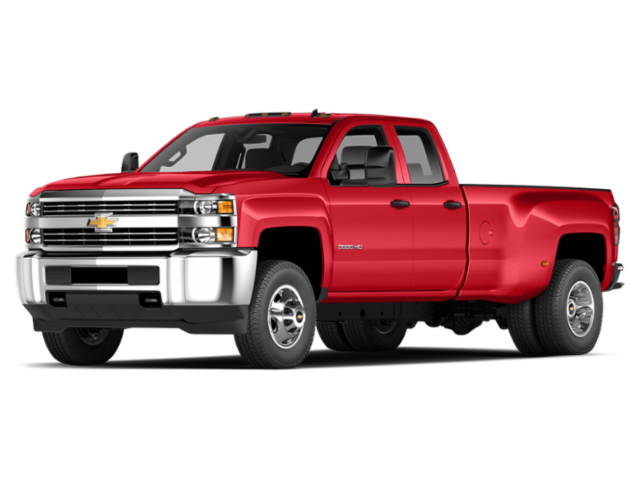

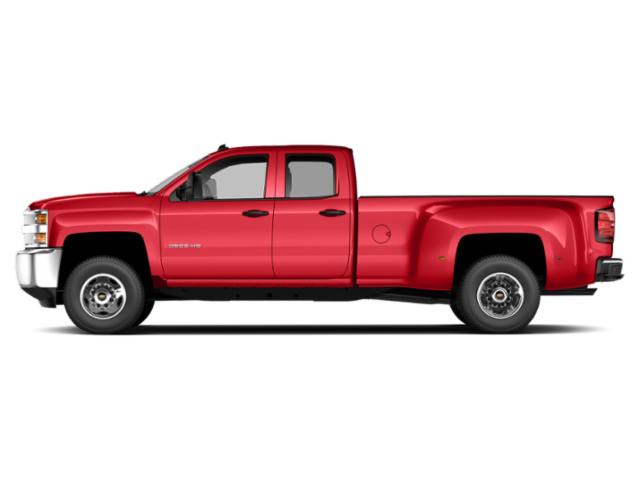

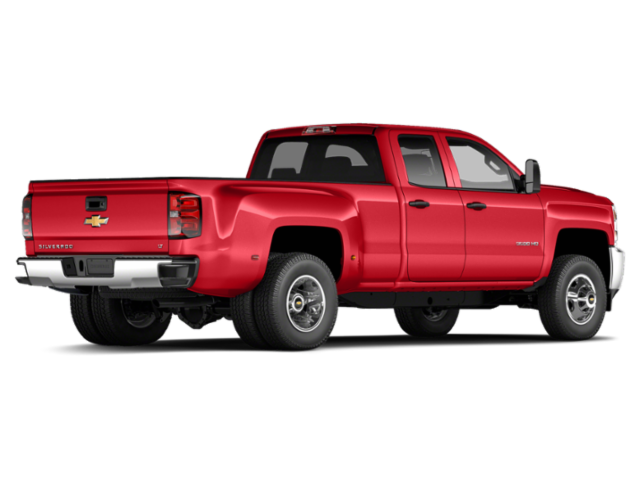

• Vehicle Name: Chevrolet Silverado 3500HD
• Body Style: Double Cab Pickup
• Body Code: E63
