• 6-speaker audio system (Standard on Crew Cab and Double Cab models and Included and only available on Regular Cab models with (IOB) 7" diagonal color touch screen display radio with Chevrolet MyLink.)
• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars

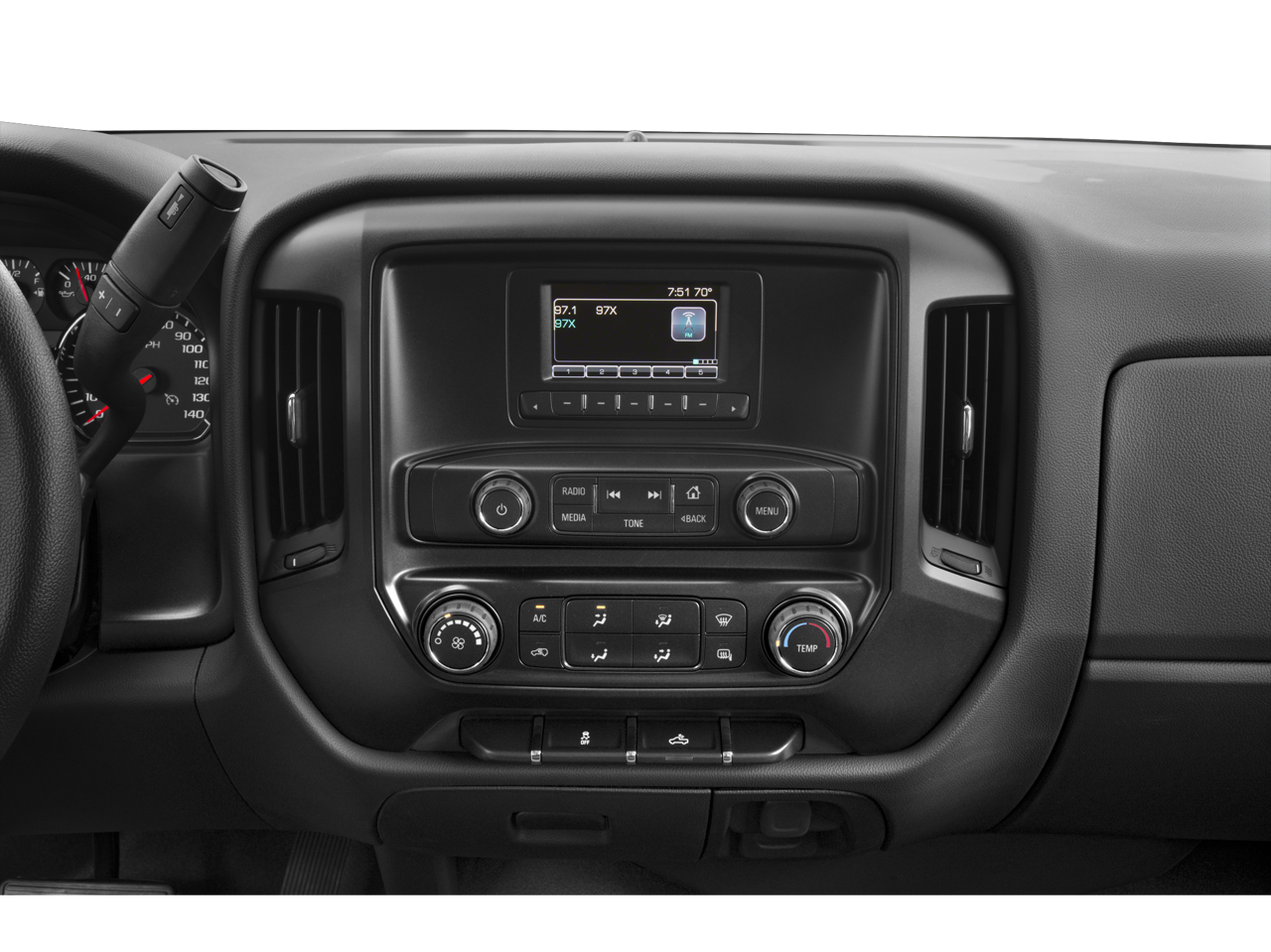

• Audio system, 4.2" diagonal color display, AM/FM stereo with USB port and auxiliary jack (Upgradeable to (IOB) 7" diagonal color display radio with Chevrolet MyLink.) (Not available with (AZ3) 40/20/40 split-bench seat. Upgradeable to (IOB) 7" diagonal color display radio with Chevrolet MyLink.)
• Cruise control, steering wheel-mounted
• Door locks, power
• Driver Information Center 3.5-inch diagonal monochromatic display, provides warning messages and basic vehicle information
• Floor covering, Graphite-colored rubberized-vinyl

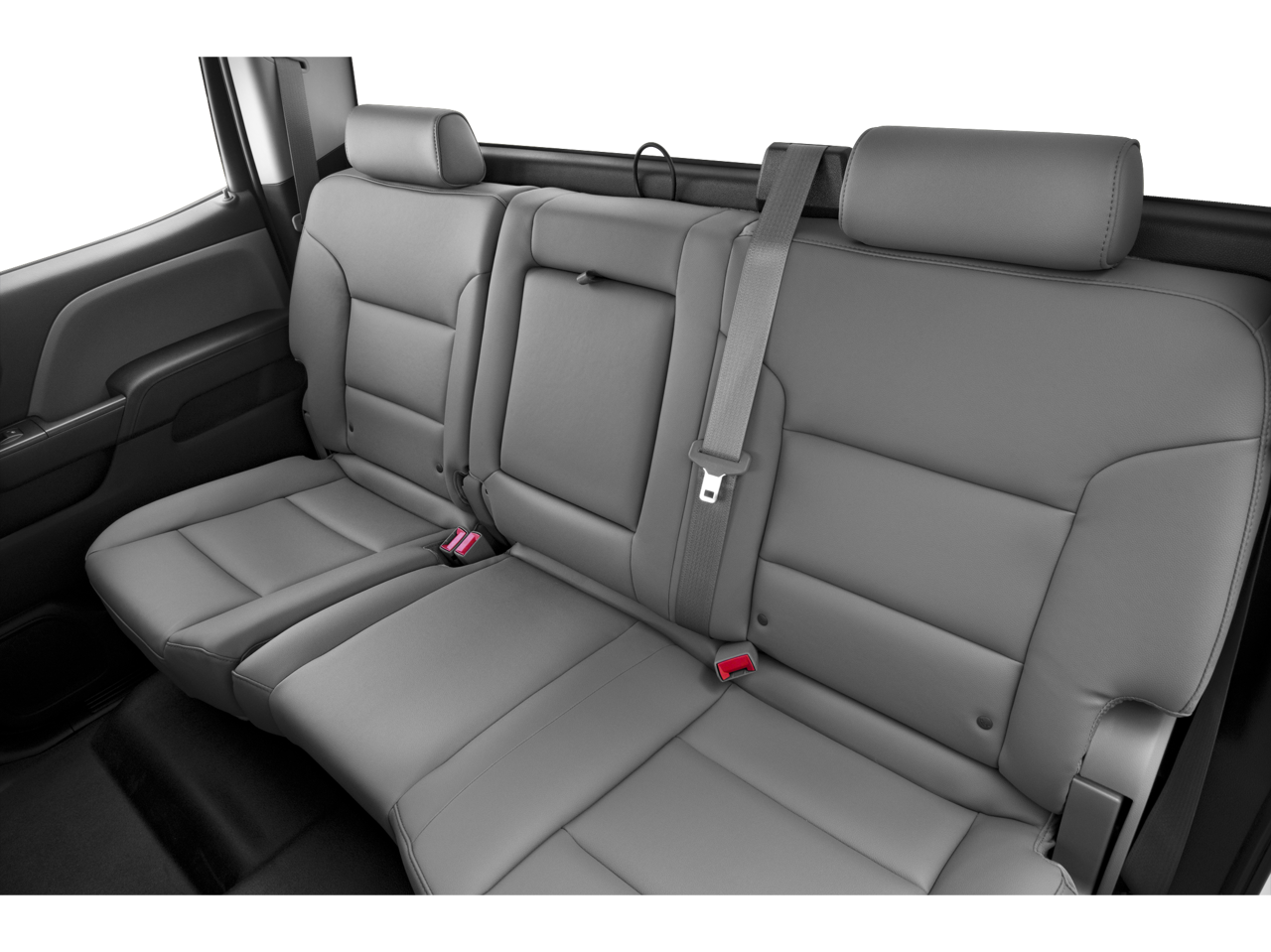

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor) (Requires Crew Cab models.)

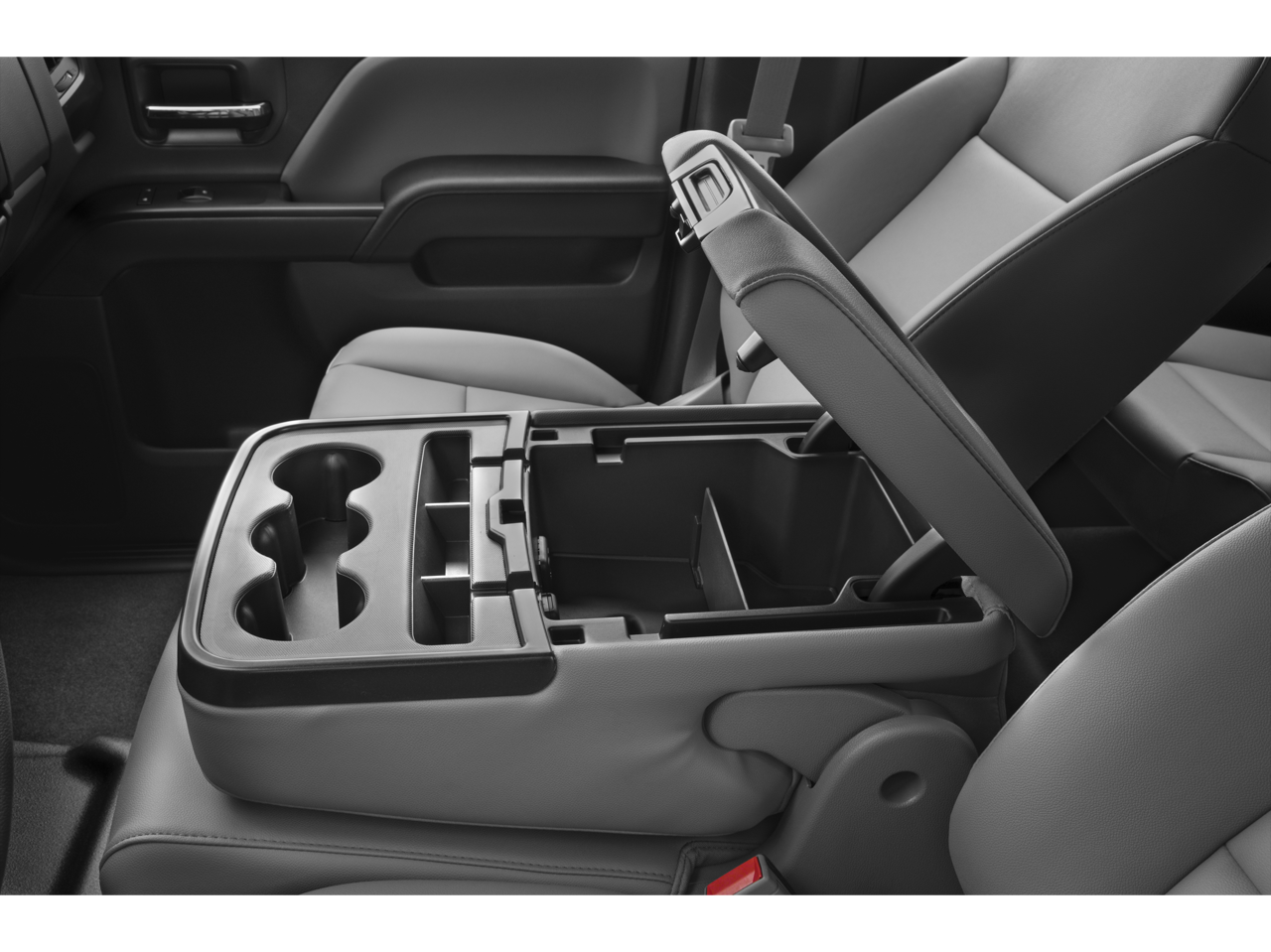

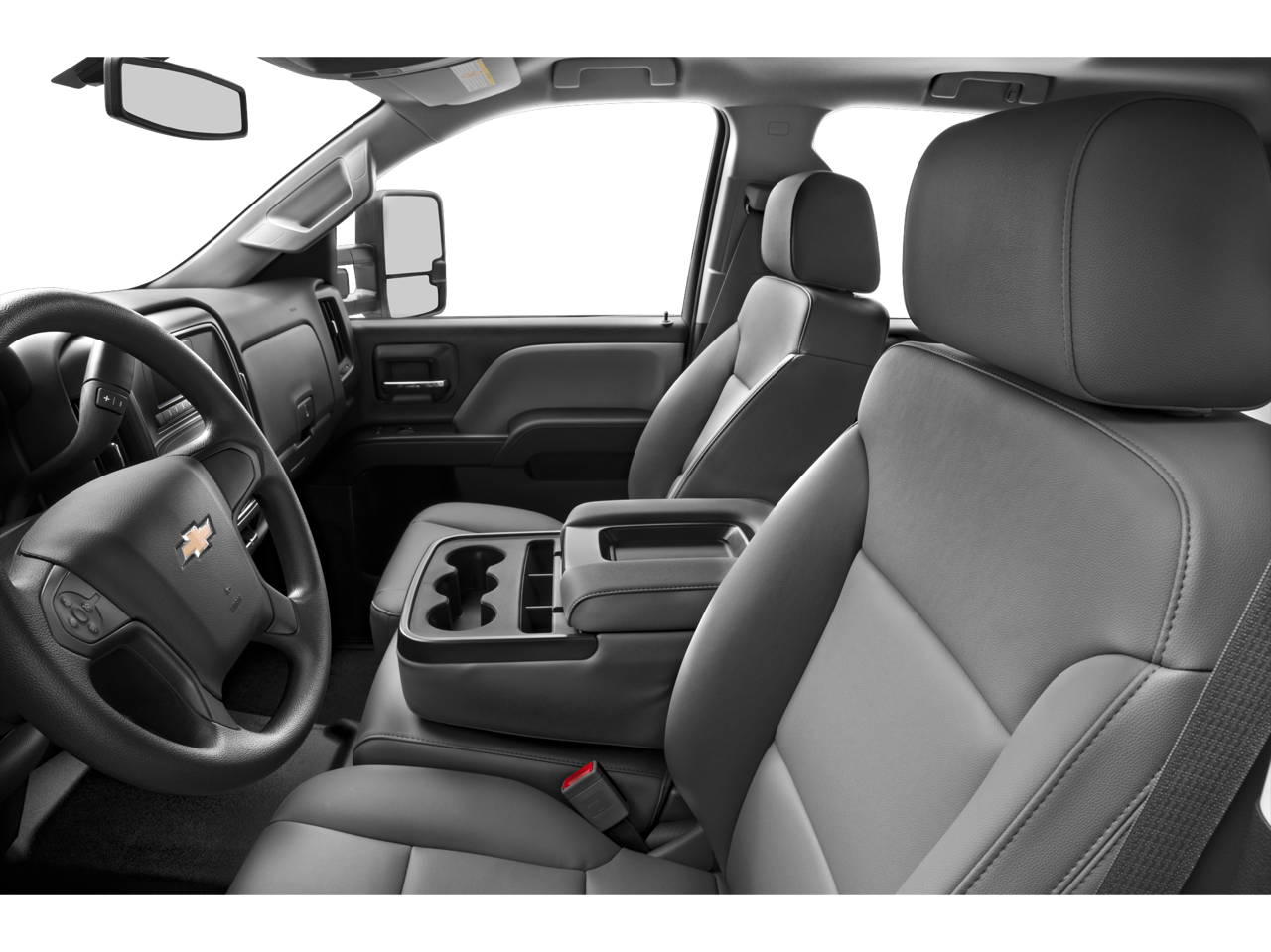

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (Upgradeable to (AZ3) front 40/20/40 split-bench seat.)
• Steering column, manual Tilt-Wheel
• Steering wheel
• Windows, power with driver express up and down and express down on all other windows

• Air cleaner, high-capacity
• Alternator, 150 amps
• Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc with DuraLife brake rotors (Requires single rear wheels.)
• Chassis, single rear wheel
• Differential, heavy-duty locking rear
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, fully-boxed, hydroformed front section
• Pickup box
• Recovery hooks, front, frame-mounted, black
• Steering, Recirculating ball with smart flow power steering system
• Suspension Package, Standard includes 51mm twin tube shock absorbers and 33mm front stabilizer bar
• Trailer brake controller, integrated (If (ZW9) pickup box delete or (9J4) rear bumper delete is ordered (JL1) trailer brake controller is deleted and available to order as a free flow option.)
• Trailering equipment Trailering hitch platform 2.5" with a 2.0" insert for HD, 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector to hook up parking lamps, backup lamps, right and left turn signals, an electric brake lead, battery and a ground, The trailer connector also includes the 4-way for use on trailers without brakes - park, brake/turn lamps (Will be deleted if (ZW9) pickup box delete or (9J4) rear bumper delete is ordered.)
• Transfer case, with floor-mounted shifter (Included with 4WD models only.)

• Daytime Running Lamps with automatic exterior lamp control
• OnStar, delete also deletes driver information center compass.
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Teen Driver mode a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to encourage safe driving behavior. It can limit certain vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report gives you information on your teen's driving habits and helps you to continue to coach your new driver

BRAKES, 4-WHEEL ANTILOCK, 4-WHEEL DISC WITH DUAL REAR WHEELS

• with DuraLife brake rotors

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

SUSPENSION PACKAGE, STANDARD

• includes 51mm twin tube shock absorbers and 33mm front stabilizer bar (STD)

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)

WHEEL, 17" X 6.5" (43.2 CM X 16.5 CM) FULL-SIZE, STEEL SPARE.

• Spare not included with (ZW9) pickup box delete unless a spare tire is ordered.

PICKUP BOX

• (STD)

WHEELS, 17" (43.2 CM) PAINTED STEEL

• includes 17" steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered.

UNDERBODY SHIELD, FRAME-MOUNTED SHIELDS

• includes front underbody shield starting behind front bumper and running to first cross-member
• protecting front underbody
• oil pan
• differential case and transfer case

• SUMMIT WHITE
• TRAILER BRAKE CONTROLLER INTEGRATED
• REAR AXLE 4.10 RATIO
• LICENSE PLATE KIT FRONT
• BRAKES 4-WHEEL ANTILOCK 4-WHEEL DISC WITH DUAL REAR WHEELS with DuraLife brake rotors
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• WHEEL TRIM PAINTED TRIM SKINS AND PAINTED CENTER CAPS
• TIRE SPARE LT235/80R17E HIGHWAY
• AUDIO SYSTEM CHEVROLET MYLINK RADIO WITH 7" DIAGONAL COLOR TOUCH-SCREEN AM/FM STEREO with seek-and-scan and digital clock includes USB ports auxiliary jack Bluetooth® streaming audio for music and most phones (Includes (UQ3) 6-speaker audio system (UE1) OnStar (VV4) OnStar 4G LTE Wi-Fi Hotspot.)

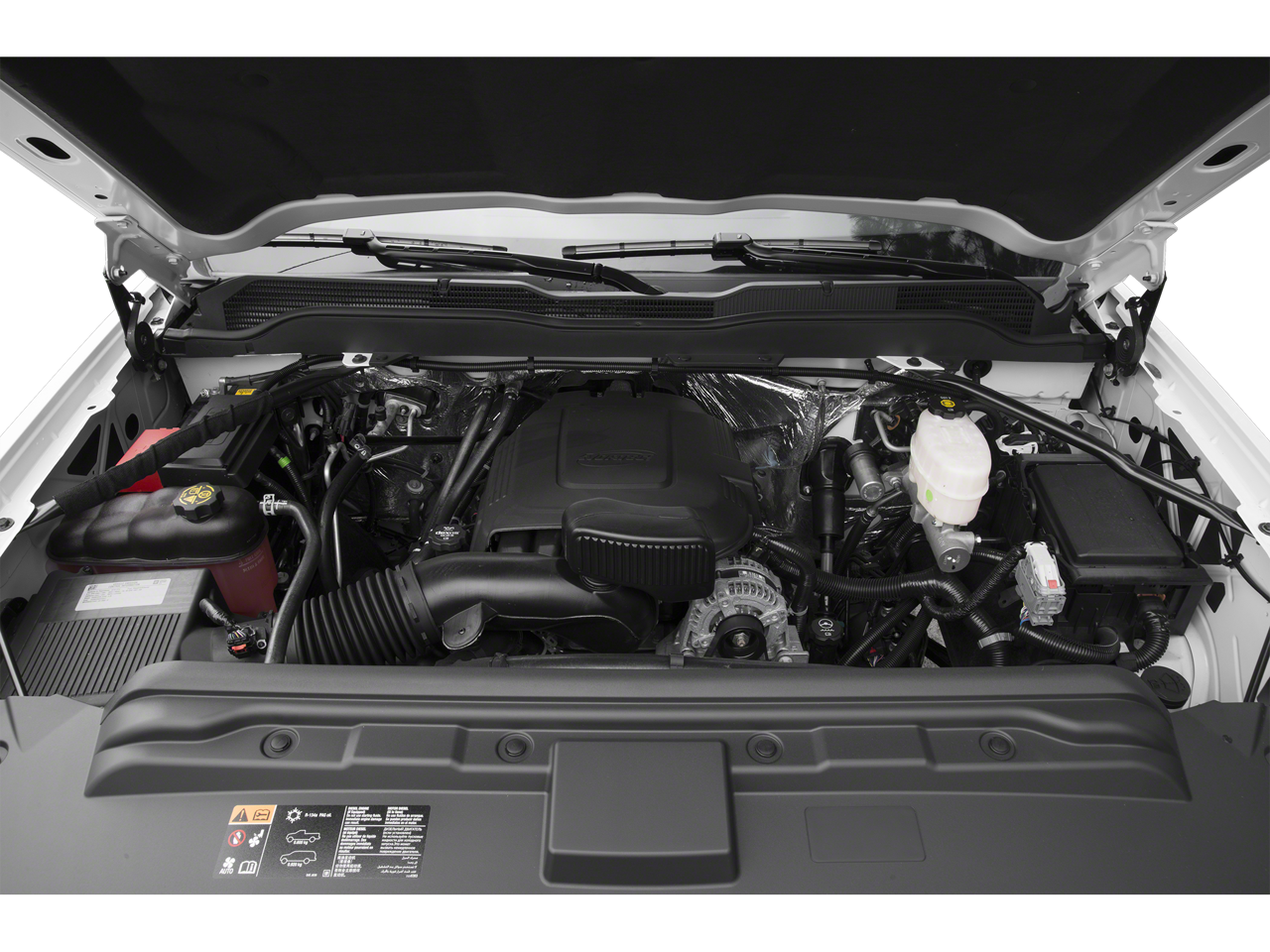

• ENGINE VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE FLEXFUEL capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) (STD)
• SUSPENSION PACKAGE STANDARD includes 51mm twin tube shock absorbers and 33mm front stabilizer bar (STD)
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)
• WHEEL 17" X 6.5" (43.2 CM X 16.5 CM) FULL-SIZE STEEL SPARE. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered.
• PICKUP BOX (STD)
• PAINT SOLID
• TIRES LT235/80R17E ALL-SEASON HIGHWAY
• DARK ASH WITH JET BLACK INTERIOR ACCENTS CLOTH SEAT TRIM
• REAR VISION CAMERA
• LAMPS SMOKED AMBER ROOF MARKER
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER RECLINE with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
• GVWR 13 025 LBS. (5908 KG) WITH DUAL REAR WHEELS
• WHEELS 17" (43.2 CM) PAINTED STEEL includes 17" steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered.
• UNDERBODY SHIELD FRAME-MOUNTED SHIELDS includes front underbody shield starting behind front bumper and running to first cross-member protecting front underbody oil pan differential case and transfer case
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hitch
• Tow Hooks
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• Split Bench Seat
• Pass-Through Rear Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• Power Windows
• Power Door Locks
• Cruise Control
• A/C
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Driver Restriction Features

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 9375
• Gross Axle Wt Rating - Rear (lbs): 7050
• Curb Weight - Front (lbs): 3934
• Curb Weight - Rear (lbs): 2967
• Gross Vehicle Weight Rating Cap (lbs): 13025
• Gross Vehicle Weight Rating Cap (lbs): 11000
• Gross Combined Wt Rating (lbs): 21100
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13400
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1340
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1370
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 13300
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 13300
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3325
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3425
• Maximum Trailering Capacity (lbs): 22700
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 9375
• Spring Capacity - Rear (lbs): 7050
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 9375
• Axle Capacity - Rear (lbs): 7050
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 51.00
• Shock Absorber Diameter - Rear (mm): 51.00
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.98 X 1.57
• Front Brake Rotor Diam x Thickness (in): 13.8 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 13.98 X 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Tires
• Front Tire Order Code: QQO
• Front Tire Order Code: QWF
• Rear Tire Order Code: QQO
• Rear Tire Order Code: QWF
• Spare Tire Order Code: ZQO
• Front Tire Size: LT235/80R17E
• Front Tire Size: LT265/70R18E
• Rear Tire Size: LT235/80R17E
• Rear Tire Size: LT265/70R18E
• Spare Tire Size: LT235/80R17E
• Front Tire Capacity (lbs): 4800
• Rear Tire Capacity (lbs): 9375
• Rear Tire Capacity (lbs): 7050
• Spare Tire Capacity (lbs): - TBD -
• Wheels
• Front Wheel Size (in): 17 x 6.5
• Front Wheel Size (in): 18 x 8.0
• Rear Wheel Size (in): 17 x 6.5
• Rear Wheel Size (in): 18 x 8.0
• Spare Wheel Size (in): 17 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: 16.00
• Steering Ratio (:1), At Lock: N/A
• Turning Diameter - Curb to Curb (ft): 55.7
• Turning Diameter - Curb to Curb (ft): 56.1
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 167.70
• Length, Overall w/o rear bumper (in): 258.4
• Width, Max w/o mirrors (in): 95.98
• Width, Max w/o mirrors (in): 80.51
• Height, Overall (in): 77.76
• Height, Overall (in): 78.07
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 151.10
• Cab to Axle (in): 55.24
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 38.86
• Ground to Top of Load Floor (in): 39.41
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.27
• Ground Clearance, Rear (in): 8.53
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.76
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 51.02
• Cargo Box (Area) Height (in): 21.22
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 76.3
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 64.84
• Front Hip Room (in): 60.73
• Second Head Room (in): 40.50
• Second Leg Room (in): 40.93
• Second Shoulder Room (in): 64.33
• Second Hip Room (in): 60.24
• Summary
• Vehicle Name: Chevrolet Silverado 3500HD
• Body Style: Crew Cab Pickup
• Body Code: E63
