• 6-speaker audio system
• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars

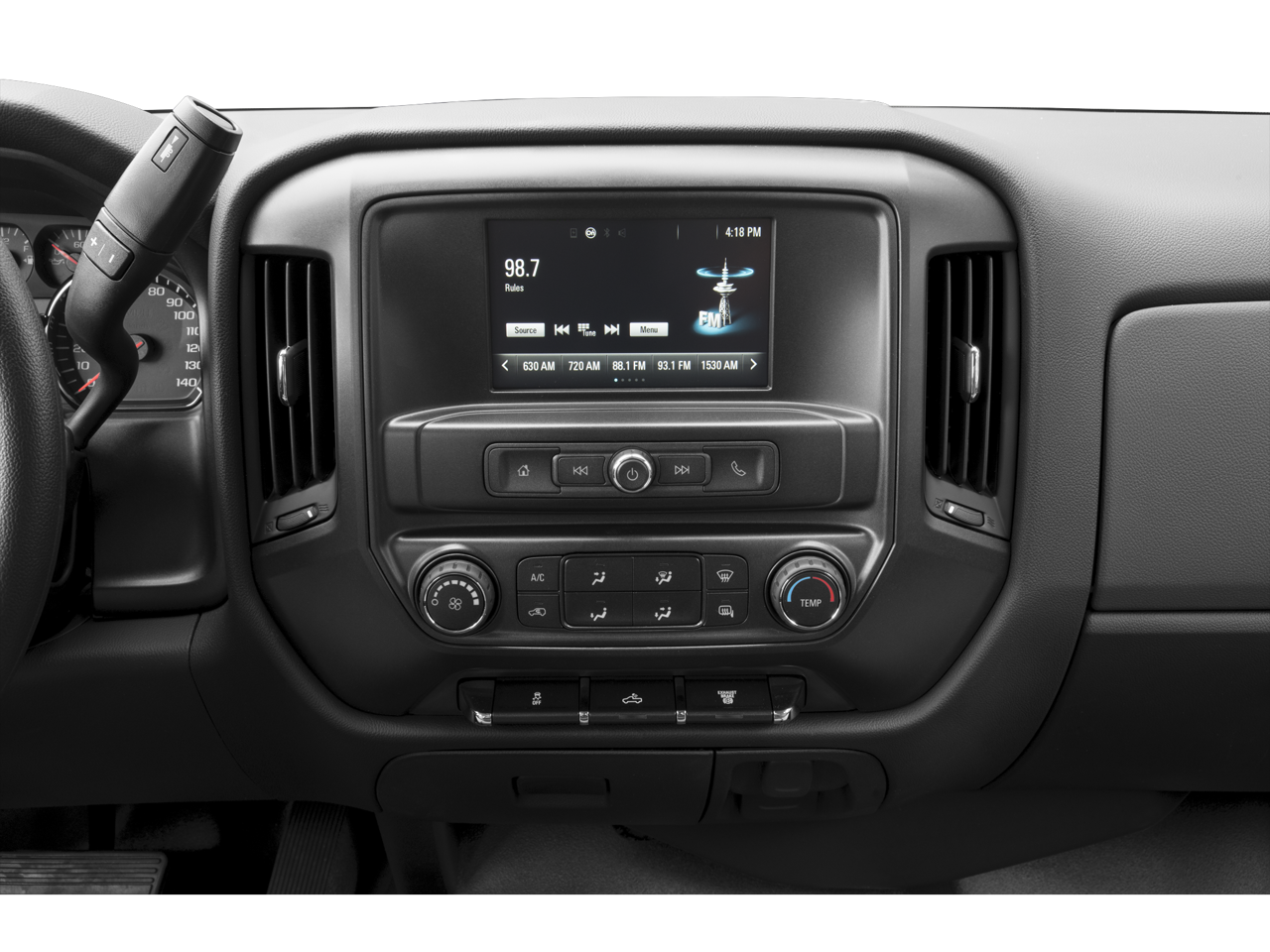

• Audio system, 4.2" Diagonal Color Display, AM/FM stereo with USB ports auxiliary jack and SD card slot (Upgradeable to (IO4) 4.2" diagonal color display radio with Chevrolet MyLink.)
• Cruise control, steering wheel-mounted
• Door locks, power
• Driver Information Center, 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information
• Floor covering, Graphite-colored rubberized-vinyl

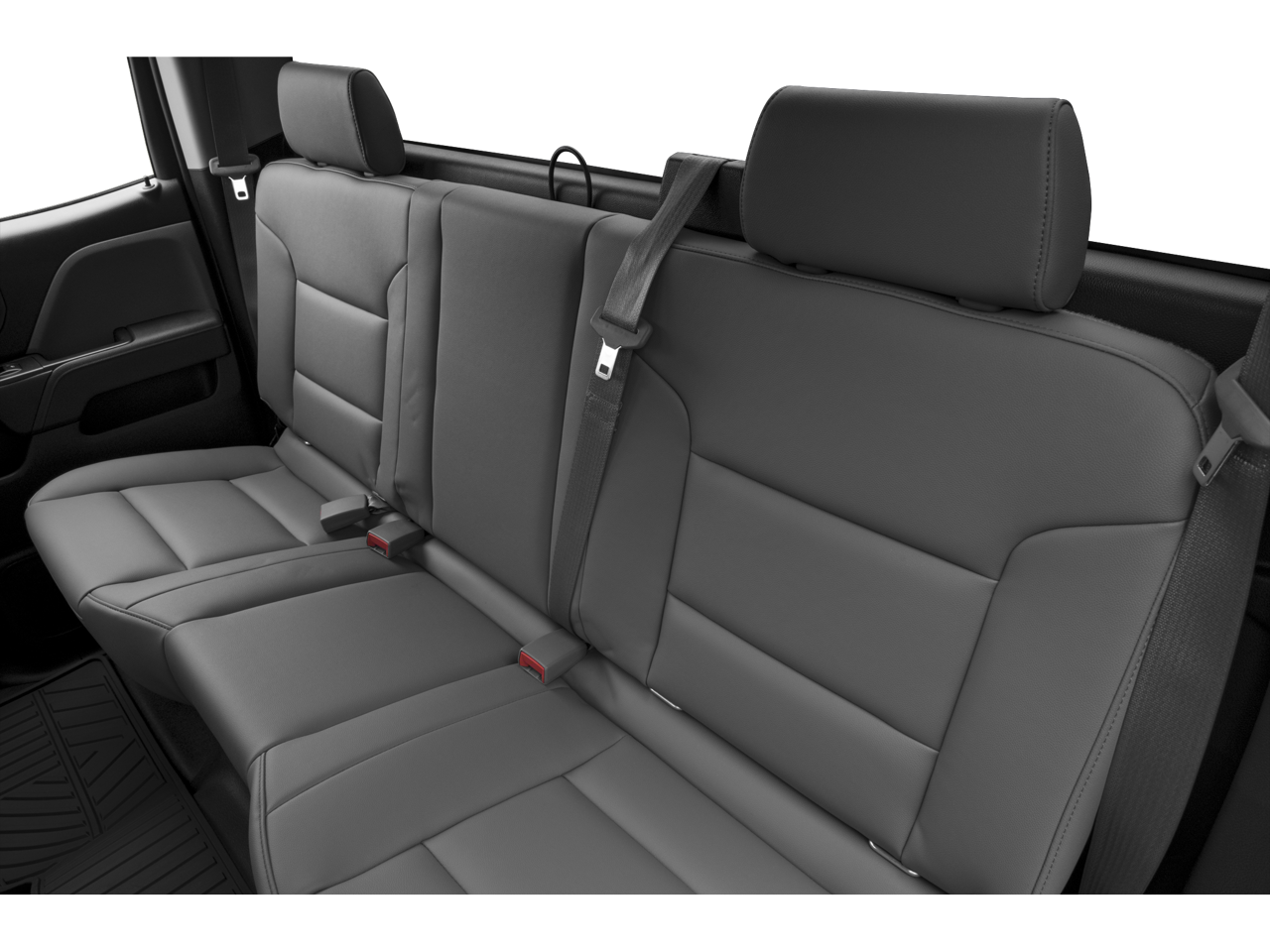

• Seat, rear full-width folding bench, 3-passenger (includes child seat top tether anchor)

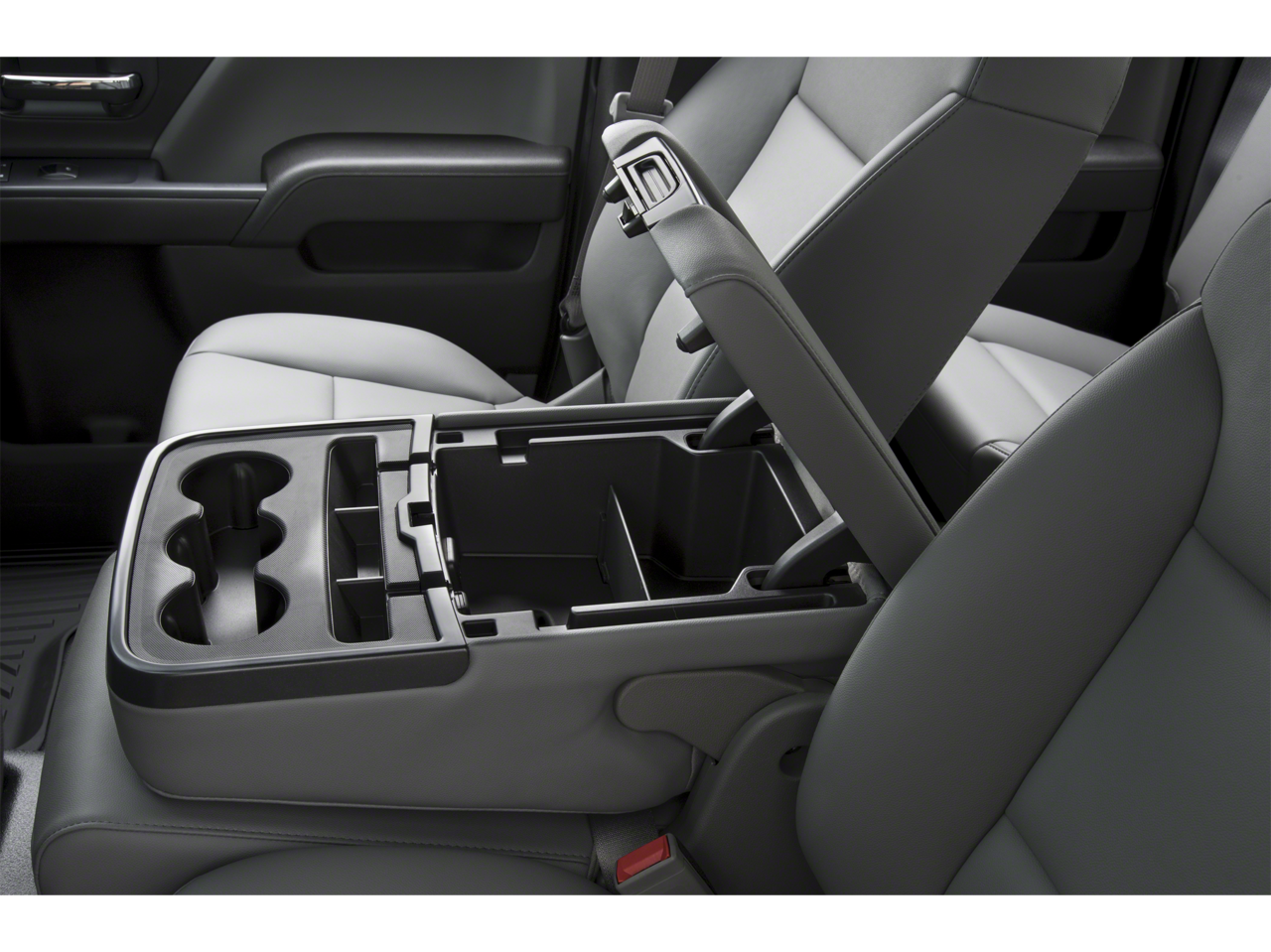

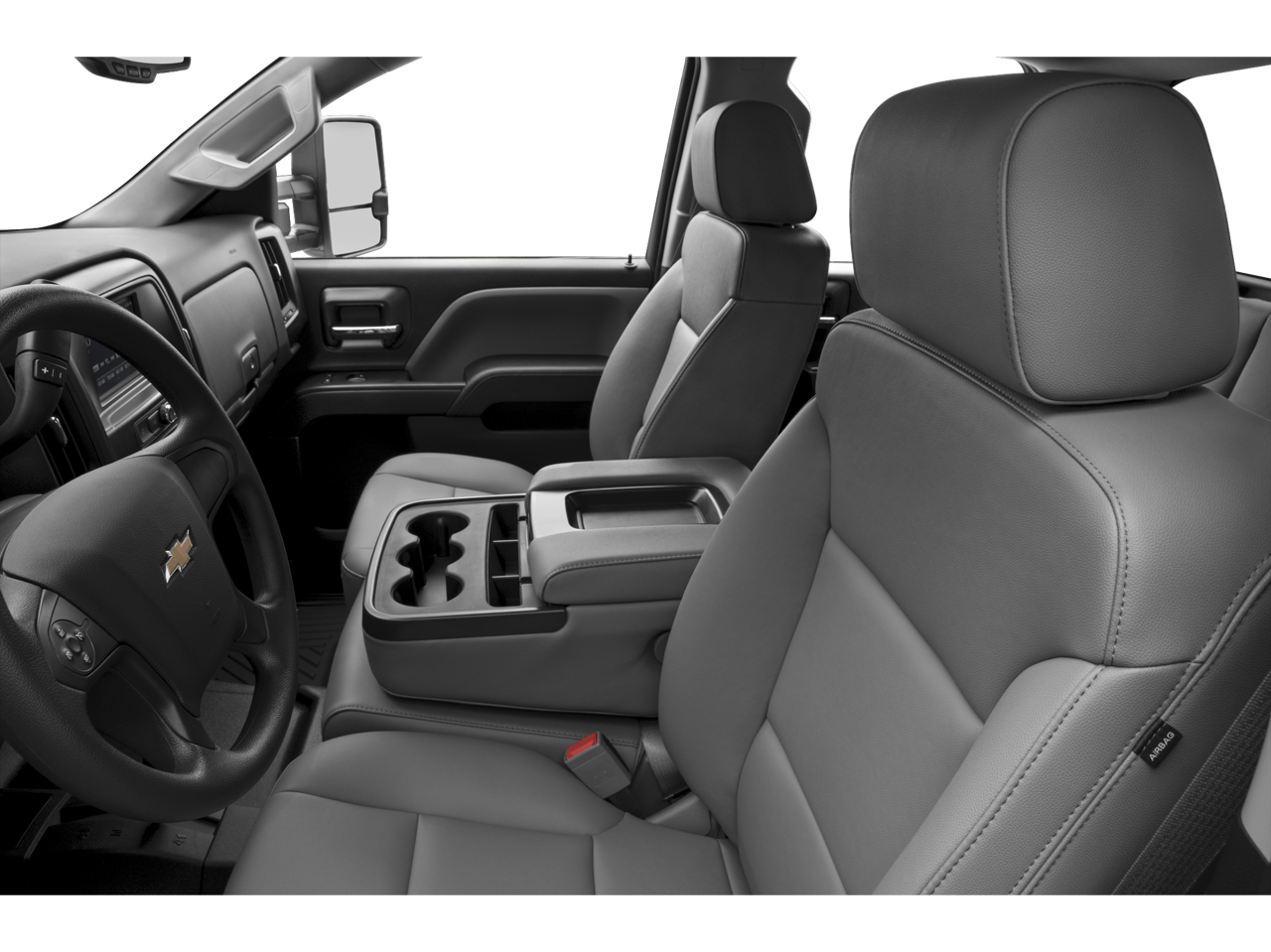

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (Upgradeable to (AZ3) front 40/20/40 split-bench seat.)
• Steering column, manual Tilt-Wheel
• Steering wheel
• Windows, power with driver express up and down and express down on all other windows
• XM Satellite Radio, delete

• Air cleaner, high-capacity
• Alternator, 150 amps
• Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc with DuraLife brake rotors
• Differential, heavy-duty locking rear
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, fully-boxed, hydroformed front section
• Pickup box, Wideside
• Recovery hooks, front, frame-mounted, black
• Steering, Recirculating ball
• Suspension Package, Standard includes 51mm twin tube shock absorbers and 33mm front stabilizer bar
• Transfer case, with floor-mounted shifter (Included with 4WD models only.)

• Air bag deactivation switch, frontal passenger-side
• Air bags, single-stage frontal and thorax side-impact, driver and front passenger, and head curtain side-impact, front and rear outboard seating positions (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime Running Lamps with automatic exterior lamp control
• OnStar, delete also deletes driver information center compass.
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Tire Pressure Monitoring System (does not apply to spare tire)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

SUSPENSION PACKAGE, STANDARD

• includes 51mm twin tube shock absorbers and 33mm front stabilizer bar (STD)

ENGINE, VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE, FLEXFUEL

• capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm
• 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) with (E63) fleetside pickup box; (322 hp [240.1 kW] @ 4400 rpm
• 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) with (ZW9) pickup box delete (STD)

WHEELS, 17" (43.2 CM) STEEL

• includes 17" x 7.5" (43.2 cm x 19.1 cm) steel spare wheel. (STD)

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)

UNDERBODY SHIELD, FRAME-MOUNTED SHIELDS

• includes front underbody shield starting behind front bumper and running to first cross-member
• protecting front underbody
• oil pan
• differential case and transfer case

• SUMMIT WHITE
• CHEVROLET MYLINK AUDIO SYSTEM 4.2 DIAGONAL COLOR SCREEN WITH AM/FM STEREO WITH USB PORTS auxiliary jack SD card slot Bluetooth® streaming audio for music and most phones hands-free smartphone integration Pandora Internet radio and voice-activated technology for radio and phone
• TRAILER BRAKE CONTROLLER INTEGRATED
• REAR AXLE 4.10 RATIO
• LICENSE PLATE KIT FRONT
• 2015 INTERIM PROCESSING CODE
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• TRAILERING EQUIPMENT Trailering hitch platform 2.5 with a 2.0 insert for HD 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector to hook up parking lamps backup lamps right and left turn signals an electric brake lead battery and a ground The trailer connector also includes the 4-way for use on trailers without brakes - park brake/turn lamps Includes (JL1) trailer brake controller.
• GVWR 9500 LBS. (4309 KG)
• SUSPENSION PACKAGE STANDARD includes 51mm twin tube shock absorbers and 33mm front stabilizer bar (STD)
• ENGINE VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE FLEXFUEL capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) with (E63) fleetside pickup box; (322 hp [240.1 kW] @ 4400 rpm 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) with (ZW9) pickup box delete (STD)
• WHEELS 17 (43.2 CM) STEEL includes 17 x 7.5 (43.2 cm x 19.1 cm) steel spare wheel. (STD)
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)
• PAINT SOLID
• DARK ASH WITH JET BLACK INTERIOR ACCENTS VINYL SEAT TRIM
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER RECLINE with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
• SINGLE-SLOT CD/MP3 PLAYER
• UNDERBODY SHIELD FRAME-MOUNTED SHIELDS includes front underbody shield starting behind front bumper and running to first cross-member protecting front underbody oil pan differential case and transfer case
• TIRES LT265/70R17E ALL-TERRAIN BLACKWALL
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hooks
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• AM/FM Stereo
• MP3 Capability
• Bluetooth® Connection
• Auxiliary Audio Input
• Smart Device Integration
• Split Bench Seat
• Pass-Through Rear Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• Power Windows
• Power Door Locks
• Cruise Control
• A/C
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag On/Off Switch
• Tire Pressure Monitor

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): 16.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 6200
• Curb Weight - Front (lbs): 3685
• Curb Weight - Rear (lbs): 2670
• Gross Vehicle Weight Rating Cap (lbs): 9500
• Gross Combined Wt Rating (lbs): 20500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1300
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 14200
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3550
• Maximum Trailering Capacity (lbs): 13000
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4400
• Spring Capacity - Rear (lbs): 6200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi Floating
• Axle Capacity - Front (lbs): 4400
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 51.0
• Shock Absorber Diameter - Rear (mm): 51.0
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.98 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Tires
• Front Tire Order Code: QXT
• Front Tire Order Code: QHQ
• Rear Tire Order Code: QXT
• Rear Tire Order Code: QHQ
• Front Tire Size: LT265/70R17E
• Front Tire Size: LT245/75R17E
• Rear Tire Size: LT265/70R17E
• Rear Tire Size: LT245/75R17E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 49.2
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 144.20
• Length, Overall w/o rear bumper (in): 230.00
• Width, Max w/o mirrors (in): 80.51
• Height, Overall (in): 78.11
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 141.60
• Cab to Axle (in): 41.26
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.53
• Ground Clearance, Rear (in): 9.53
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.86
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 64.9
• Cargo Box Width @ Wheelhousings (in): 51.02
• Cargo Box (Area) Height (in): 21.10
• Tailgate Width (in): 62.2
• Cargo Volume (ft³): 61.0
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 64.84
• Front Hip Room (in): 60.73
• Second Head Room (in): 38.67
• Second Leg Room (in): 34.63
• Second Shoulder Room (in): 64.33
• Second Hip Room (in): 60.23
• Summary

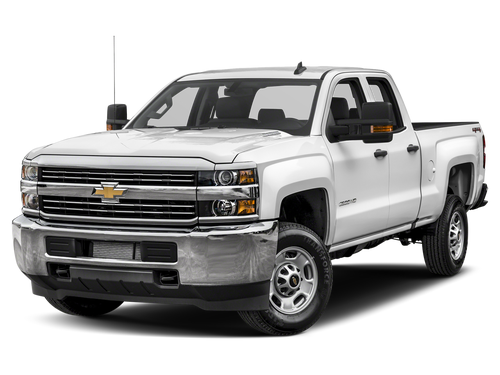

• Vehicle Name: Chevrolet Silverado 2500HD Built After Aug 14
• Body Style: Double Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
