• 11.5" day/night rearview mirror
• AM/FM stereo -inc: digital clock, (2) speakers
• Auxiliary pwr point
• Black vinyl full floor covering
• Black vinyl steering wheel

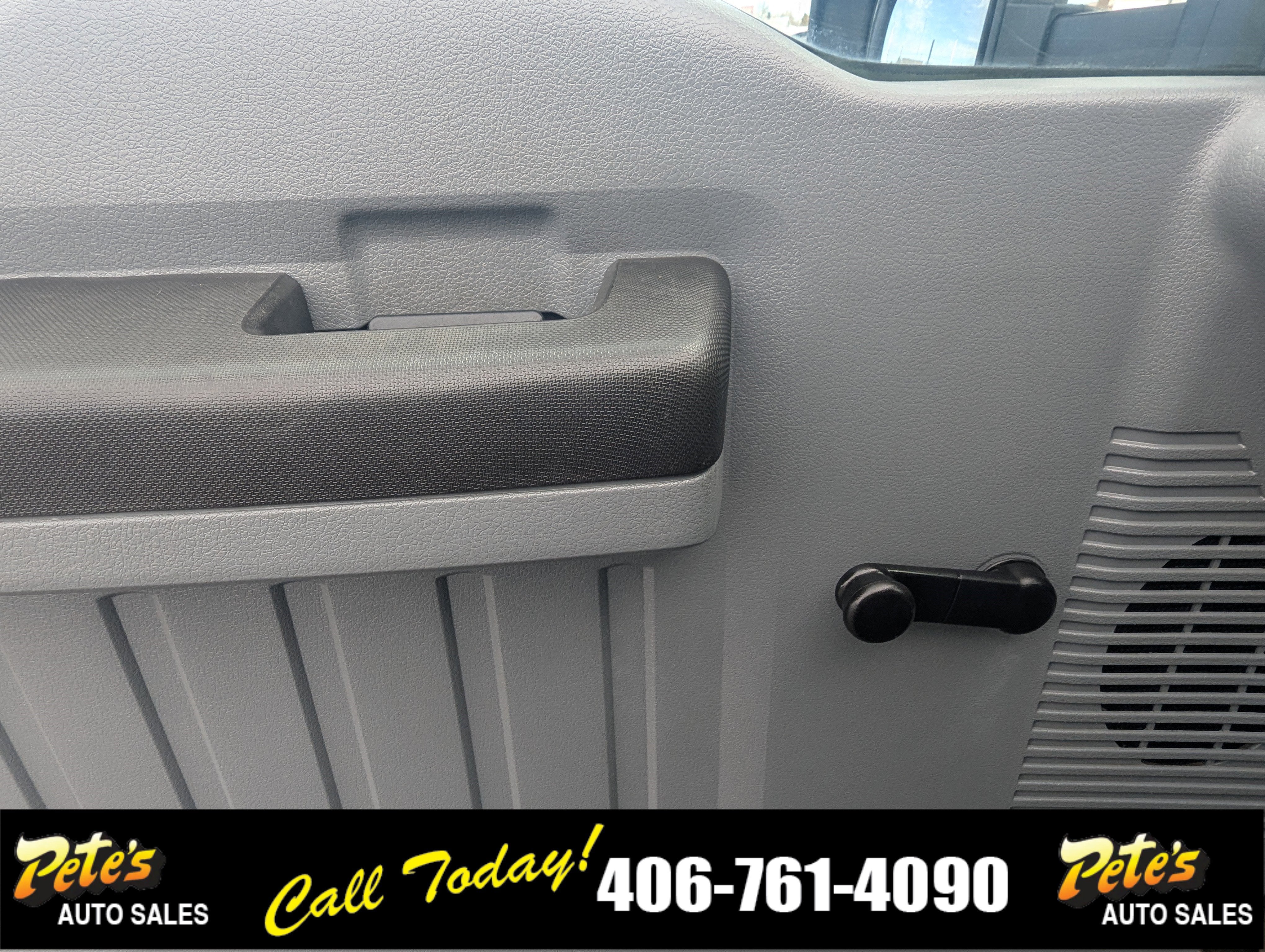

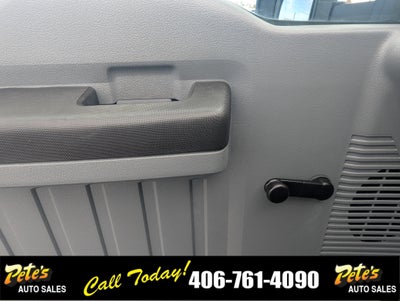

• Color-coordinated door trim panel -inc: armrest, grab handle, reflector

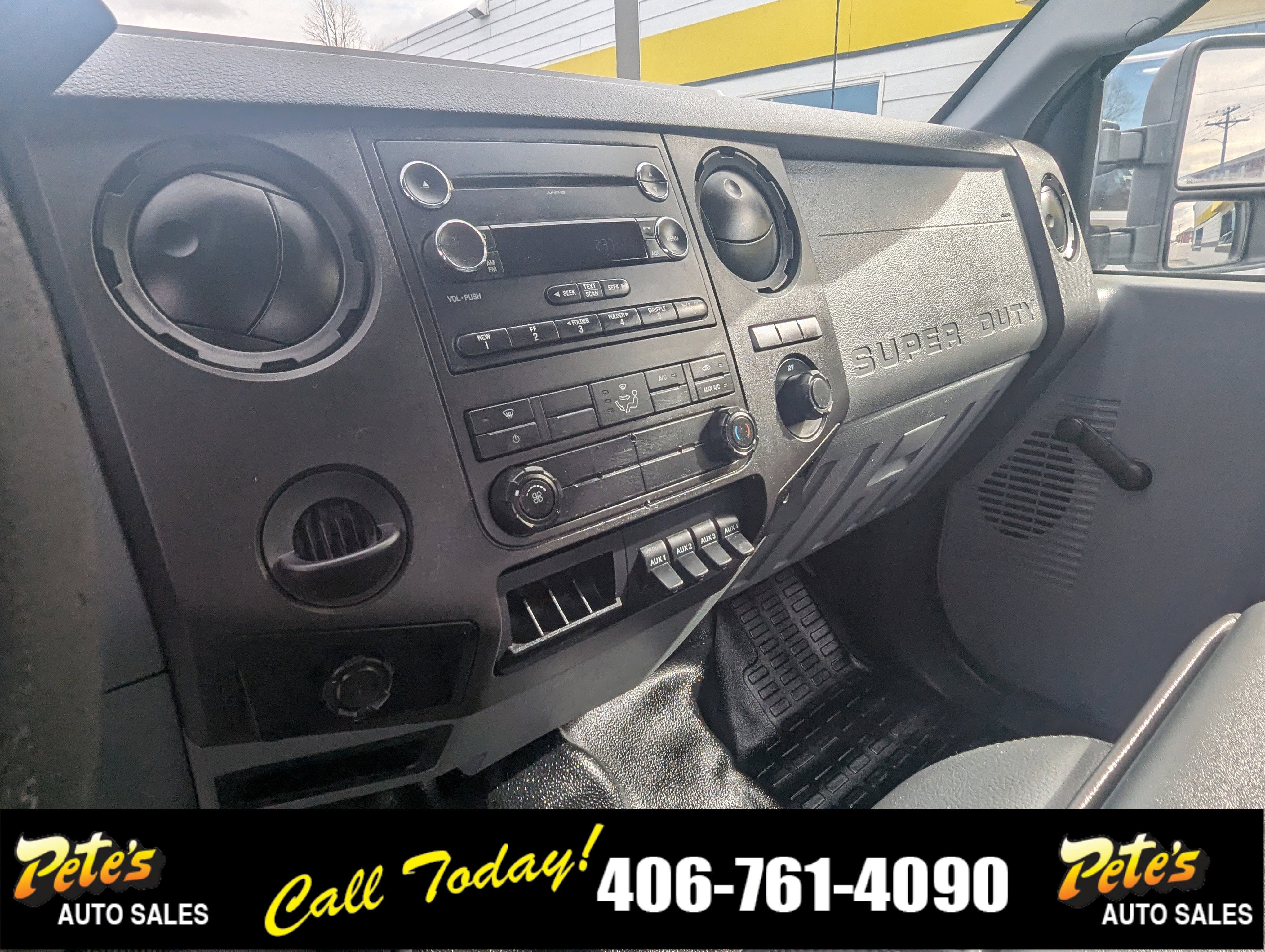

• Color-coordinated instrument panel -inc: glove box, (4) air registers w/positive shutoff, pwr point & (4) upfitter switches
• Color-coordinated molded cloth headliner
• Color-coordinated scuff plates
• Color-coordinated vinyl sun visors -inc: LH pocket, RH insert
• Dash-top tray
• Door activated dome lamp w/delay, I/P switch operation
• Dual color-coordinated coat hooks
• Dual front grab handles
• Front/rear dual map lights
• Front/rear passenger roof ride handles

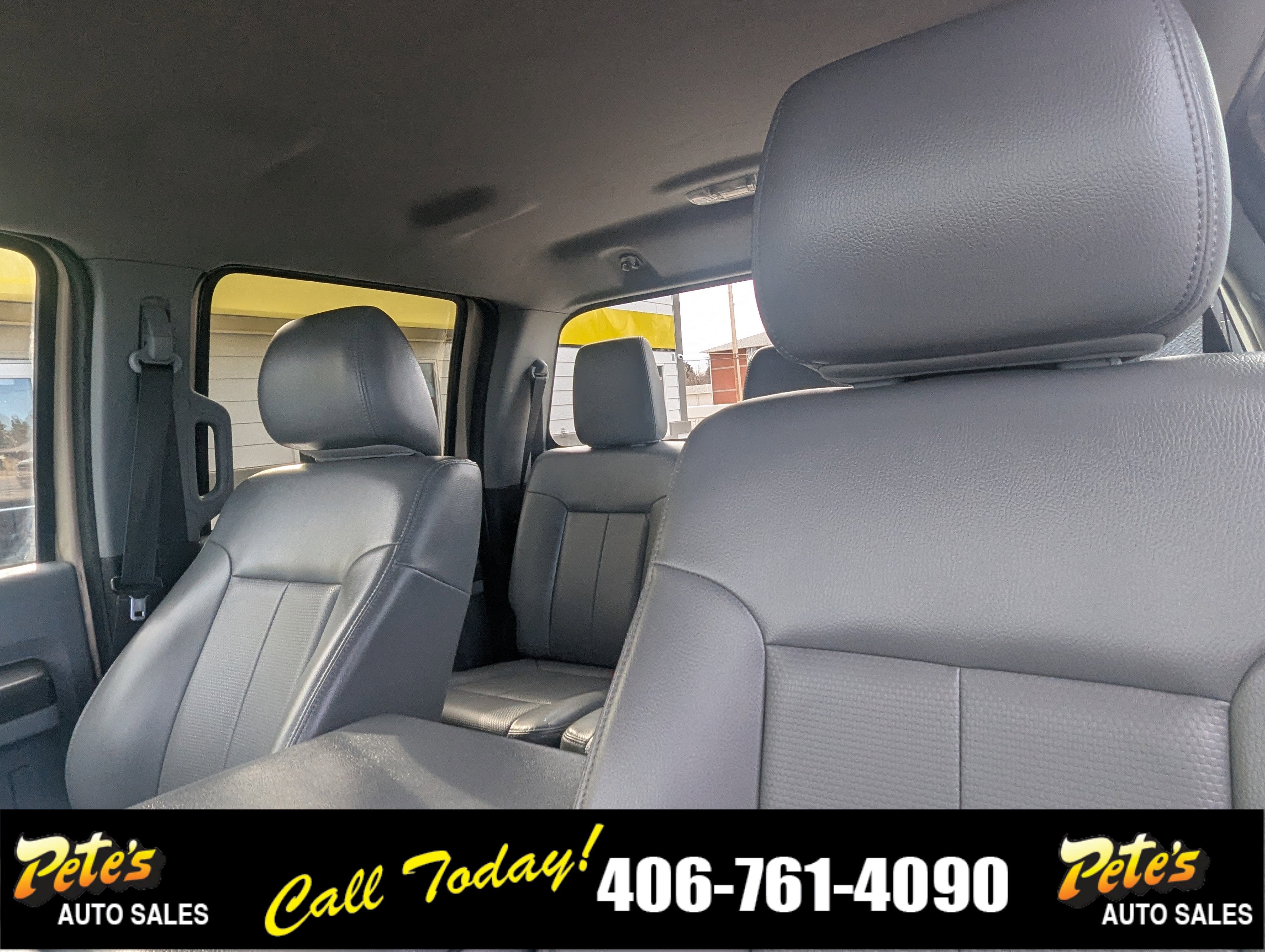

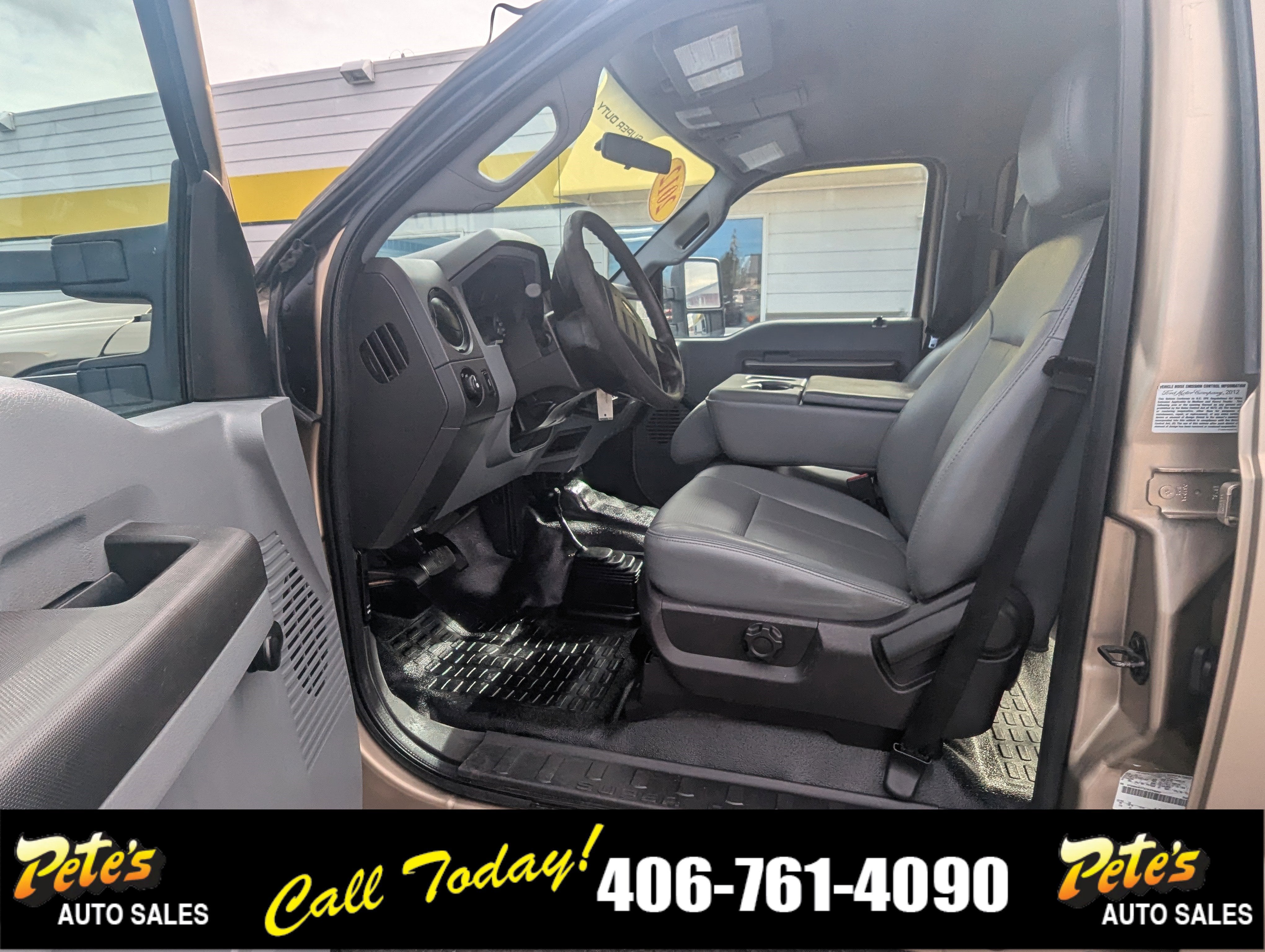

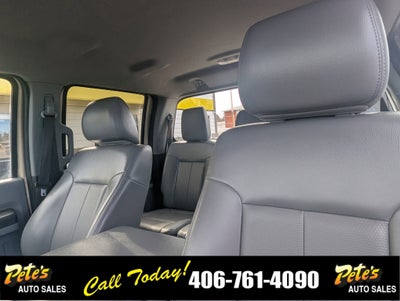

• HD vinyl 40/20/40 split bench seat -inc: center armrest, cup holder, storage
• Inside hood release

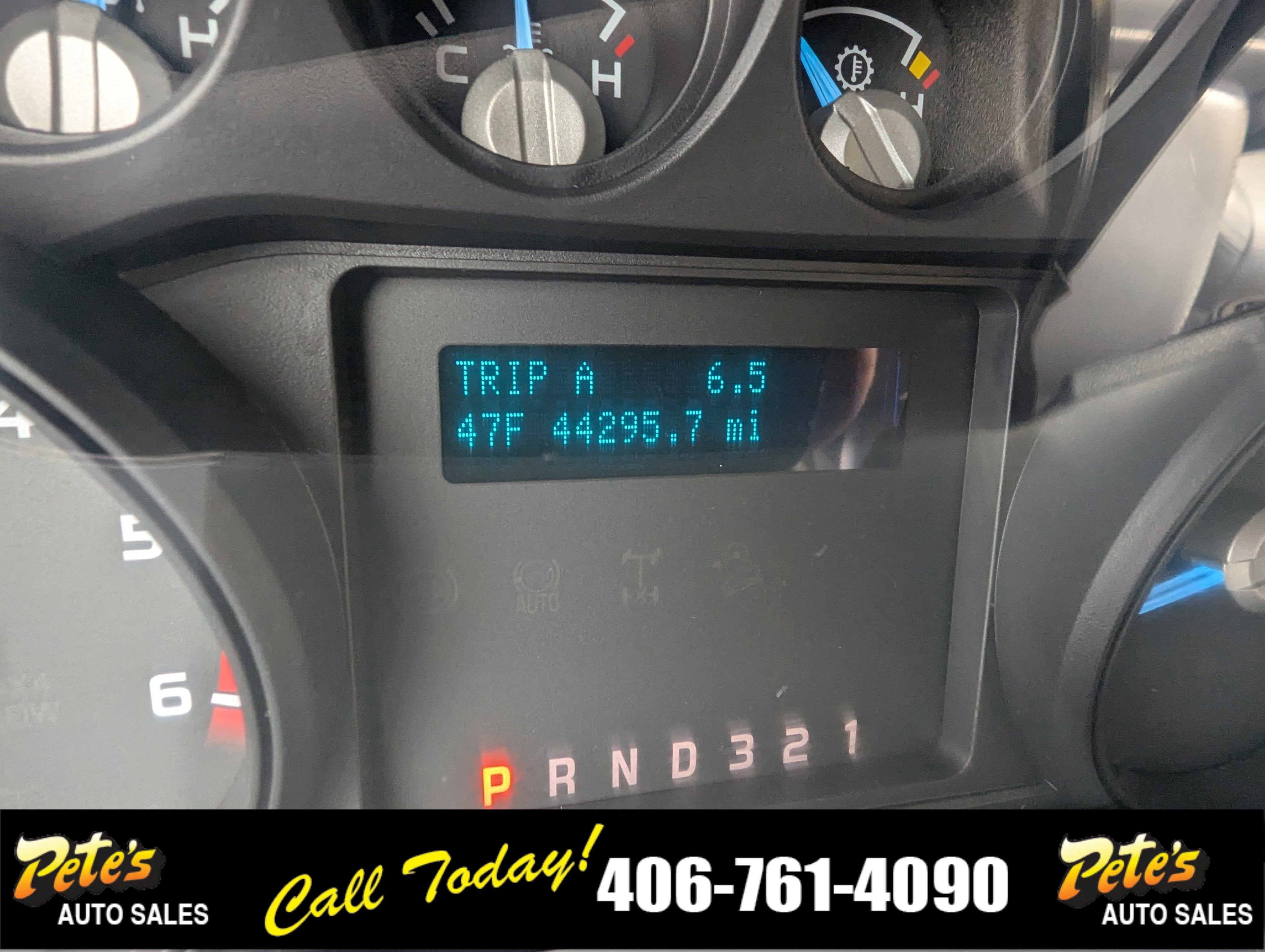

• Instrumentation -inc: multifunction switch message center w/ice blue lighting
• Manual Air Conditioning
• Manual driver lumbar support
• Oil minder system

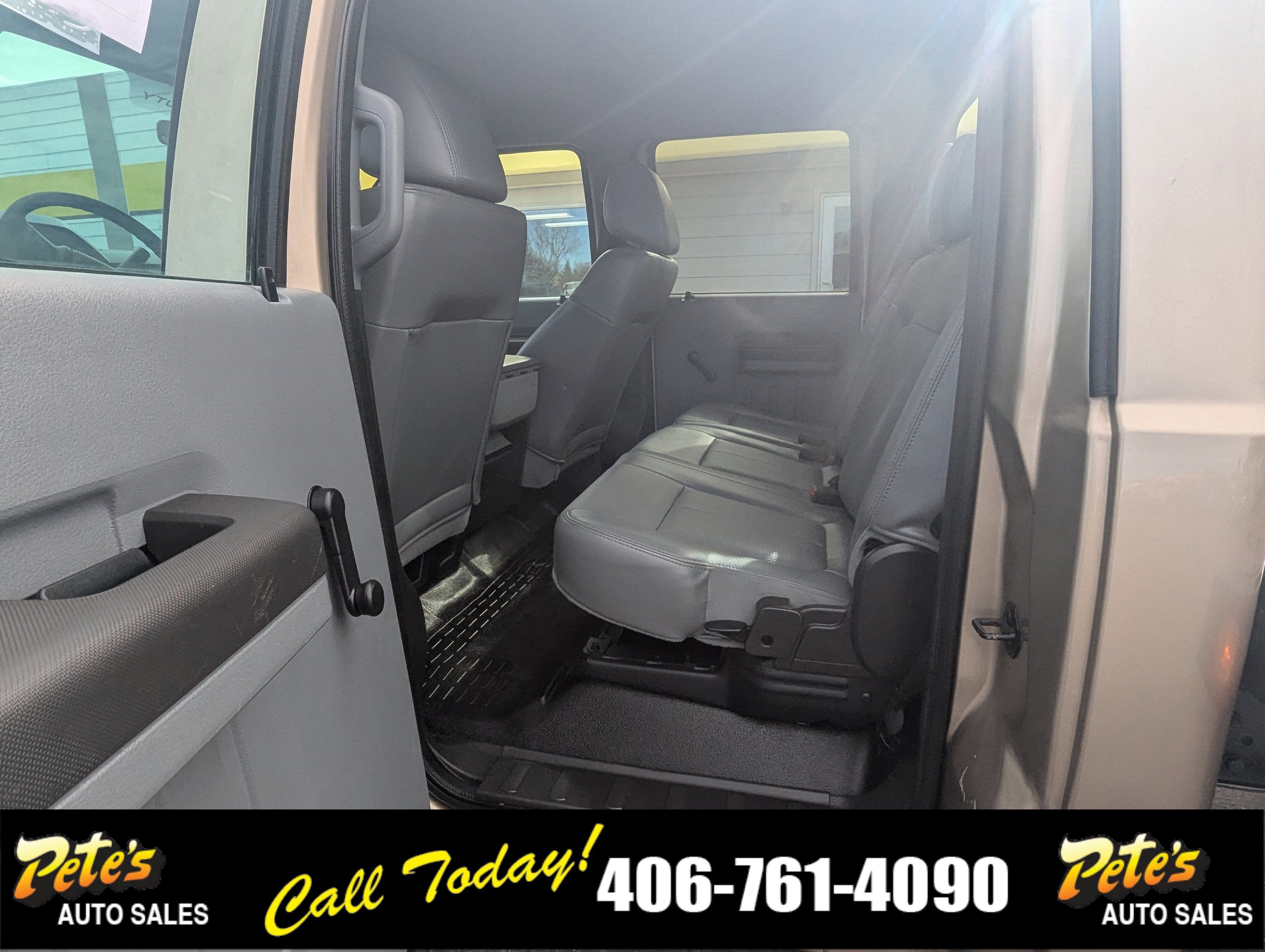

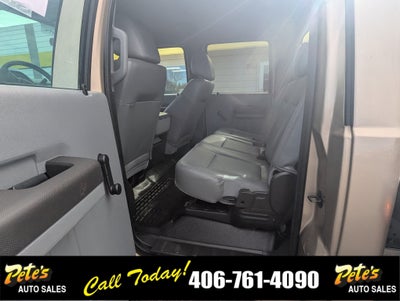

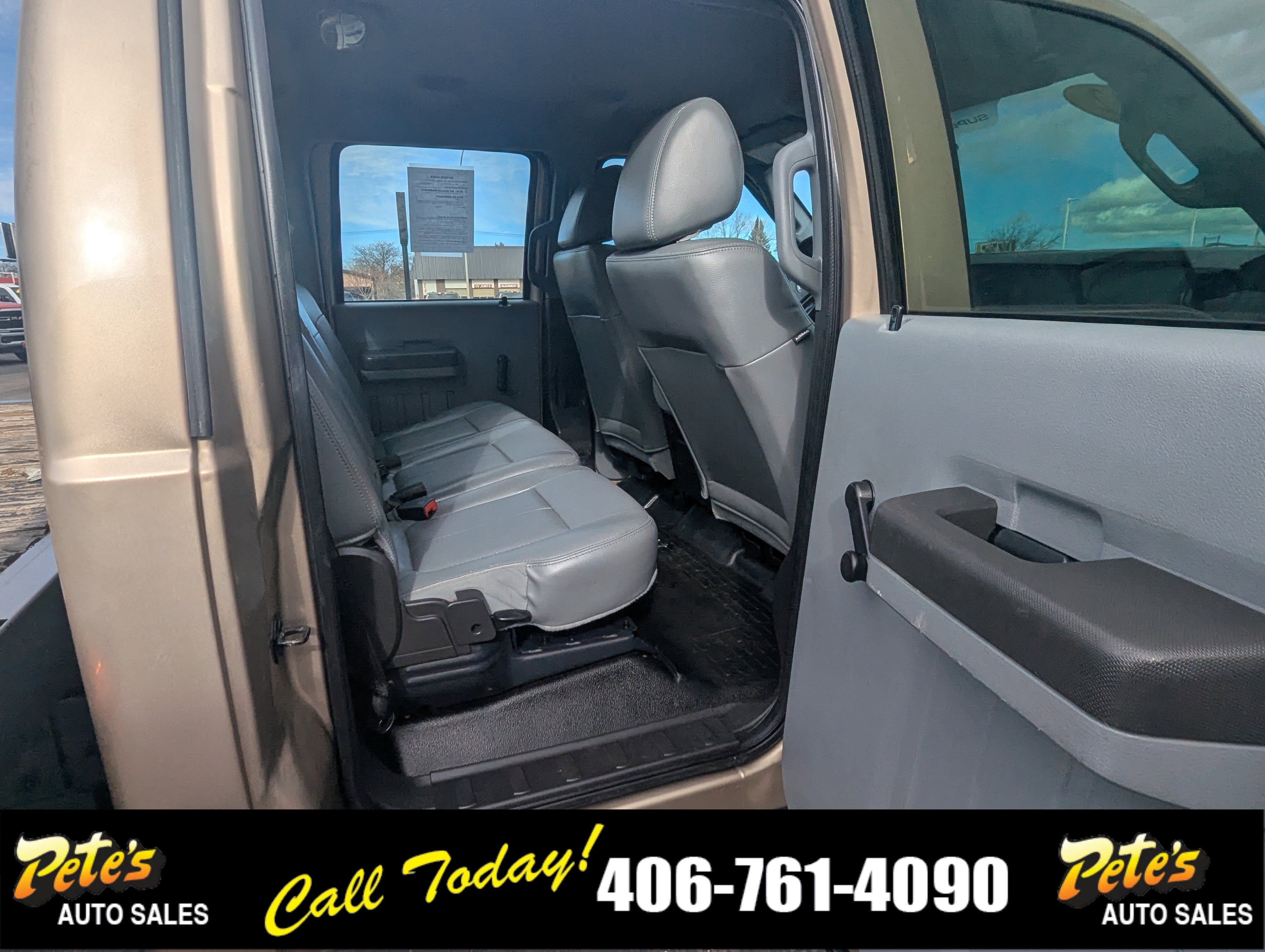

• Rear 60/40 flip-up/fold-down split bench seat -inc: outboard head restraints, center head restraints
• Tilt & telescoping steering wheel/column

• (2) front tow hooks
• (40) gallon aft-axle fuel tank
• 155-amp HD alternator
• 7-wire trailer tow harness w/relays, blunt cut & labeled
• 78 amp/hr 750 CCA battery

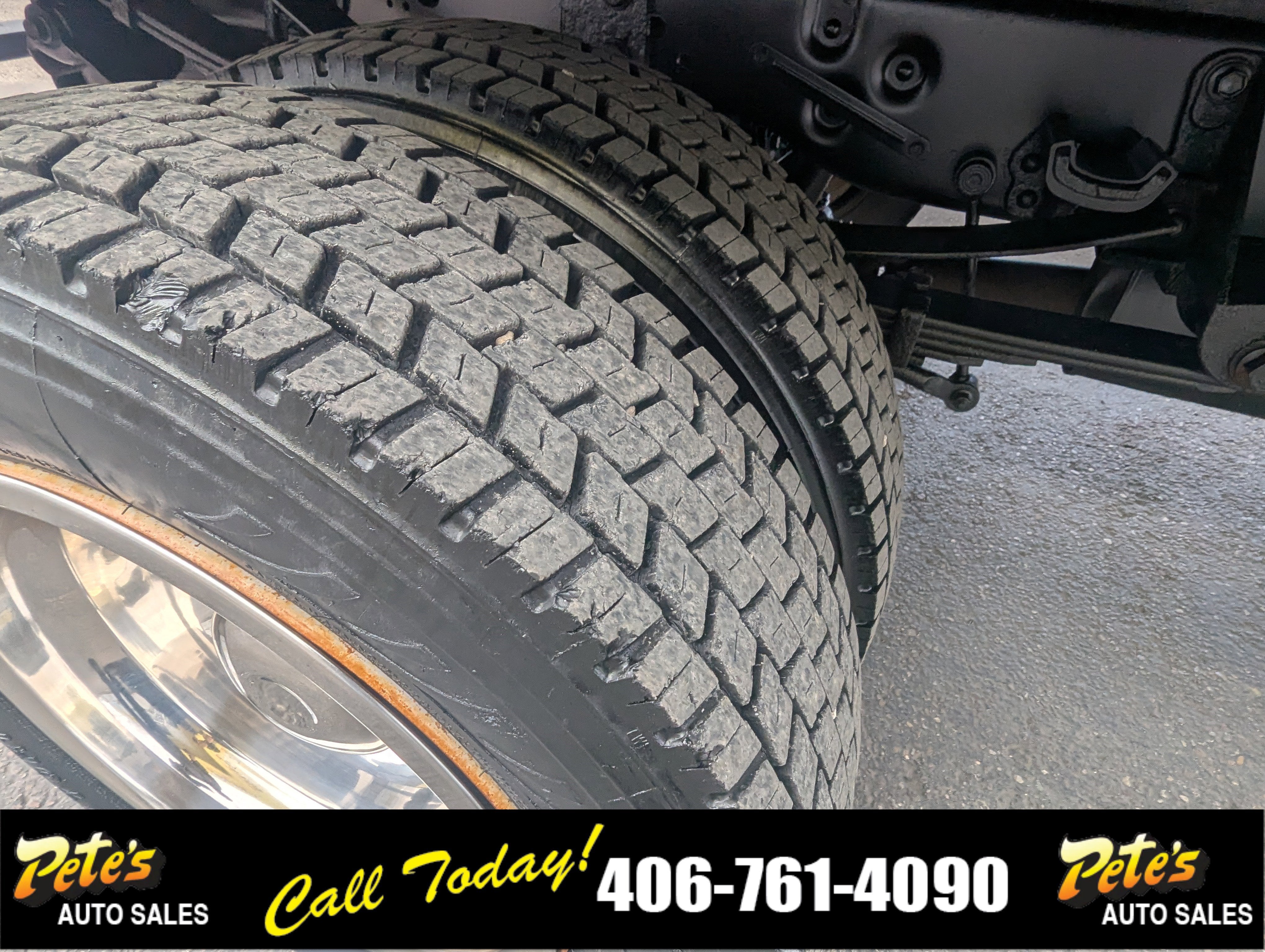

• Dual rear wheels
• Four wheel drive
• Front/rear stabilizer bars
• HD gas shock absorbers

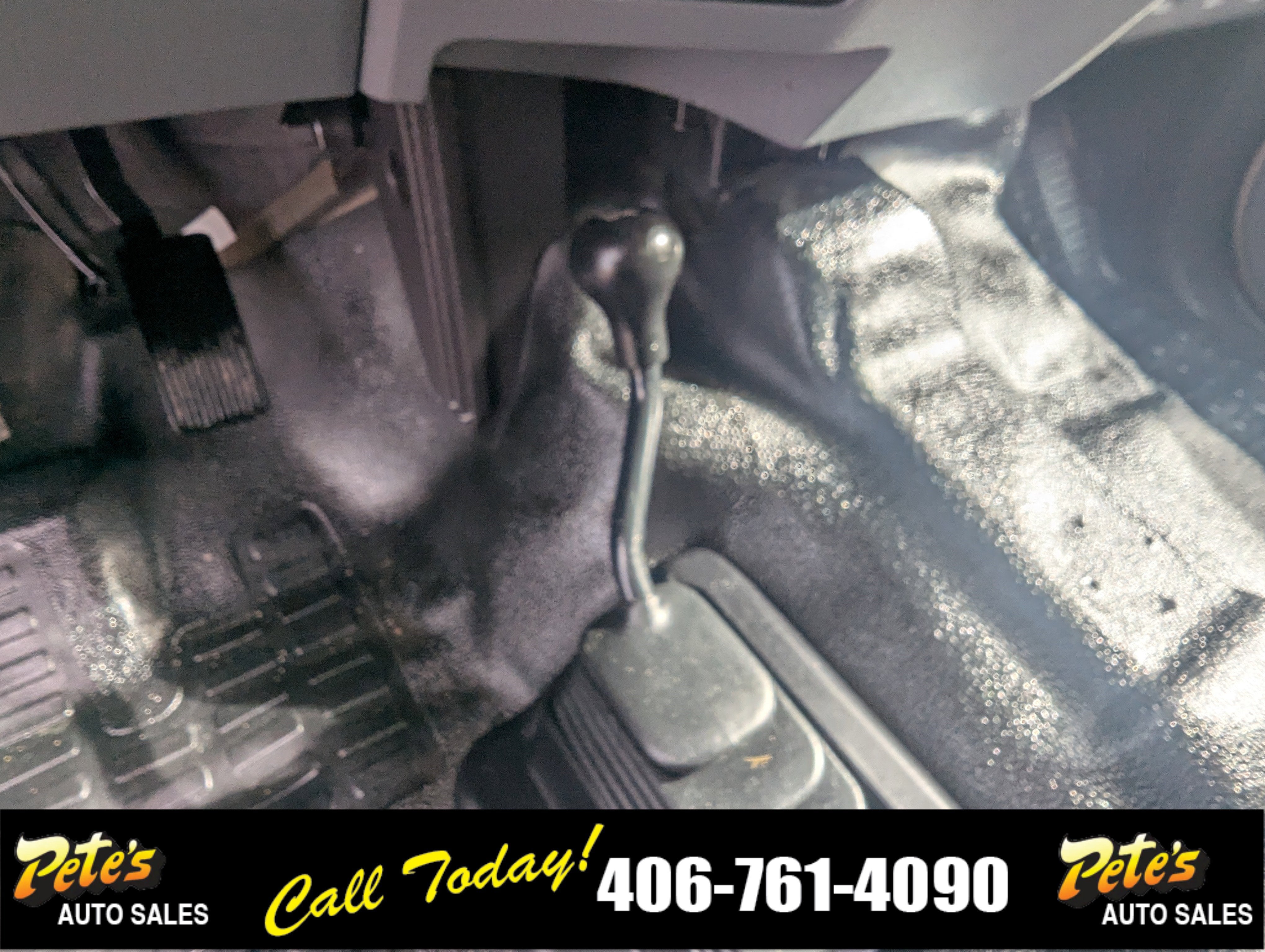

• Manual transfer case & hubs
• Mono-beam front axle w/coil spring suspension
• Pwr 4-wheel disc brakes w/hydro boost
• Pwr steering w/steering damper
• Rear auxiliary springs
• Stationary elevated idle control (SEIC)

• Anti-lock braking system (ABS)
• Child tethers on all passenger seats
• Color-coordinated 3-point safety belts w/front outboard height adjustment
• Driver/front passenger frontal, side & curtain airbags
• Dual-note electric horn
• SOS post crash alert system

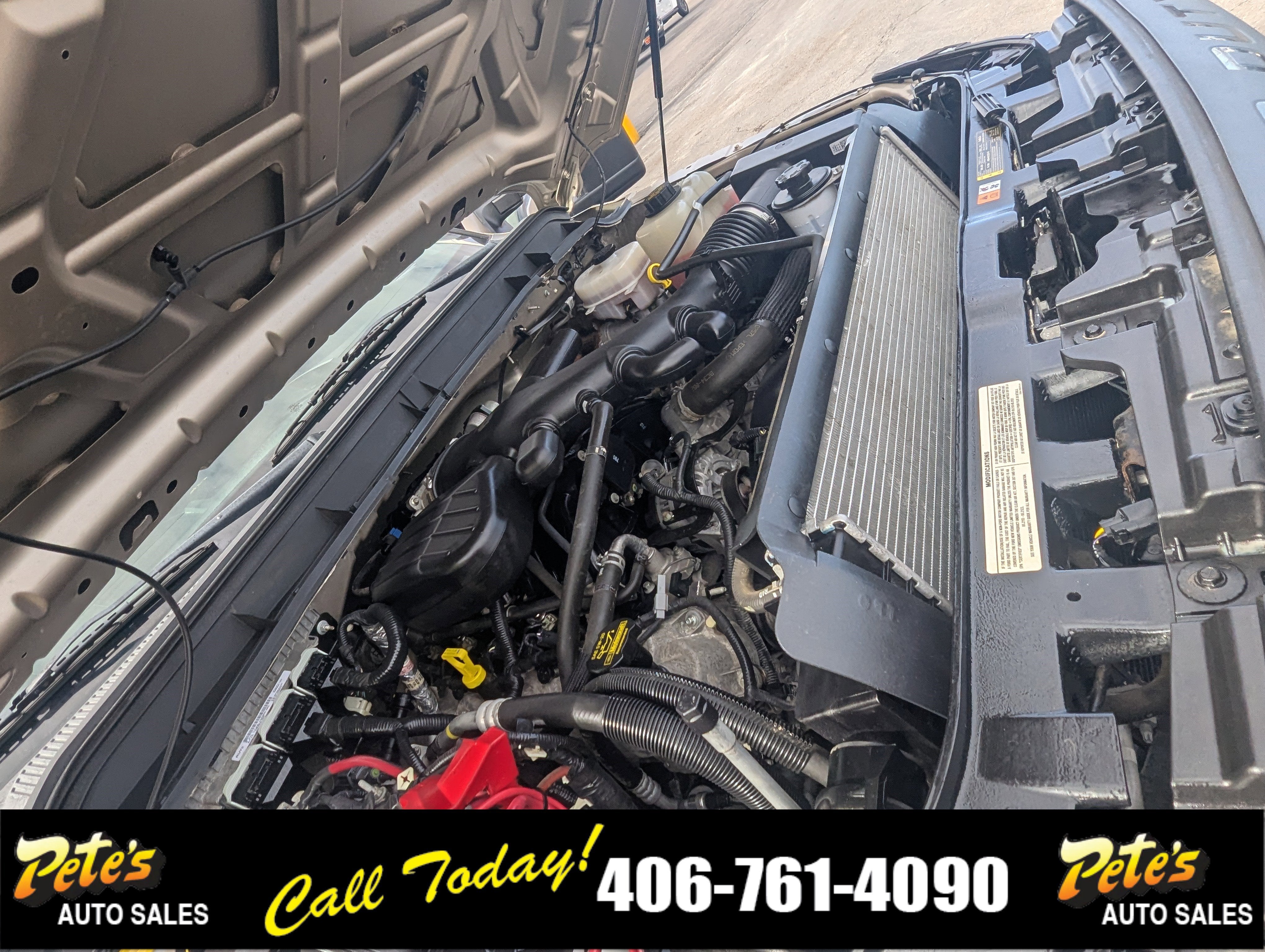

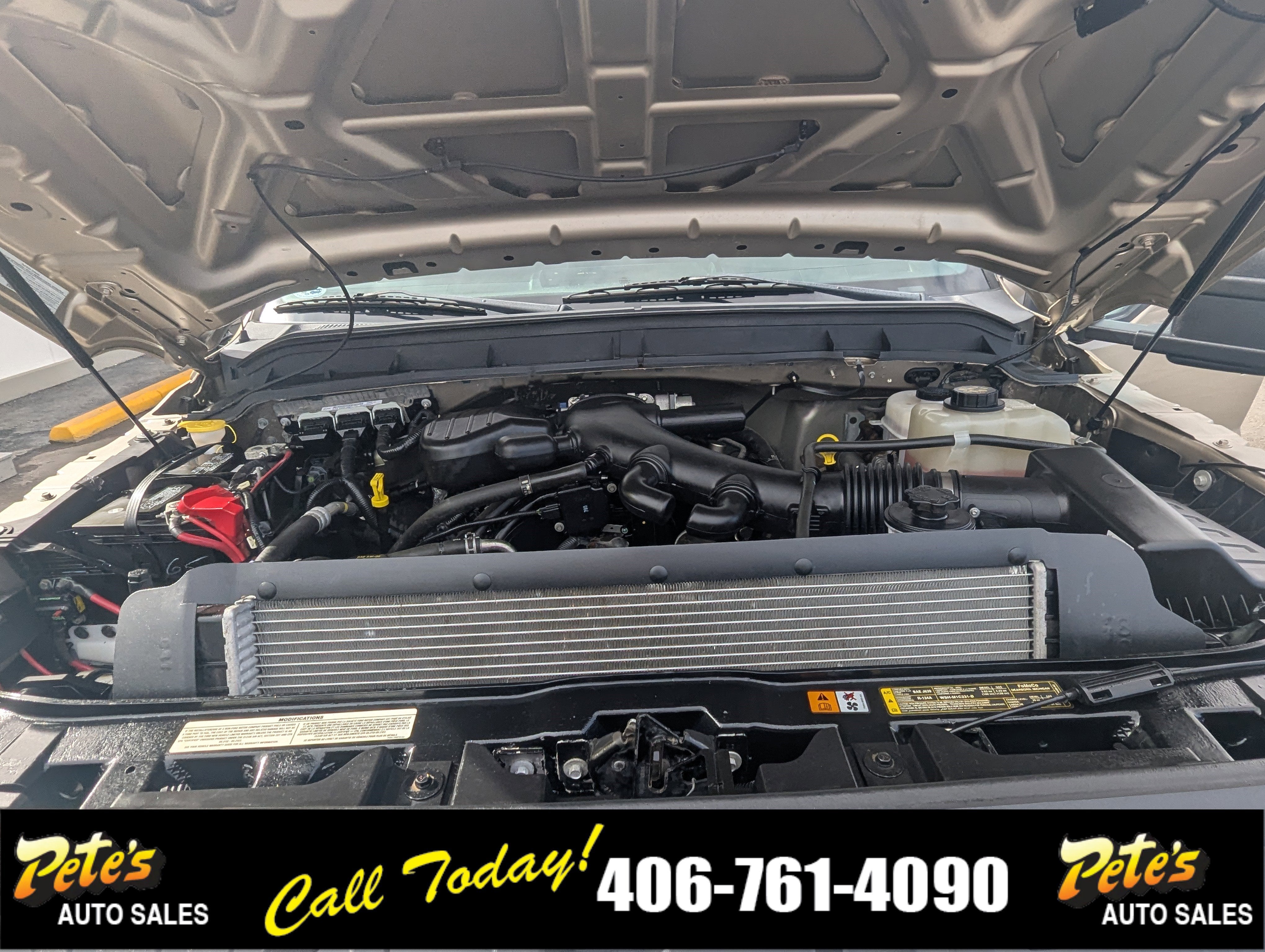

6.8L SOHC EFI TRITON 30-VALVE V10 ENGINE

• (STD)

• Four Wheel Drive
• Tow Hooks
• Dual Rear Wheels
• Power Steering
• 4-Wheel Disc Brakes
• Dual Rear Wheels

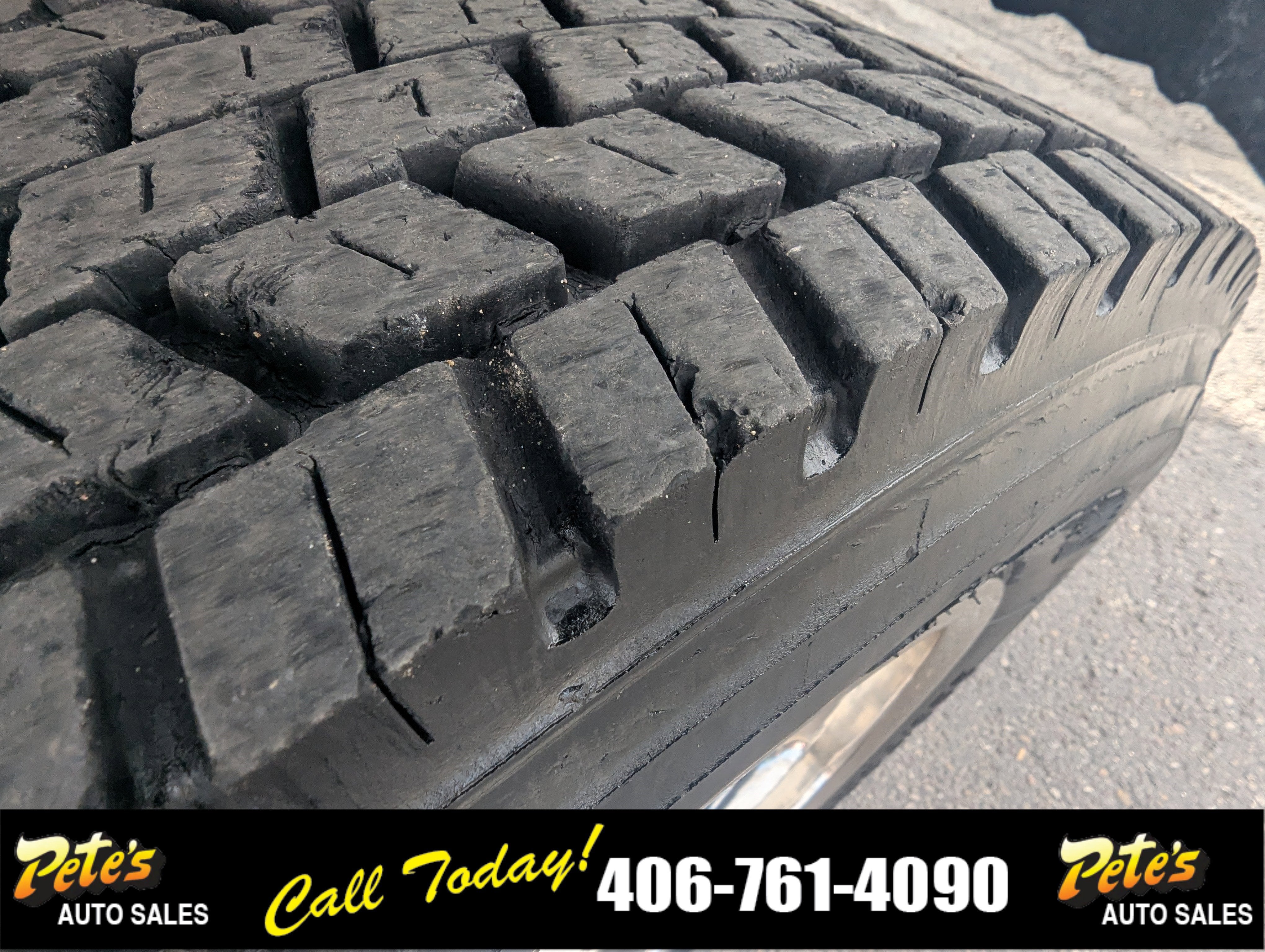

• Tires - Front All-Season
• Tires - Rear All-Season
• Steel Wheels
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• AM/FM Stereo
• A/C
• Vinyl Seats
• Split Bench Seat
• Driver Adjustable Lumbar
• Pass-Through Rear Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• Power Outlet
• Power Outlet
• Front Reading Lamps
• Rear Reading Lamps
• Traction Control
• ABS
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Maximum Alternator Capacity (amps): 157
• Maximum Alternator Watts: 2100
• Cooling System
• Total Cooling System Capacity (qts): 27.5
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Rear (lbs): 12000
• Curb Weight - Front (lbs): 4251
• Curb Weight - Rear (lbs): 3240
• Gross Vehicle Weight Rating Cap (lbs): 16500
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Rear (lbs): 12000
• Axle Type - Front: Dana Monobeam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 7000
• Axle Capacity - Rear (lbs): 12000
• Axle Ratio (:1) - Front: 4.88
• Axle Ratio (:1) - Rear: 4.88
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.26
• Stabilizer Bar Diameter - Rear (in): 1.06
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.5 x 0.5
• Rear Brake Rotor Diam x Thickness (in): 15.4 x 0.5
• Tires
• Front Tire Order Code: TFB
• Rear Tire Order Code: TFB
• Front Tire Size: 225/70R19.5G
• Rear Tire Size: 225/70R19.5G
• Front Tire Capacity (lbs): 3750
• Rear Tire Capacity (lbs): 3970
• Revolutions/Mile @ 45 mph - Front: 653
• Revolutions/Mile @ 45 mph - Rear: 653

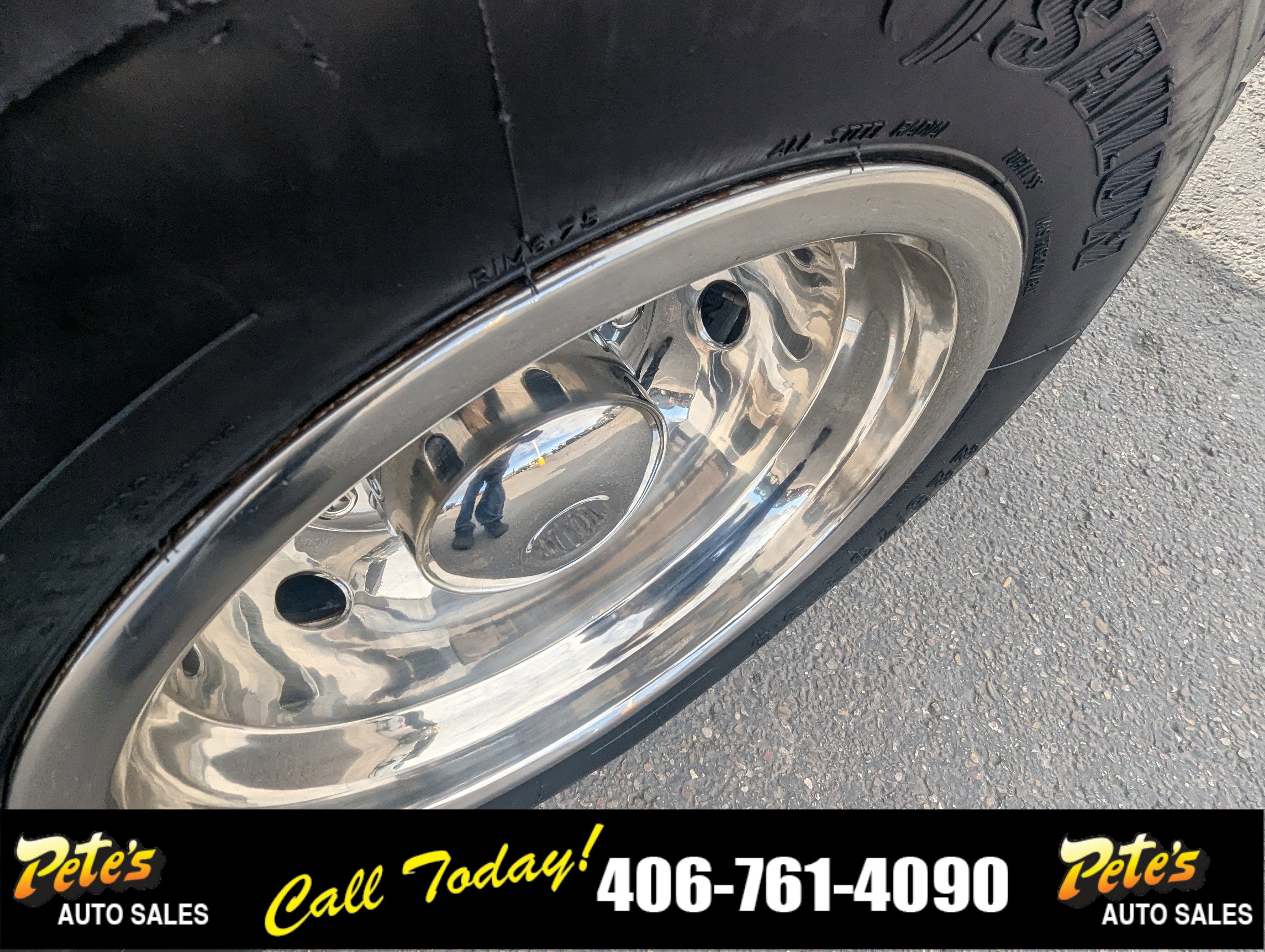

• Wheels
• Front Wheel Size (in): 19.5 x 6.0
• Rear Wheel Size (in): 19.5 x 6.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.3
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 51.5
• Turning Diameter - Wall to Wall (ft): 53.3
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 40.0
• Fuel Tank Location: Aft-Axle
• Exterior Dimensions
• Wheelbase (in): 176.2
• Length, Overall w/o rear bumper (in): 261.9
• Width, Max w/o mirrors (in): 93.9
• Height, Overall (in): 80.6
• Overhang, Front (in): 38.1
• Overhang, Rear w/o bumper (in): 47.6
• Front Bumper to Back of Cab (in): 154.3
• Cab to Axle (in): 60.0
• Cab to End of Frame (in): 107.6
• Ground to Top of Frame (in): 32.8
• Frame Width, Rear (in): 34.2
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.0
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.7
• Front Leg Room (in): 41.1
• Front Shoulder Room (in): 68.0
• Front Hip Room (in): 67.6
• Second Head Room (in): 40.8
• Second Leg Room (in): 42.1
• Second Shoulder Room (in): 68.0
• Second Hip Room (in): 67.6
• Summary

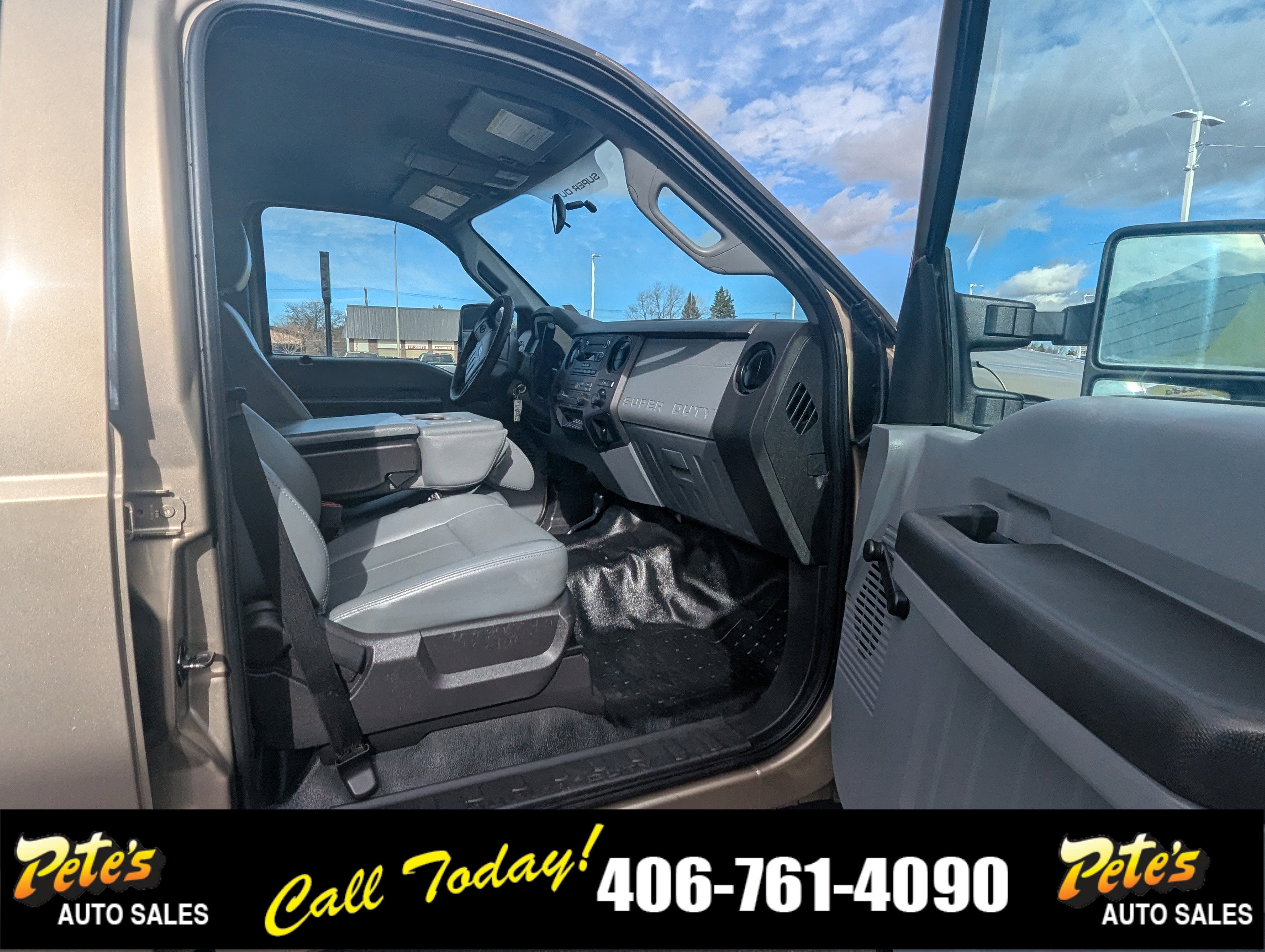

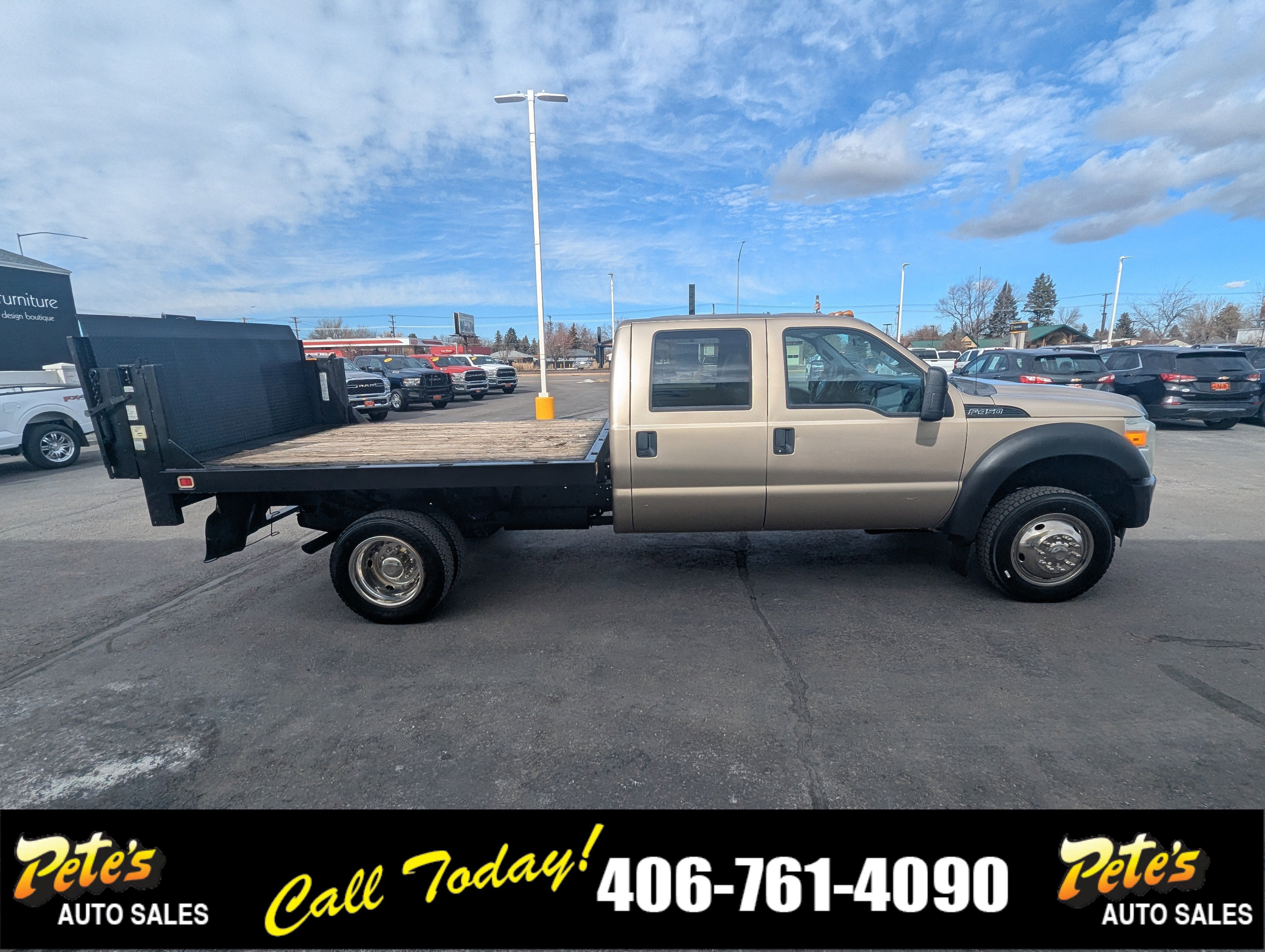

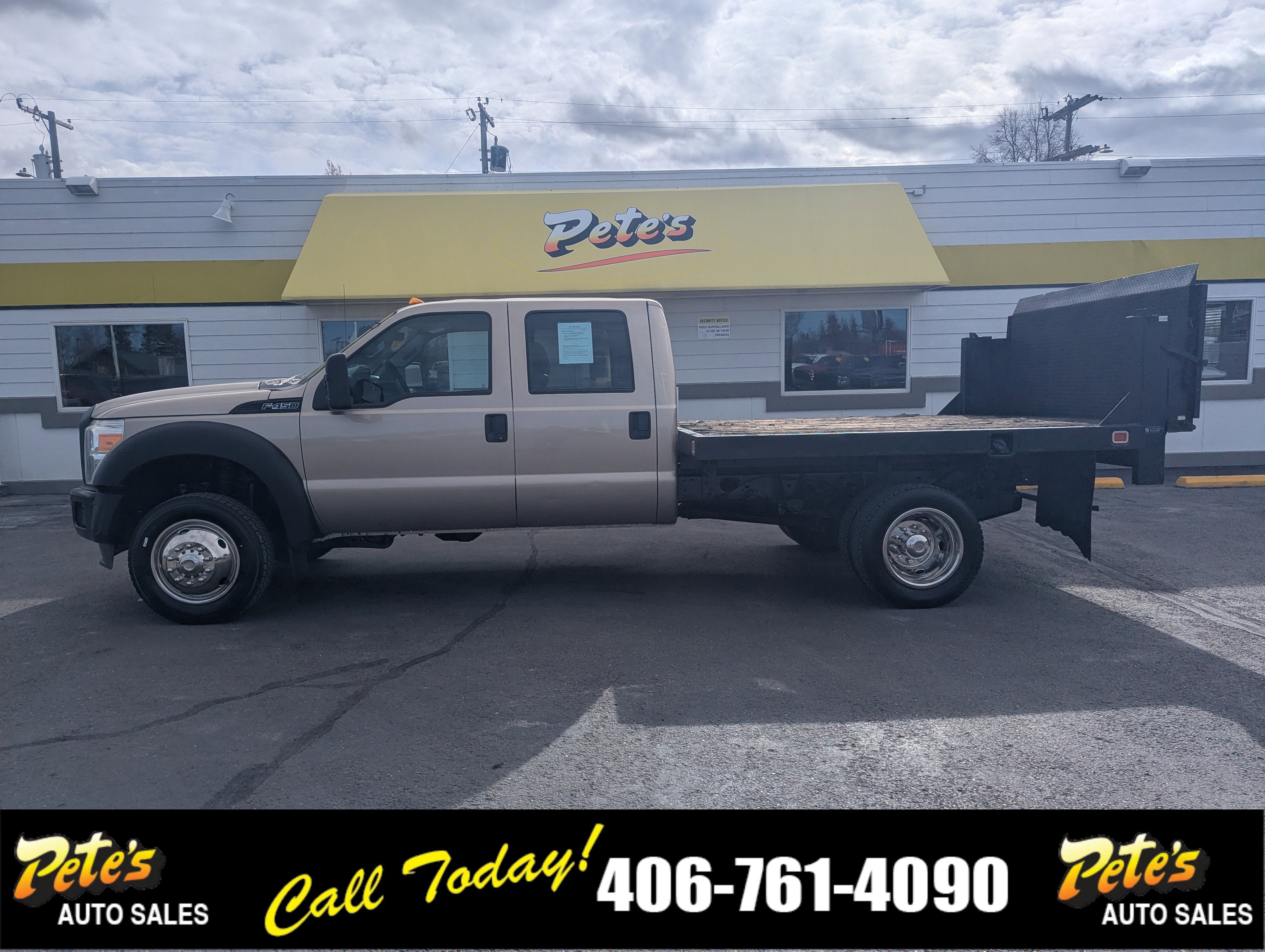

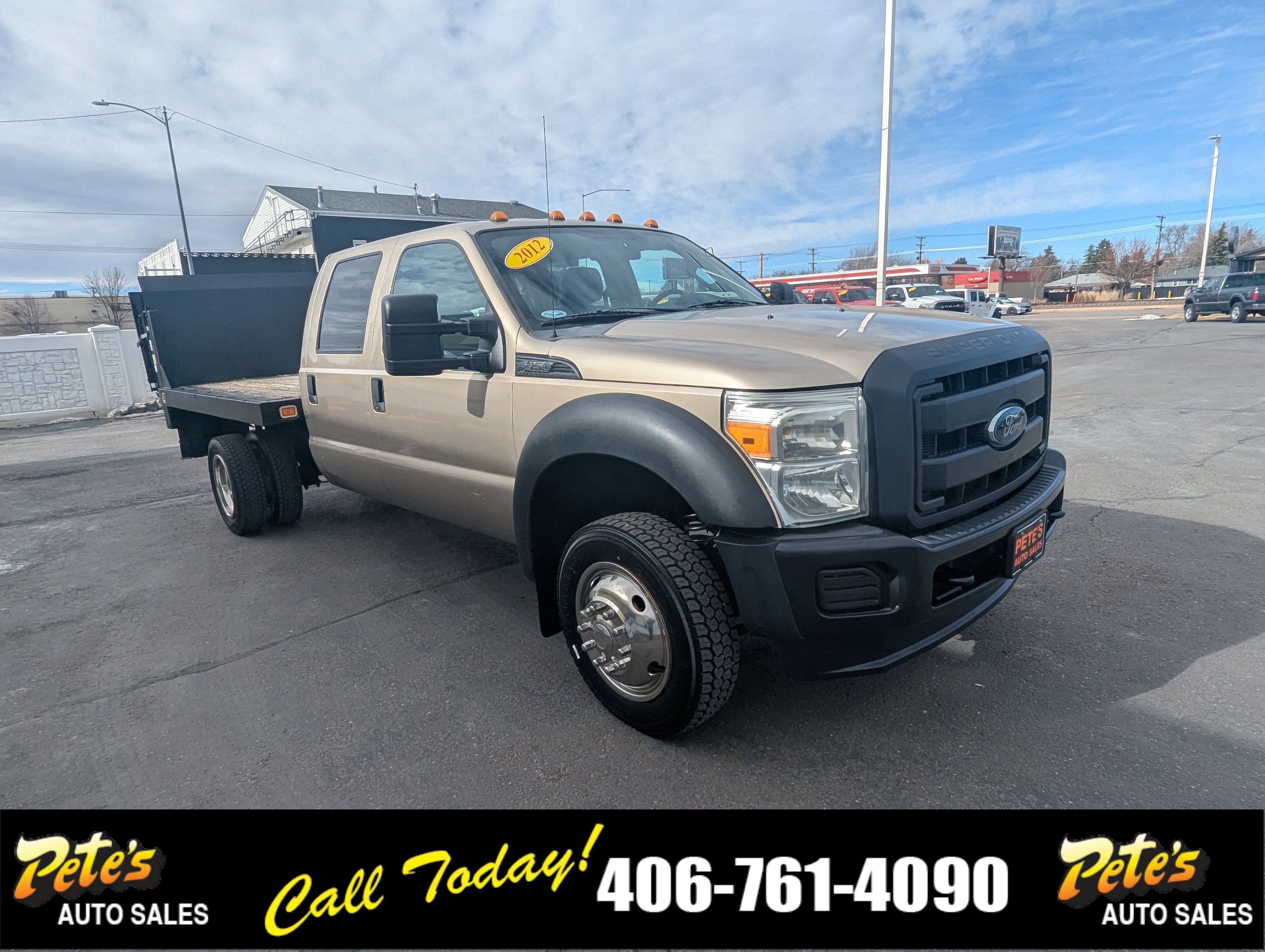

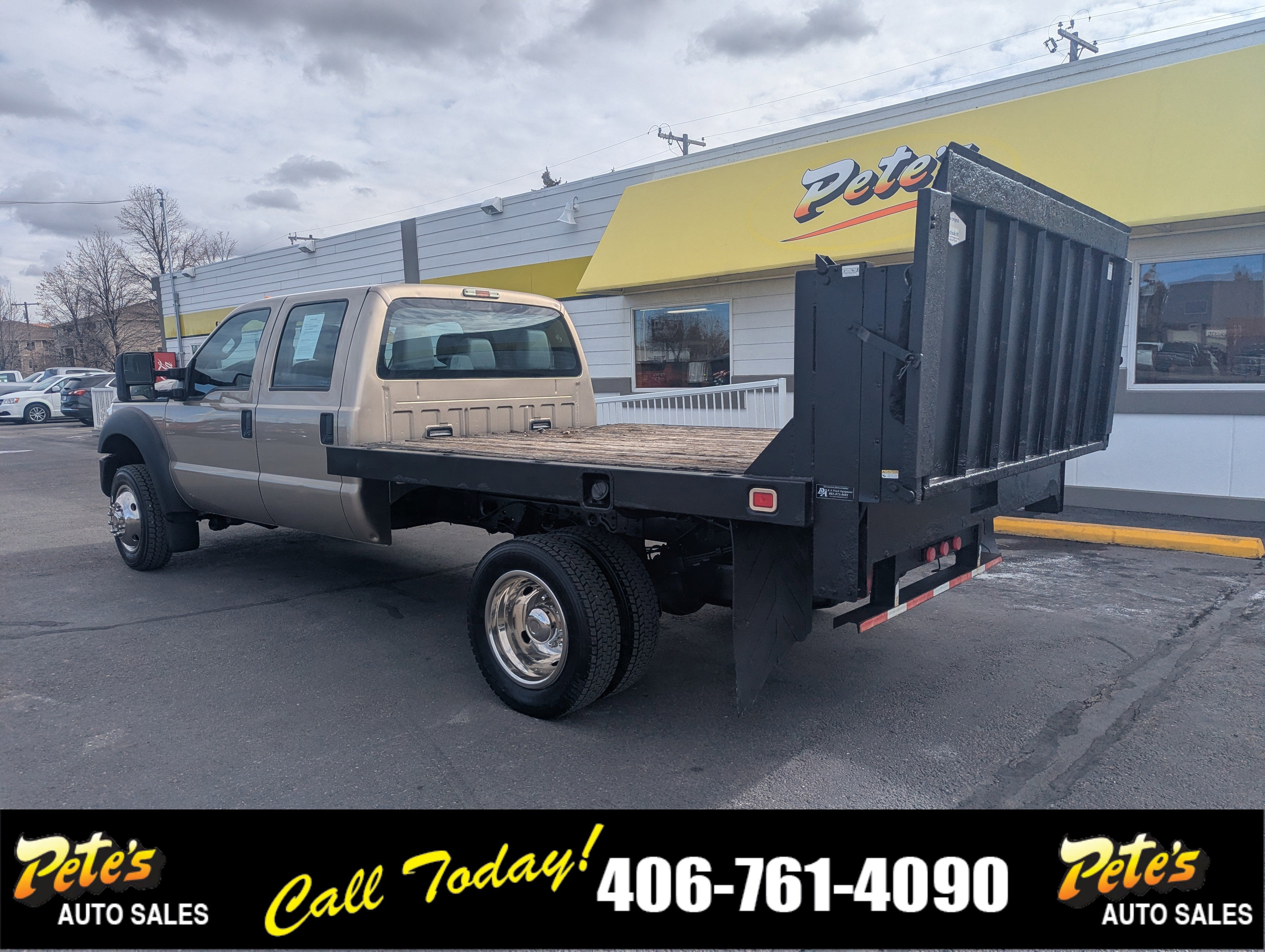

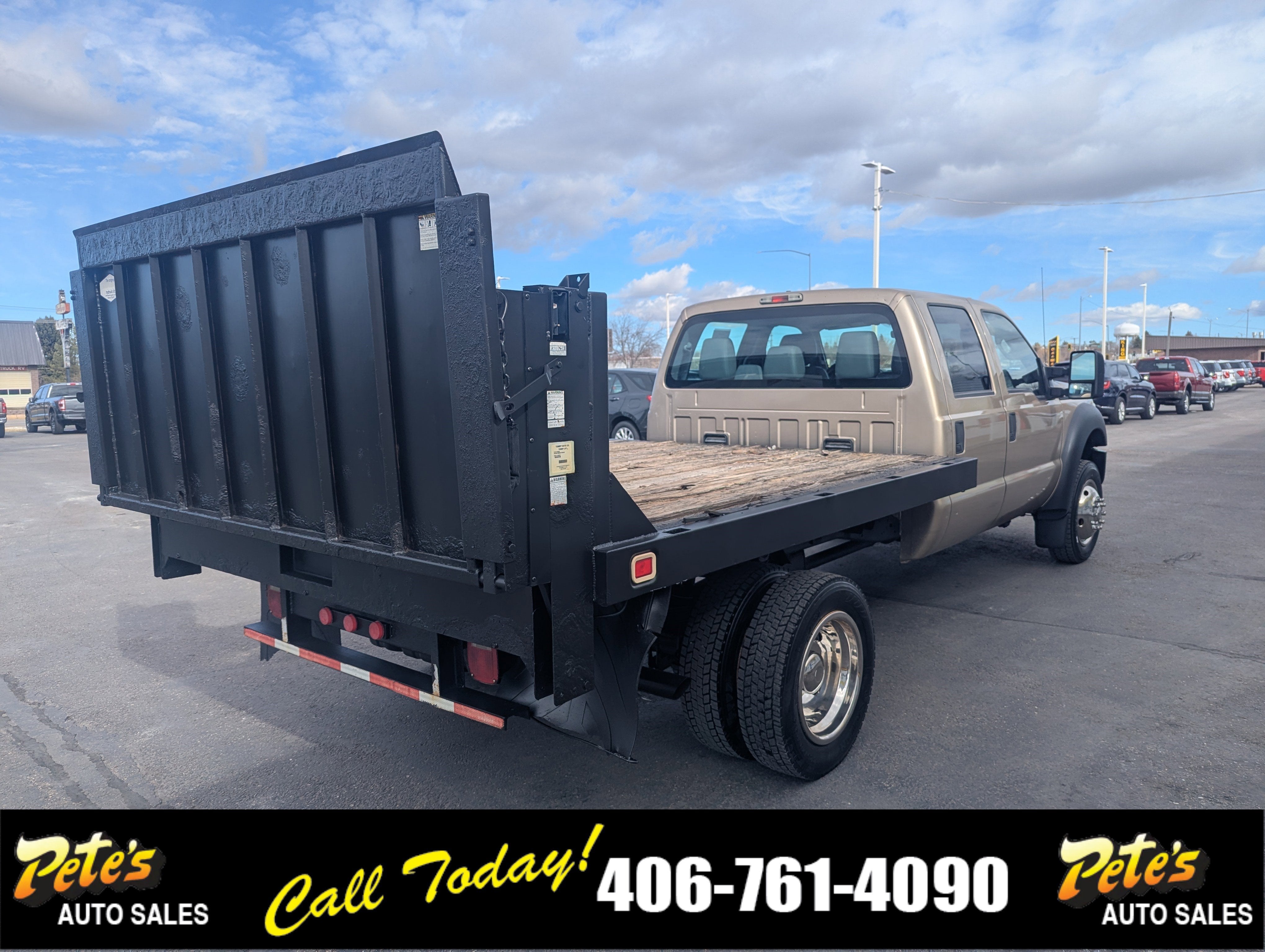

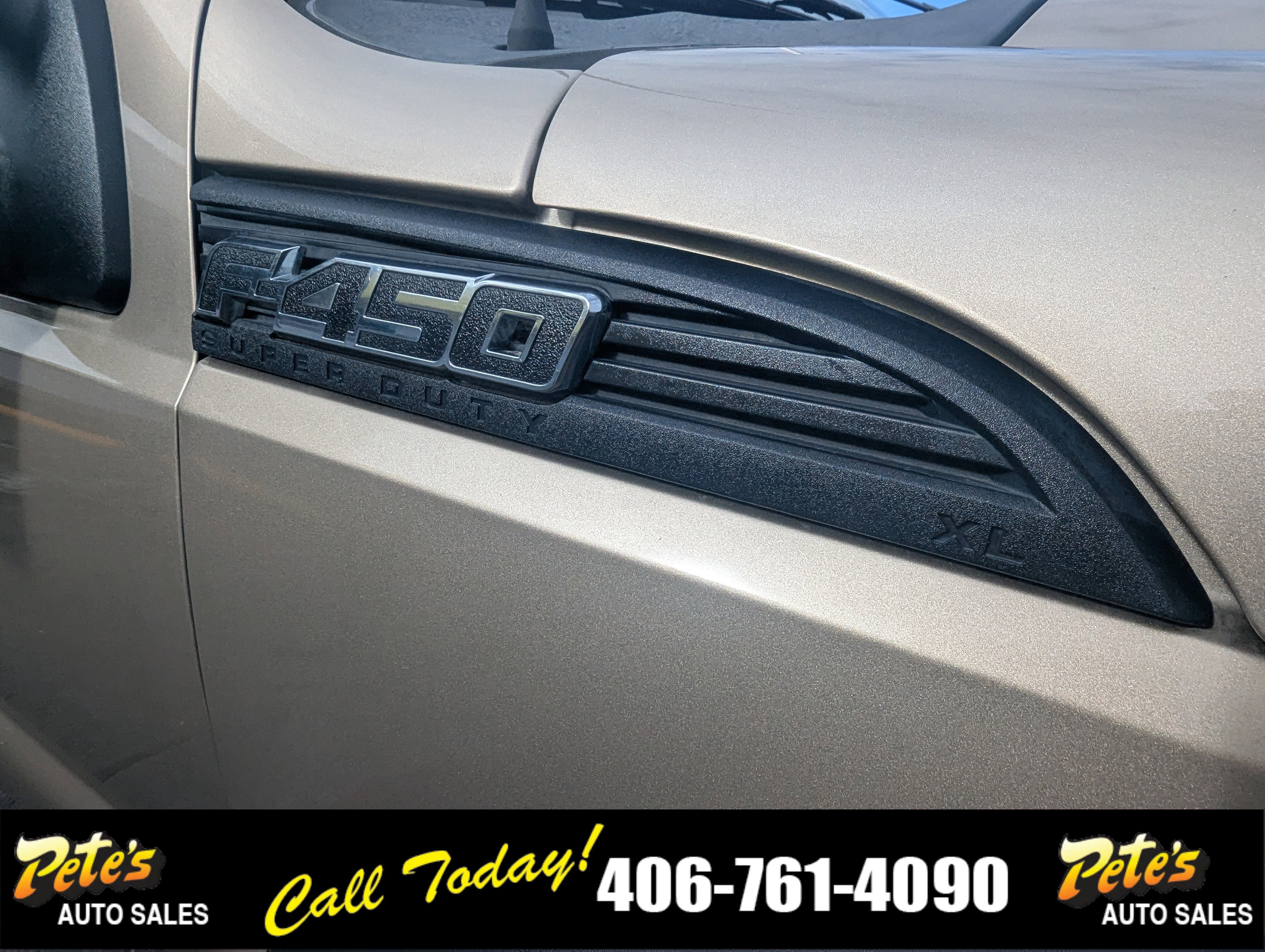

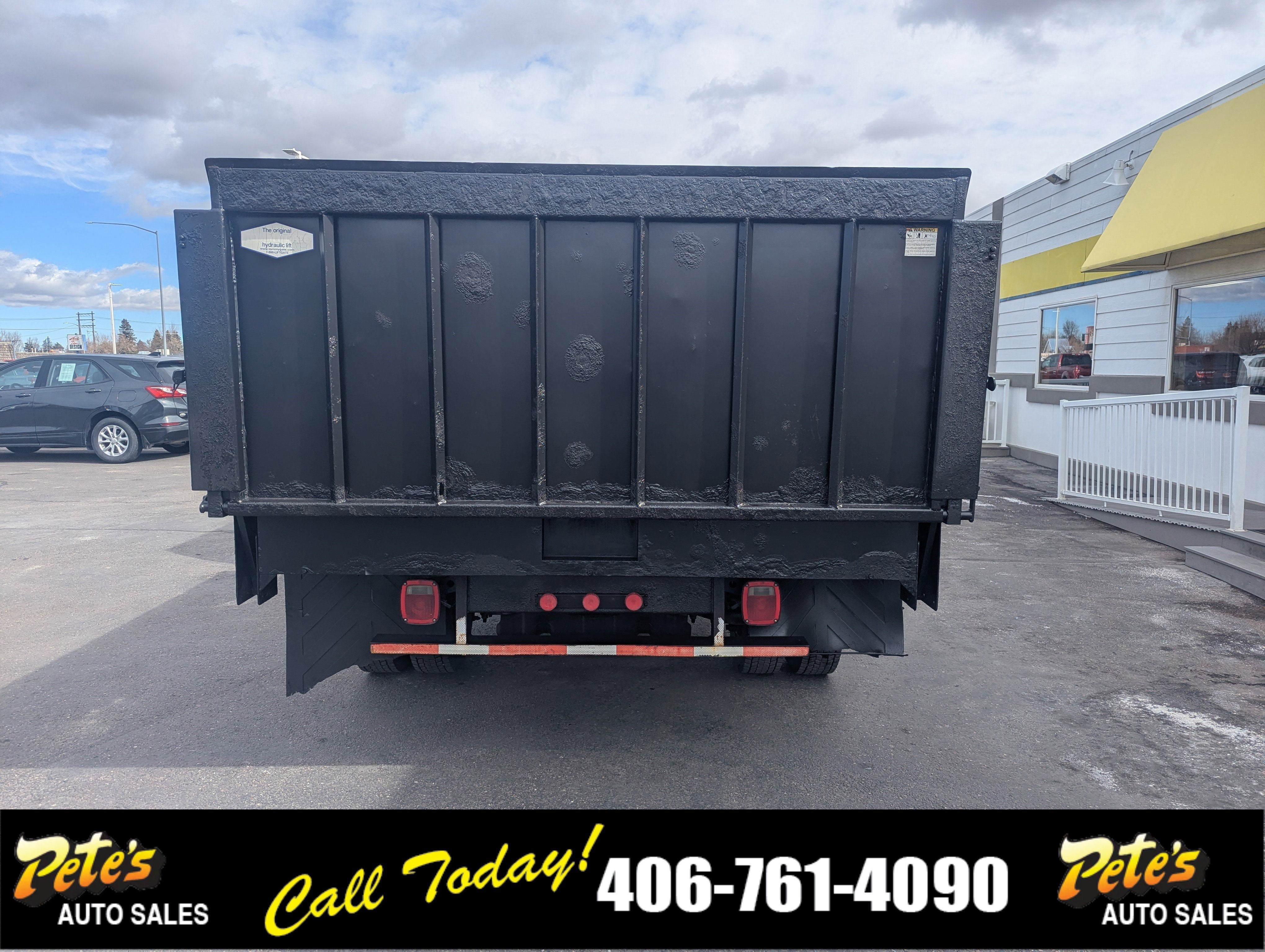

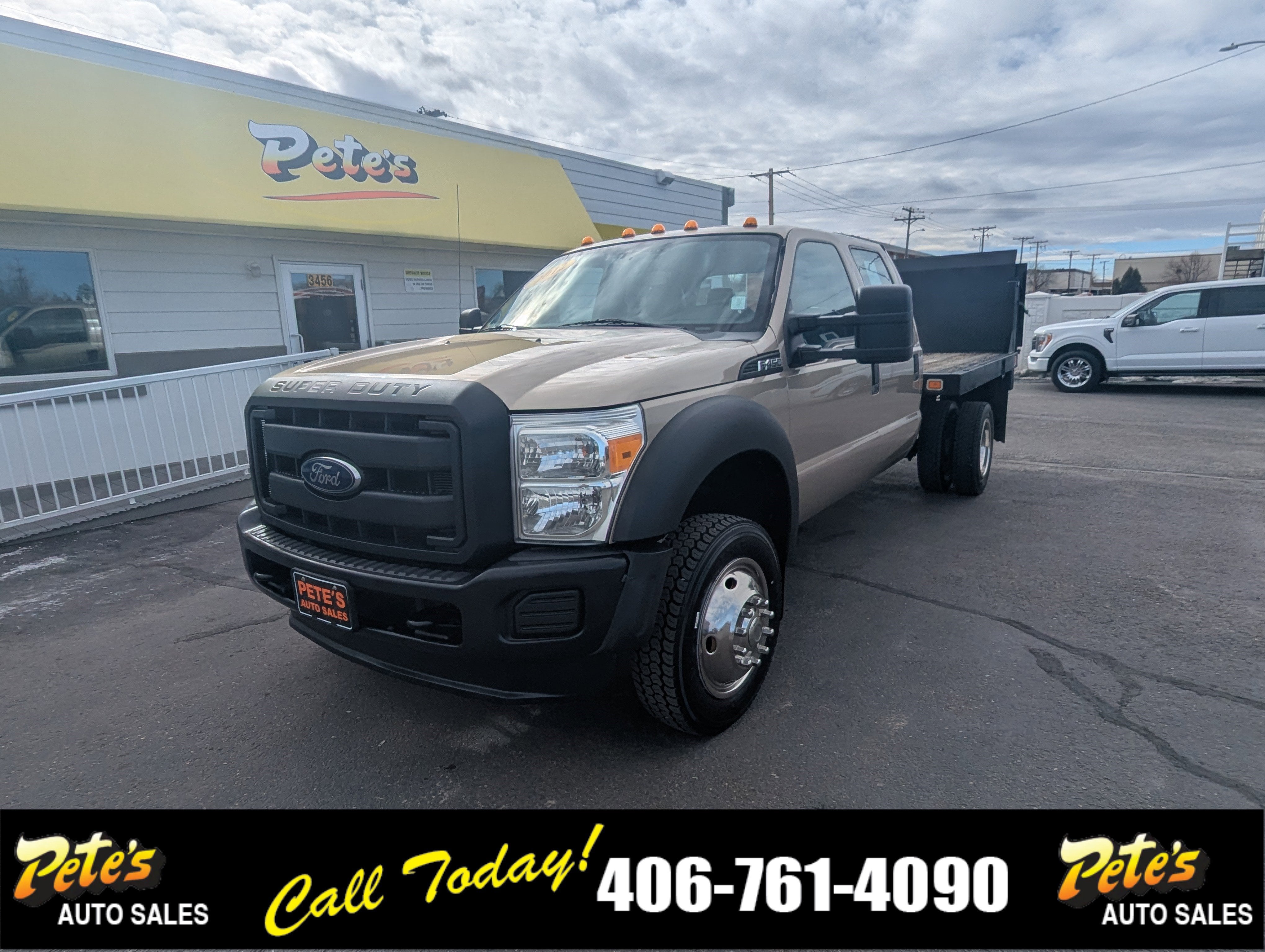

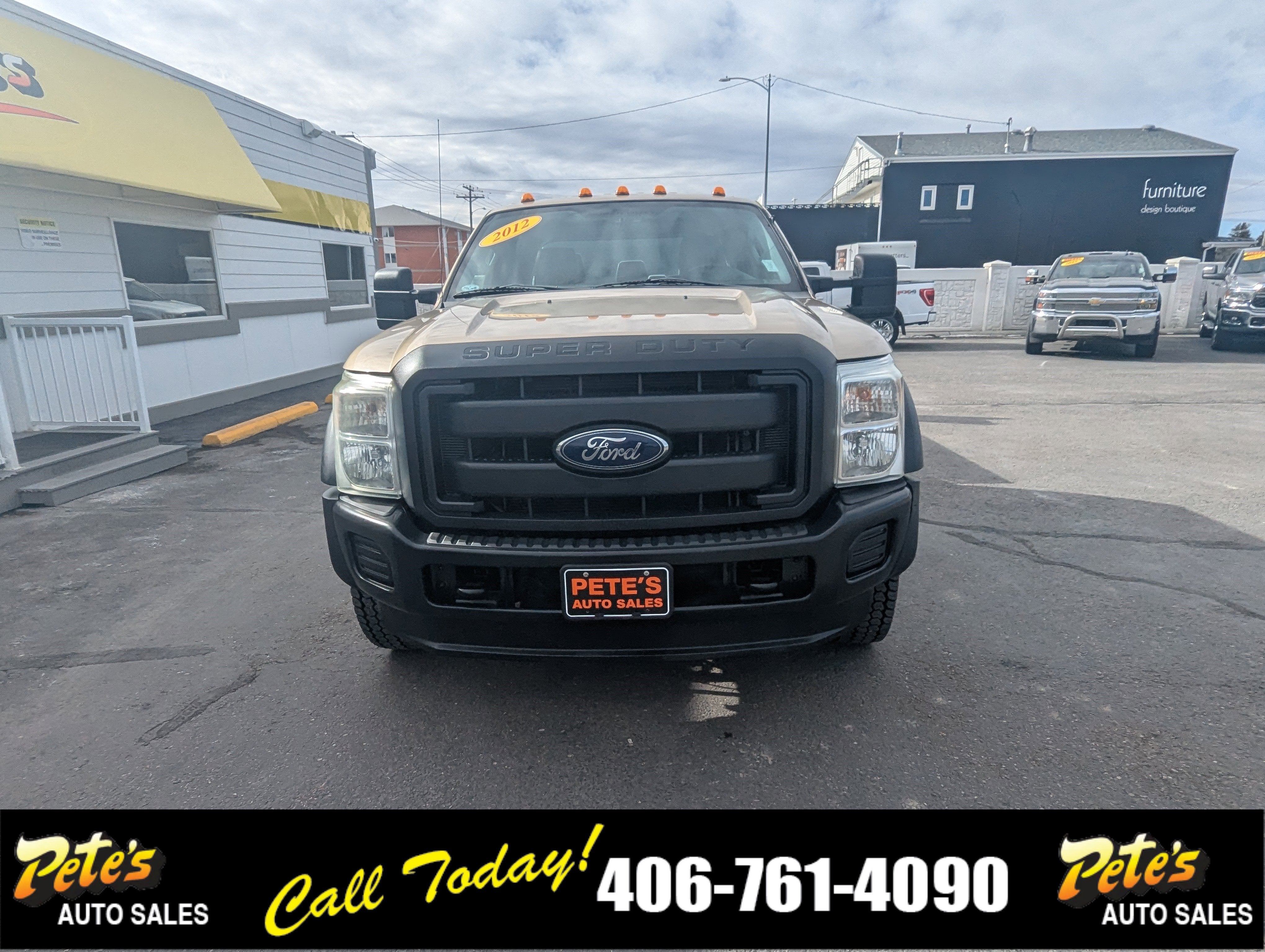

• Vehicle Name: Ford Super Duty F-450 DRW
• Body Style: Crew Cab Chassis Cab
• Body Code: 176" WB
