• (2) instrument panel cupholders
• 2nd row grab handles
• Display center-inc: warning messages & text functions
• Driver & passenger side A-pillar grab handles
• Front pwr point
• Glove box
• Manual air conditioning
• Matching 60/40 flip-up rear split bench seat
• Rear pwr point
• SecuriLock anti-theft ignition (PATS)
• Tilt steering column
• Tire pressure monitoring system

• 110-amp alternator
• 2-ton jack
• 58-amp/hr (540 CCA) maintenance-free battery
• Leaf spring rear suspension w/2-stage variable rear springs
• Long-spindle double wishbone front suspension w/coil-over-shock IFS
• Pwr front & rear anti-lock disc brakes (ABS)
• Pwr rack & pinion steering
• Rear wheel drive

• 3-point safety belts at all rear seat positions
• Auto lock safety belt feature for child seats
• Center front 2-point safety belt
• Dual note horn
• Dual stage driver & front passenger front airbags w/passenger off switch
• Dual stage driver & front passenger seat-mounted side airbags
• Pwr front & rear anti-lock disc brakes (ABS)
• Rear door child safety locks
• Seat Belt Minder system
• Seat integrated outside front lap & shoulder safety belts-inc: height adjusters, pretensioners, energy management retractors

4.6L EFI V8 ENGINE

• (STD)

• Rear Wheel Drive
• Power Steering
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• Rear Bench Seat
• Adjustable Steering Wheel
• Immobilizer
• Tire Pressure Monitor
• AM/FM Stereo
• A/C
• Passenger Vanity Mirror
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Front Side Air Bag
• Child Safety Locks

• Mileage
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - Hwy (MPG): 19
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 540
• Maximum Alternator Capacity (amps): 110
• Maximum Alternator Watts: 1650
• Cooling System
• Total Cooling System Capacity (qts): 19.7
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3400
• Gross Axle Wt Rating - Rear (lbs): 3600
• Curb Weight - Front (lbs): 2751
• Curb Weight - Rear (lbs): 2130
• Gross Vehicle Weight Rating Cap (lbs): 6650
• Gross Combined Wt Rating (lbs): 11500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 750
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Leaf Spring
• Spring Capacity - Front (lbs): 3150
• Spring Capacity - Rear (lbs): 3850
• Axle Type - Front: Double Wishbone
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 4150
• Axle Capacity - Rear (lbs): 3800
• Axle Ratio (:1) - Rear: 3.55
• Shock Absorber Diameter - Front (mm): 36
• Shock Absorber Diameter - Rear (mm): 32
• Stabilizer Bar Diameter - Front (in): 1.34
• Brakes
• Brake Type: Power
• Brake ABS System: 4-wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 0.55
• Rear Brake Rotor Diam x Thickness (in): 13.7 x 0.47
• Tires
• Front Tire Order Code: T73
• Rear Tire Order Code: T73
• Spare Tire Order Code: T73
• Front Tire Size: P255/65R17
• Rear Tire Size: P255/65R17
• Spare Tire Size: P255/65R17
• Front Tire Capacity (lbs): 1986
• Rear Tire Capacity (lbs): 1986
• Spare Tire Capacity (lbs): 1986
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 20.0
• Turning Diameter - Curb to Curb (ft): 43.6
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 132.5
• Length, Overall w/o rear bumper (in): 217.8
• Width, Max w/o mirrors (in): 78.9
• Height, Overall (in): 74.0
• Overhang, Front (in): 36.9
• Overhang, Rear w/o bumper (in): 48.4
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 33.0
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 67.0
• Cargo Box Width @ Top, Rear (in): 62.4
• Cargo Box Width @ Floor (in): 60.3
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 22.3
• Tailgate Width (in): 65.2
• Cargo Volume (ft³): 55.5
• Ext'd Cab Cargo Volume (ft³): 37.8
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.9
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 66.5
• Front Hip Room (in): 65.8
• Second Head Room (in): 39.6
• Second Leg Room (in): 32.7
• Second Shoulder Room (in): 66.7
• Second Hip Room (in): 66.5
• Summary

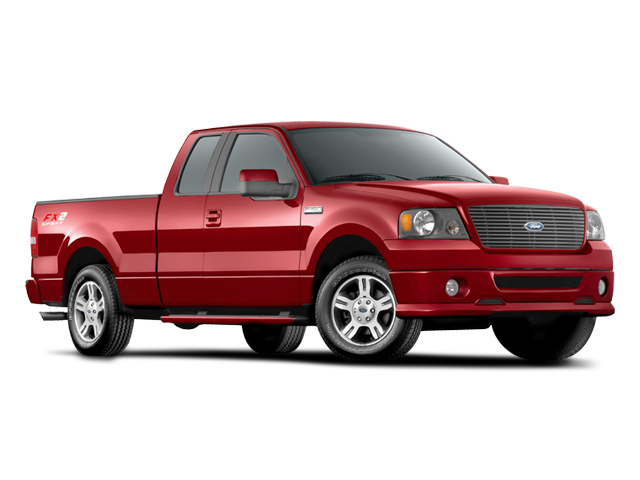

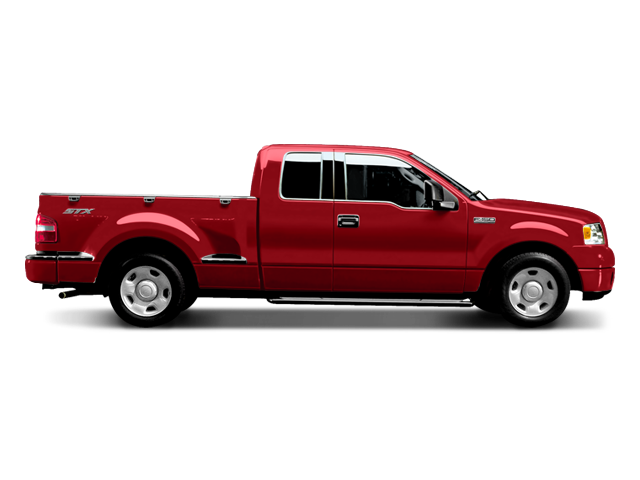

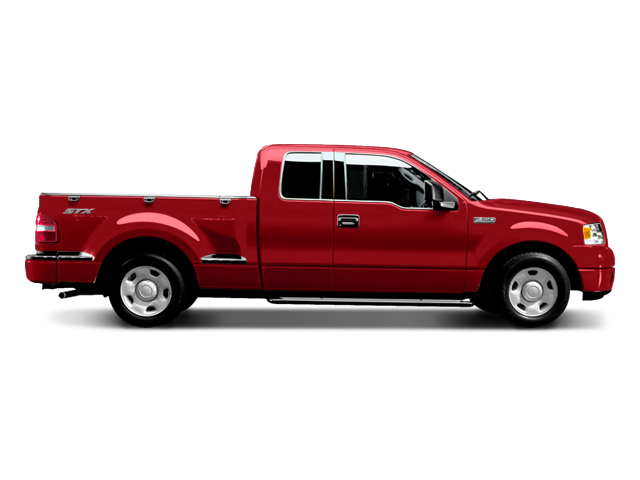

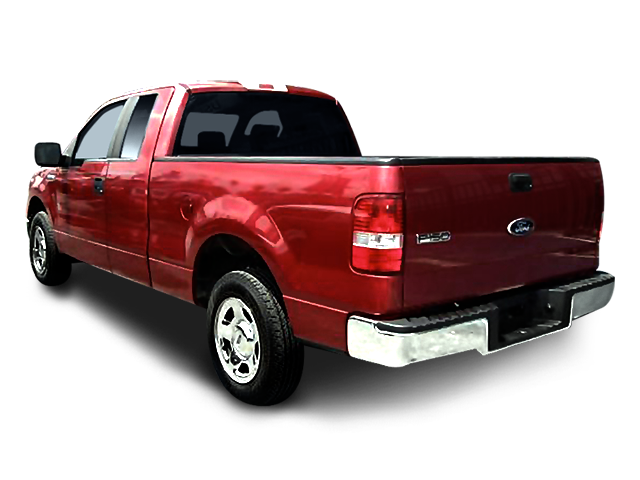

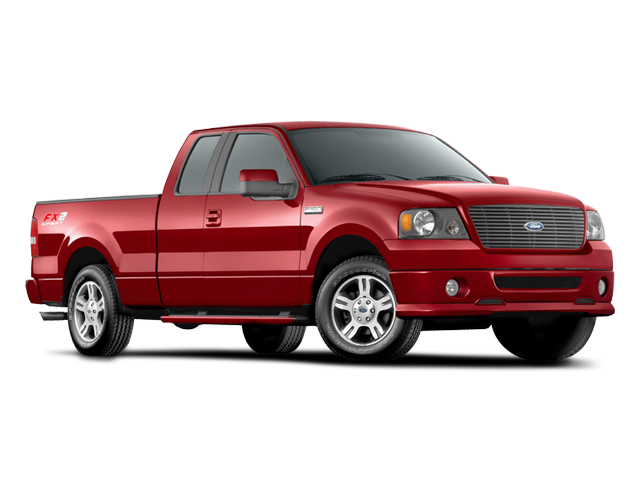

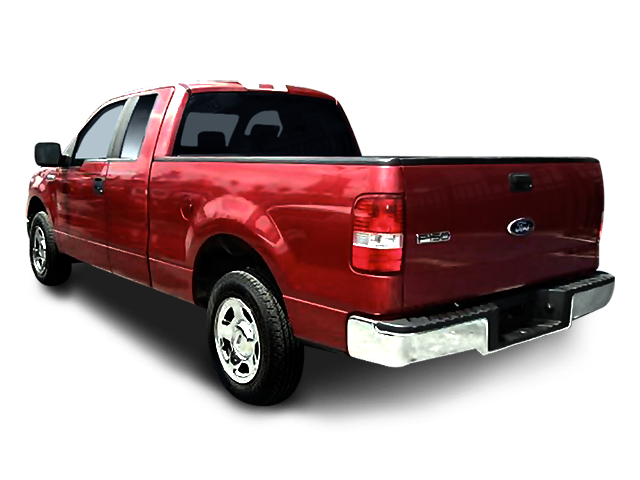

• Vehicle Name: Ford F-150
• Body Style: Supercab 5.5' Styleside
• Body Code: 133" WB
