• Air conditioning, dual-zone, manual, individual climate settings for driver and right front passenger
• Assist handle, front passenger (Also includes rear outboard passenger assist handle on Extended Cab Models.)
• Cigarette lighter, on instrument panel
• Coat hook, driver side (Also includes passenger side coat hook on Extended Cab Models.)
• Cupholders, front (Also includes rear cupholders on Extended Cab Models.)

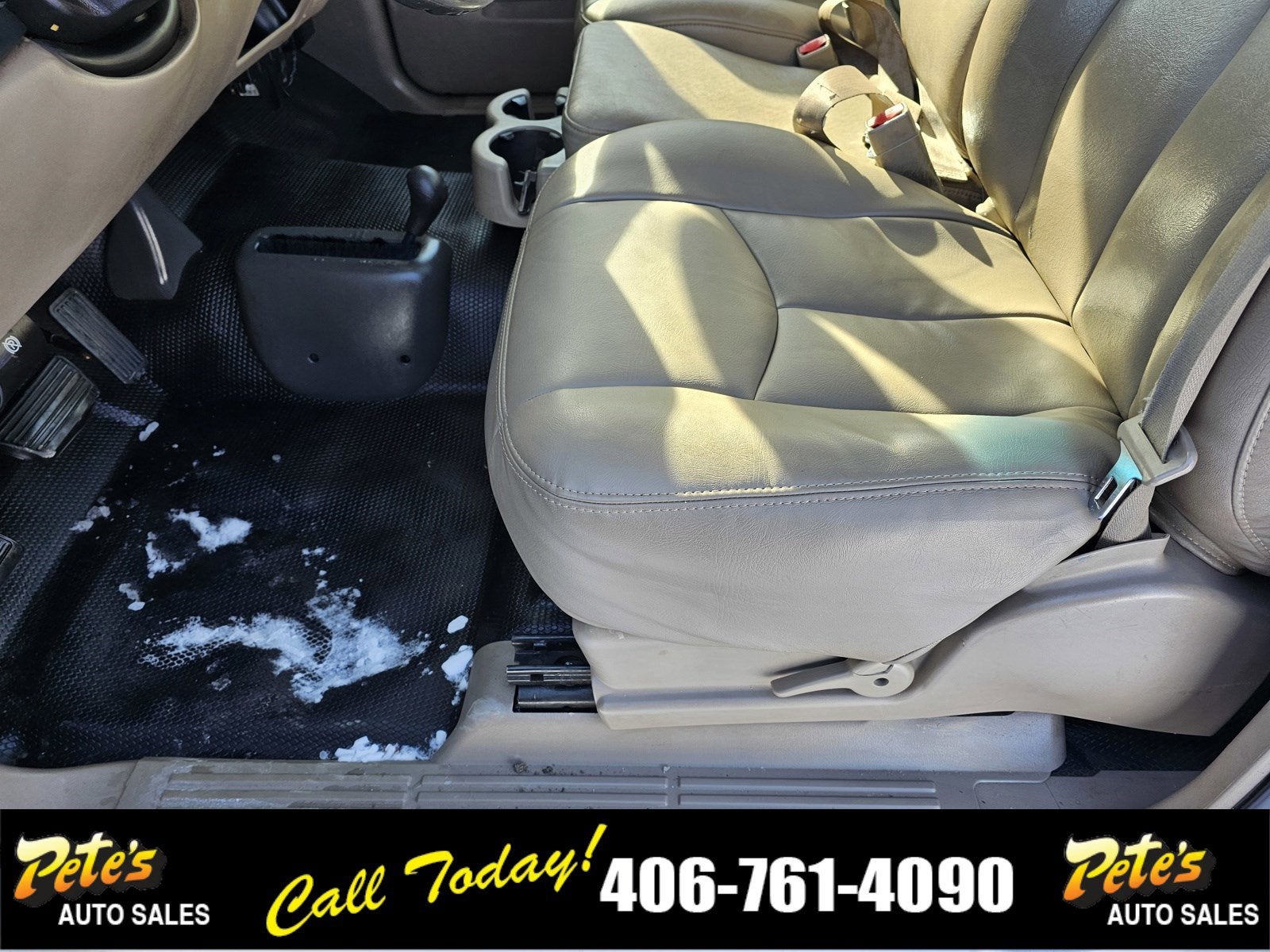

• Floor covering, rubberized vinyl, Black
• Lighting, dome lamp, reading, courtesy, illuminated entry feature, backlit instrument panel switches and door handle-activated illuminated entry
• Mirror, inside rearview, manual day/night
• Power outlets, auxiliary, covered, 2 dash-mounted, 12-volt
• Seat trim, Vinyl

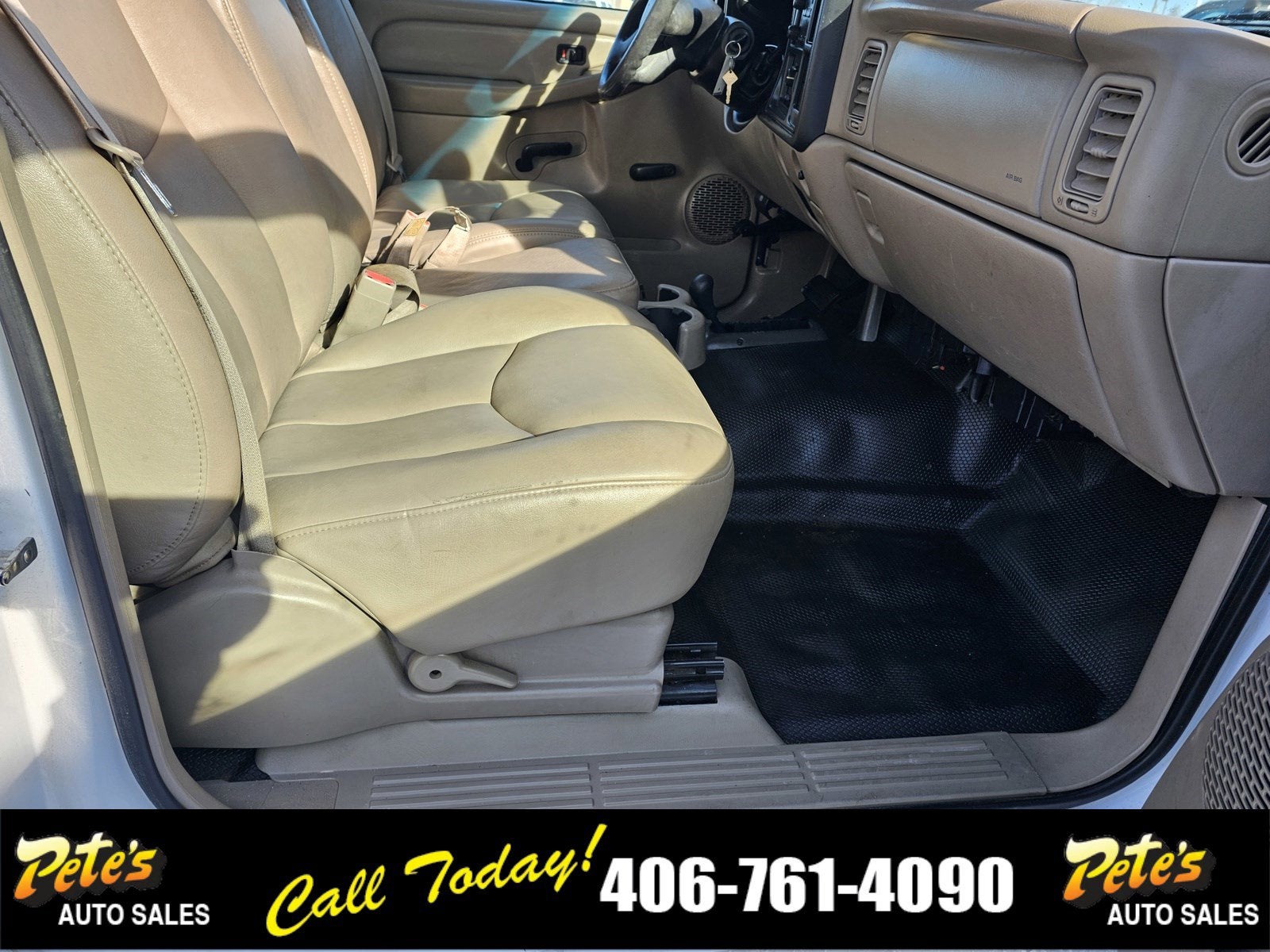

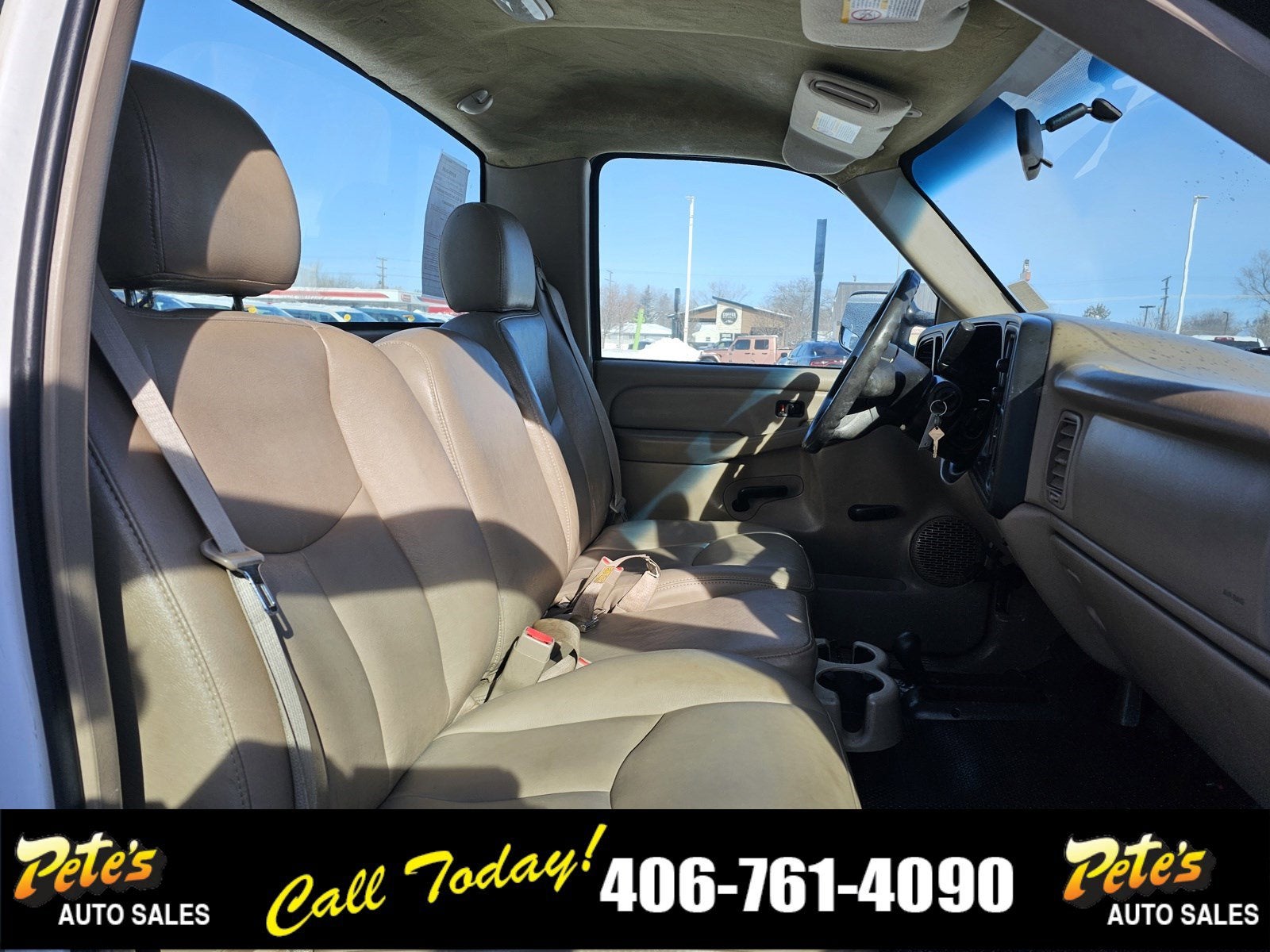

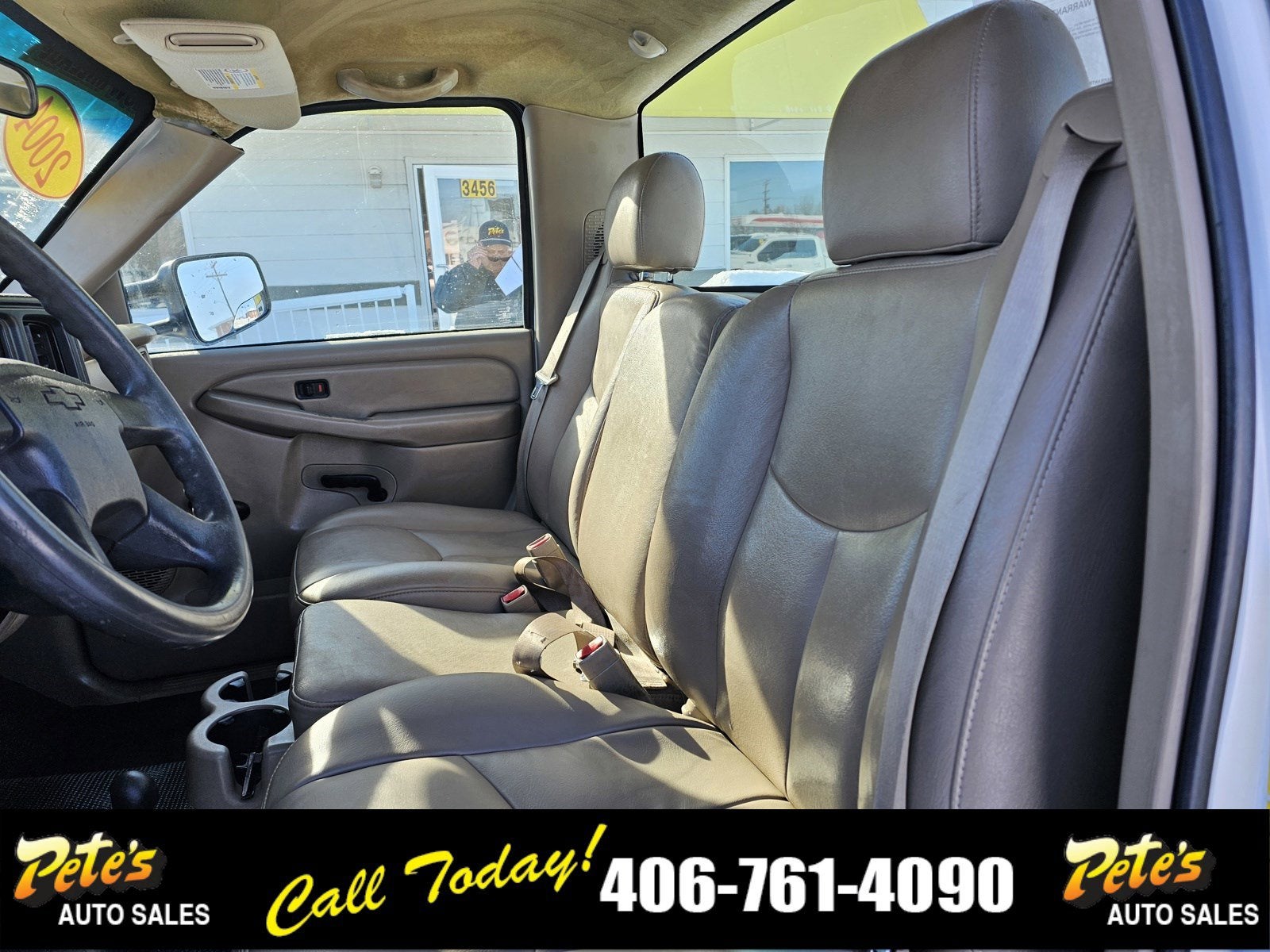

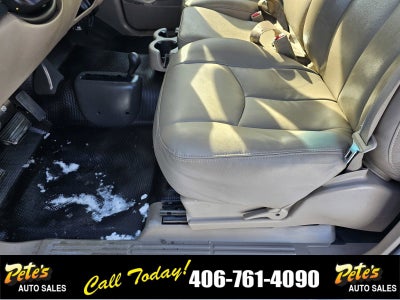

• Seats, front 40/20/40 split-bench, 3-passenger, driver and passenger manual reclining with outboard head restraints
• Sound system feature, 4-speakers

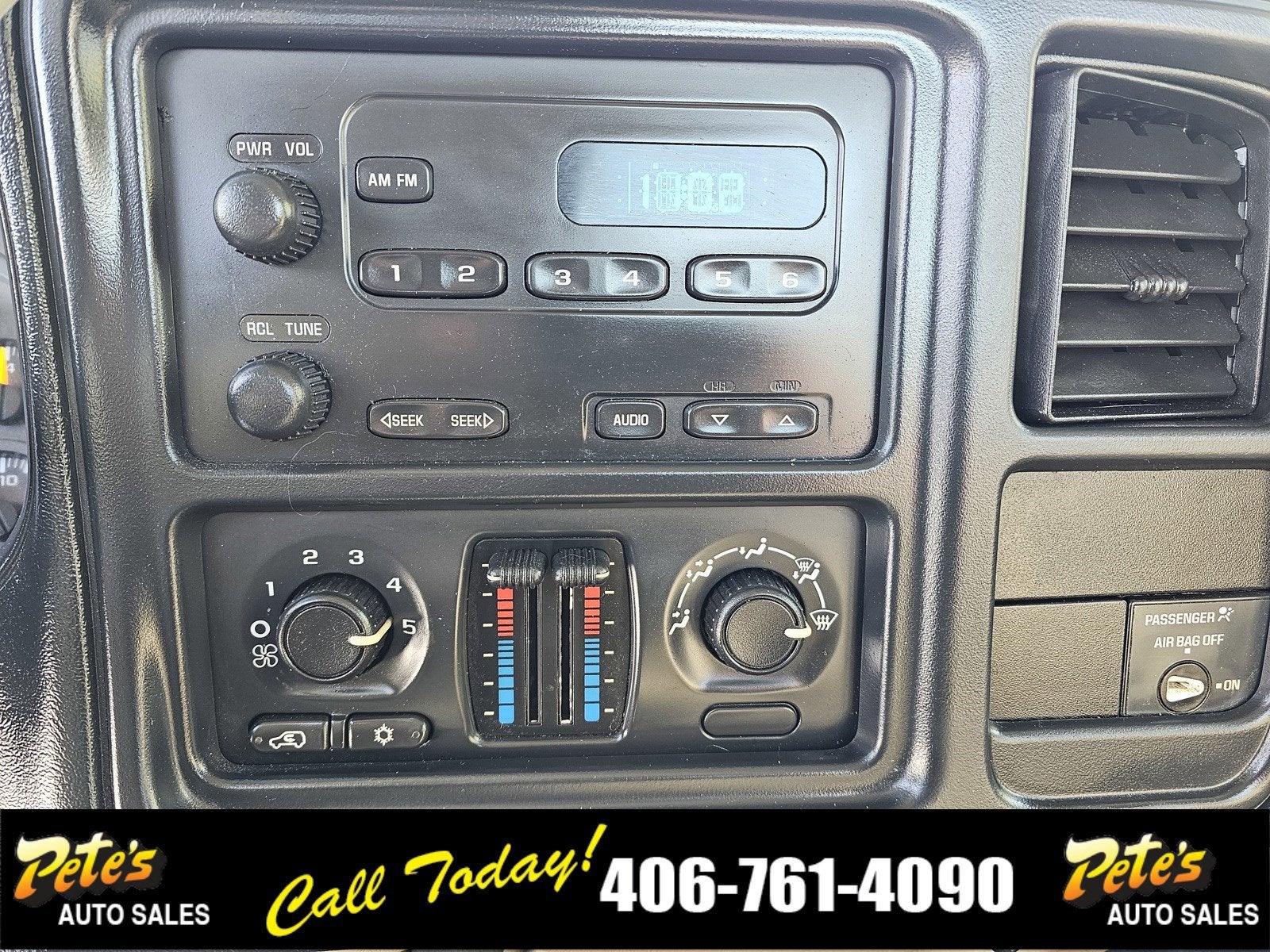

• Sound system, ETR AM/FM stereo, includes seek-and-scan and digital clock
• Steering wheel, steel sleeve, includes theft-deterrent locking feature
• Theft-deterrent system, PASSLock II
• Visors, padded, Shale-colored, driver and passenger side with cloth trim, extenders, pocket on driver side and vanity mirror on passenger side
• Warning tones, headlamp on, key-in-ignition, driver and passenger seat belt reminder, turn signal on

• Alternator, 105 amps

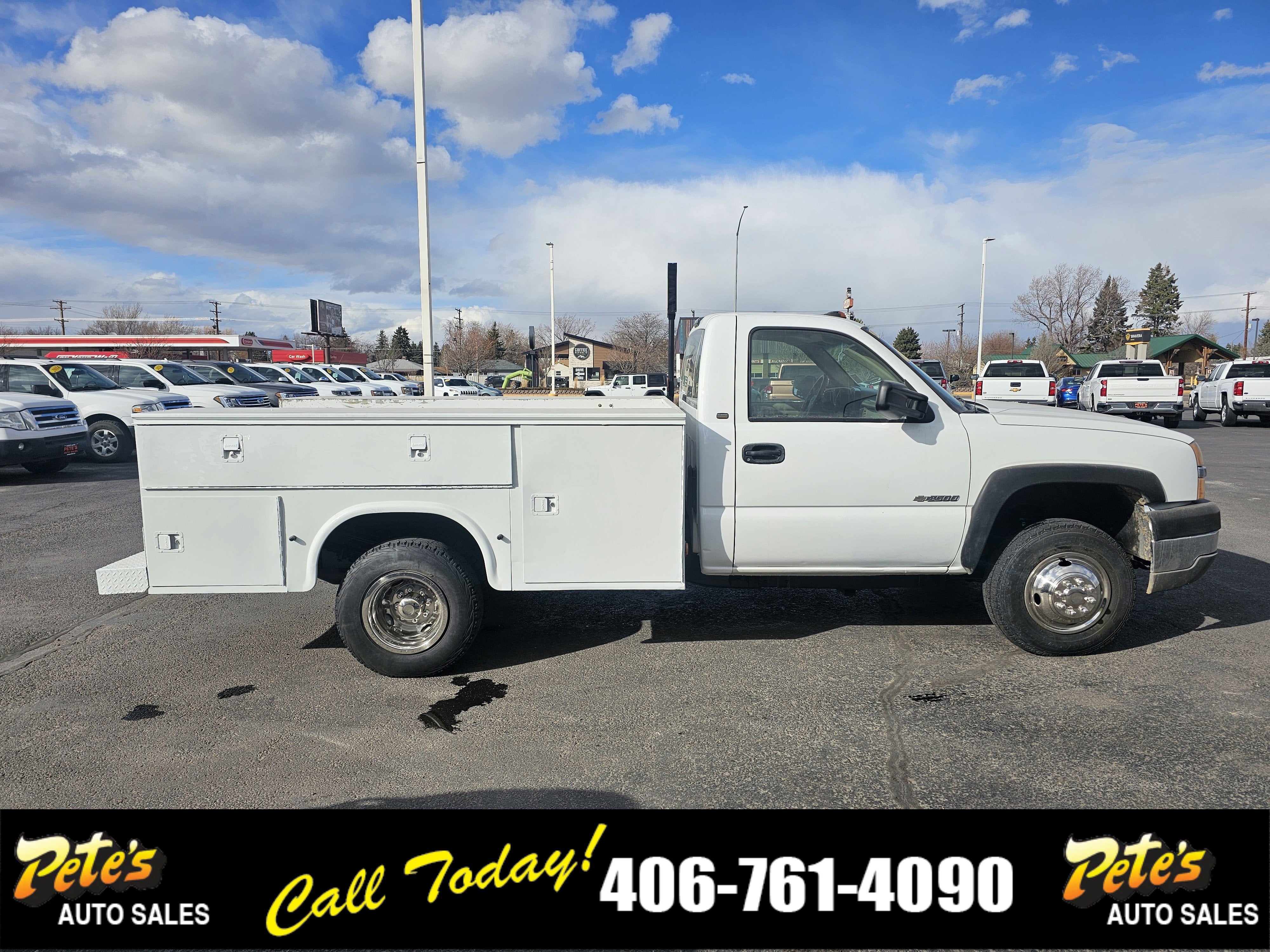

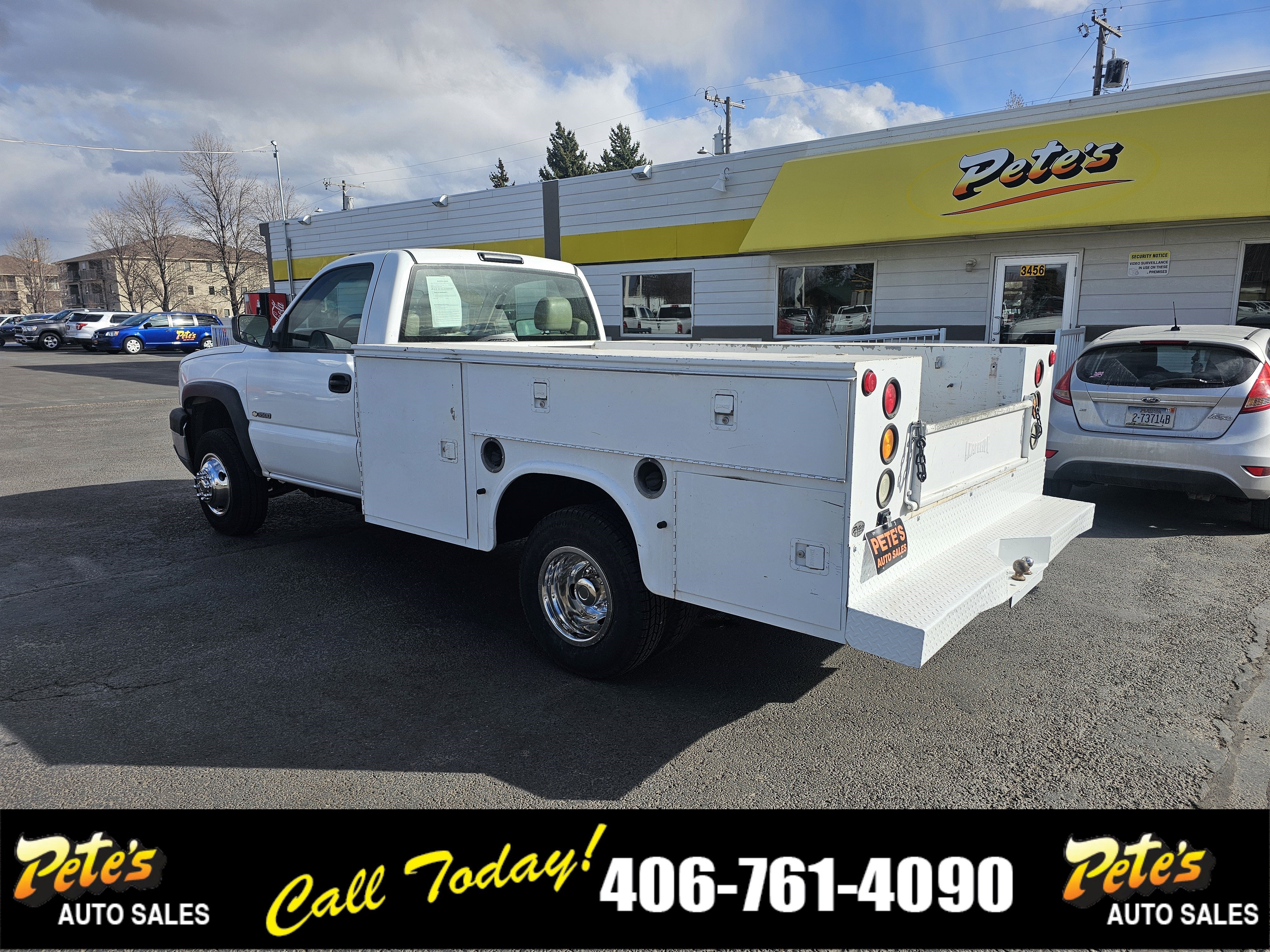

• Body, Chassis Cab
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, ladder-type
• Fuel capacity, approximate, 50 gallon
• GVWR, 12,000 lbs. (5443 kg) (Standard with 4WD models only.)
• Recovery hooks, 2 front, frame-mounted (Standard with 4WD models only.)
• Steering, power
• Suspension Package, Handling/Trailering, heavy-duty
• Suspension, front, independent torsion bar, and stabilizer bar
• Suspension, rear, 3-stage springs

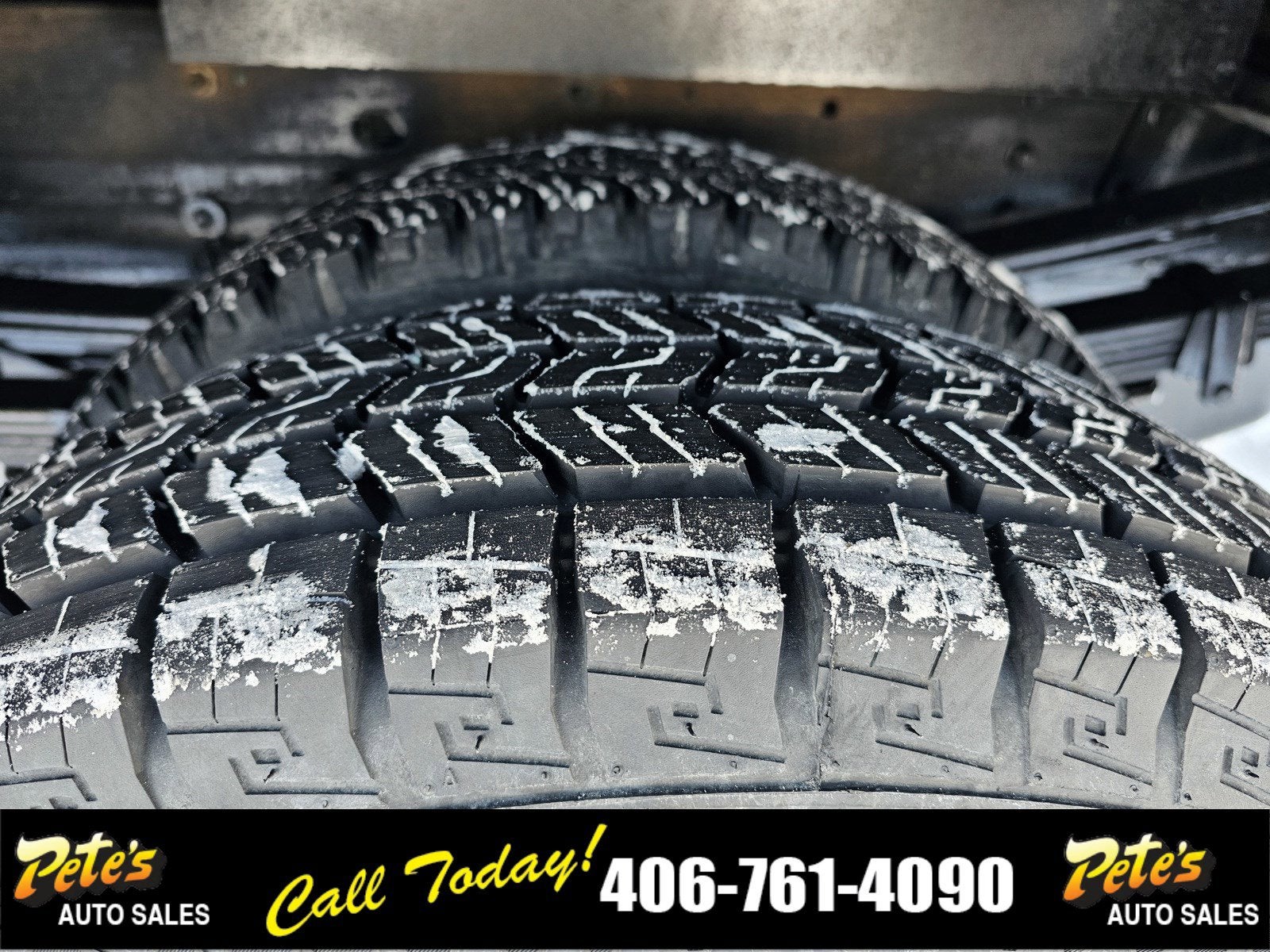

• Tires, LT215/85R16D, all-season, blackwall (Requires and standard on CC36003, CC36053, CC36403 or CK36003 Models. Not available with (VYU) Snow Plow Prep Package on CK36003 Model. Includes 6 tires.)
• Tools, mechanical jack and wheel wrench, spare tire assist hook, floor-mounted in back of cab
• Trailering wiring harness, 7-wire

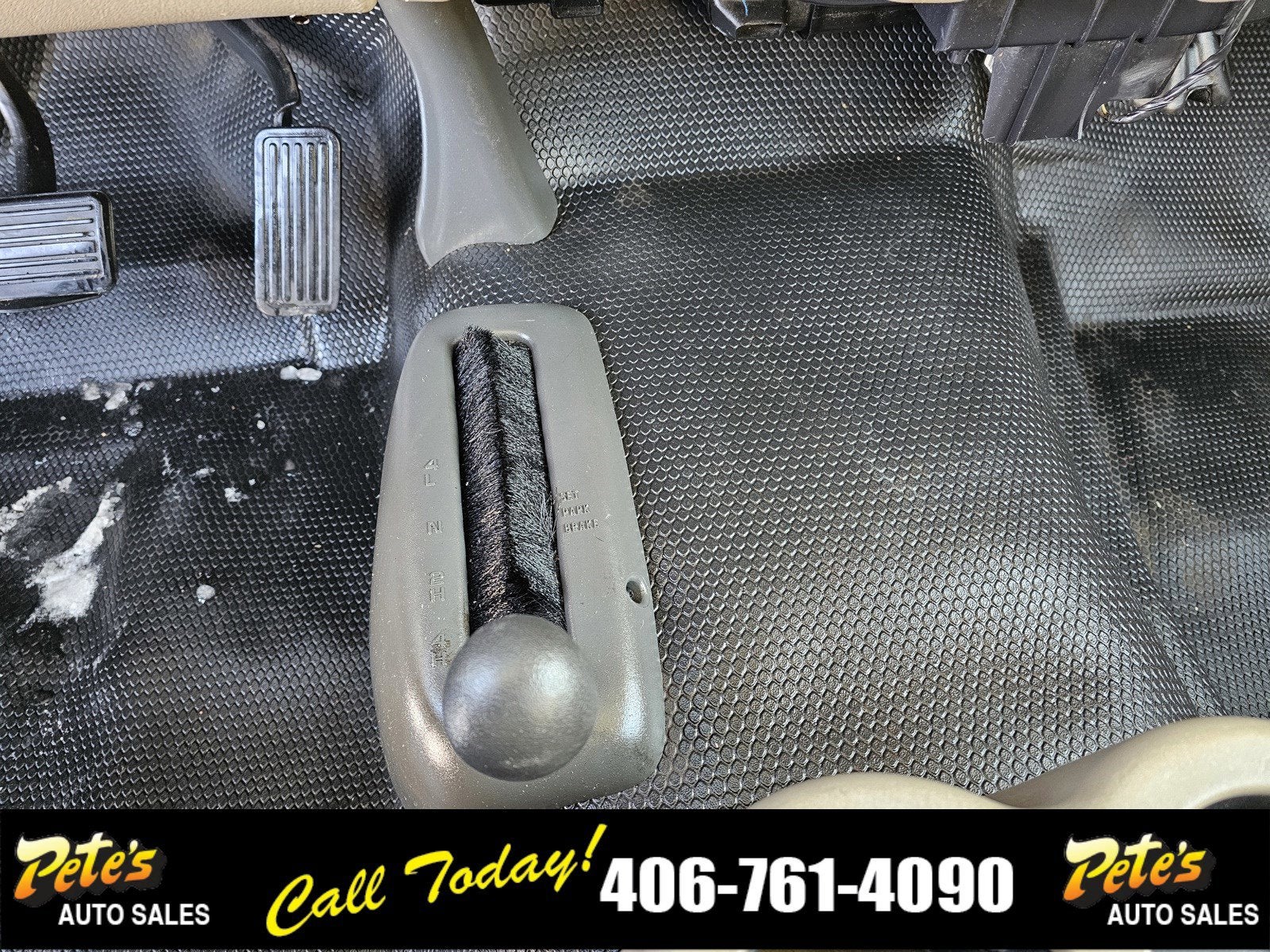

• Transfer case, floor-mounted shifter (Standard with 4WD models. Requires (AE7) Seats, front 40/20/40 split-bench.)

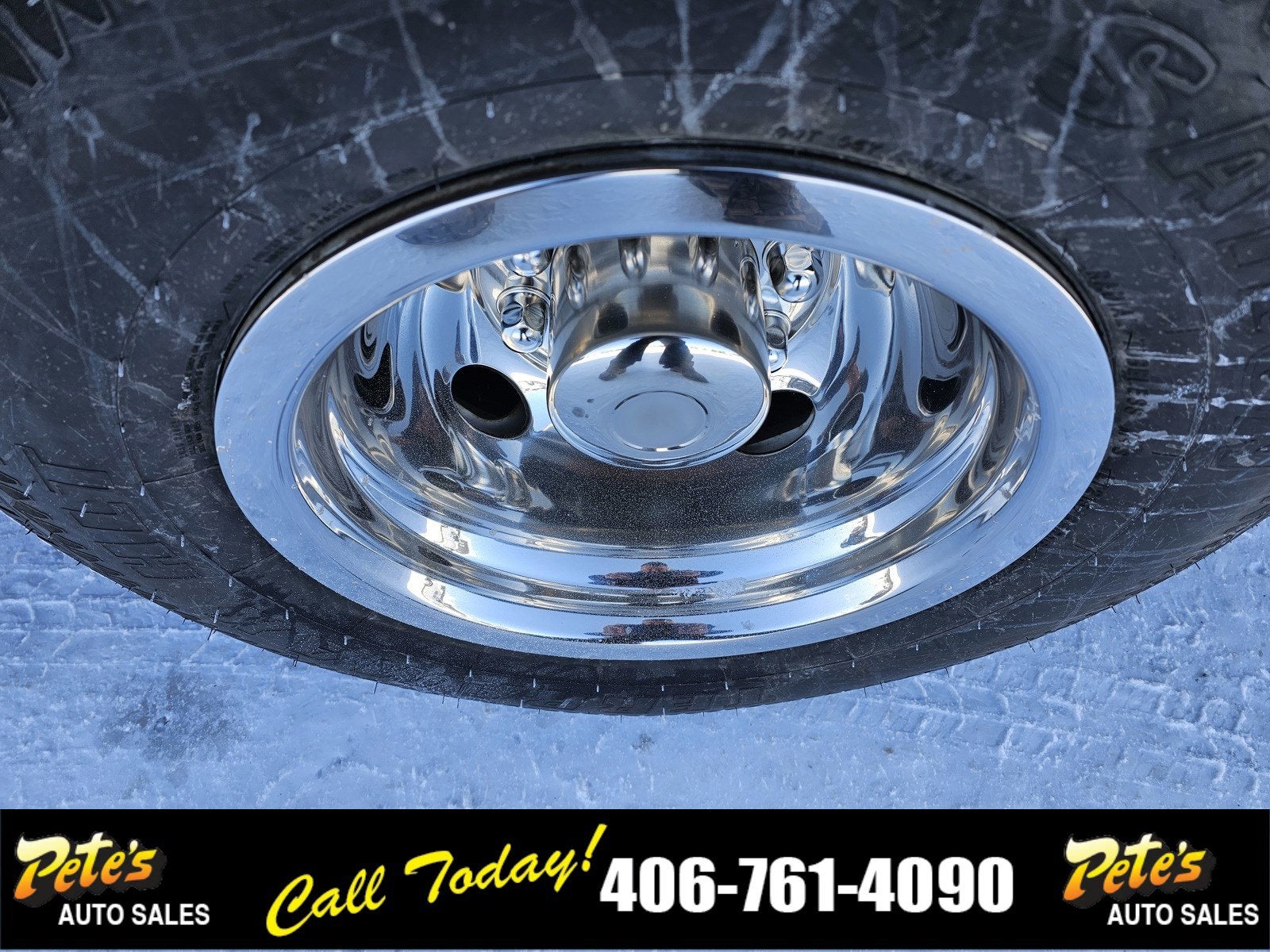

• Wheels, 6 - 16" x 6.5" (40.6 cm x 16.5 cm) 8-lug steel, painted (dual rear), includes painted center caps and steel spare

• Air bags, frontal, driver and right front passenger, includes passenger side deactivation switch (Always use safety belts and proper child restraints, even with air bags. Children are safer when properly secured in a rear seat. See the Owner's Manual for more safety information.)
• Brakes, 4-wheel antilock, 4-wheel disc
• Daytime running lamps, includes automatic exterior lamp control

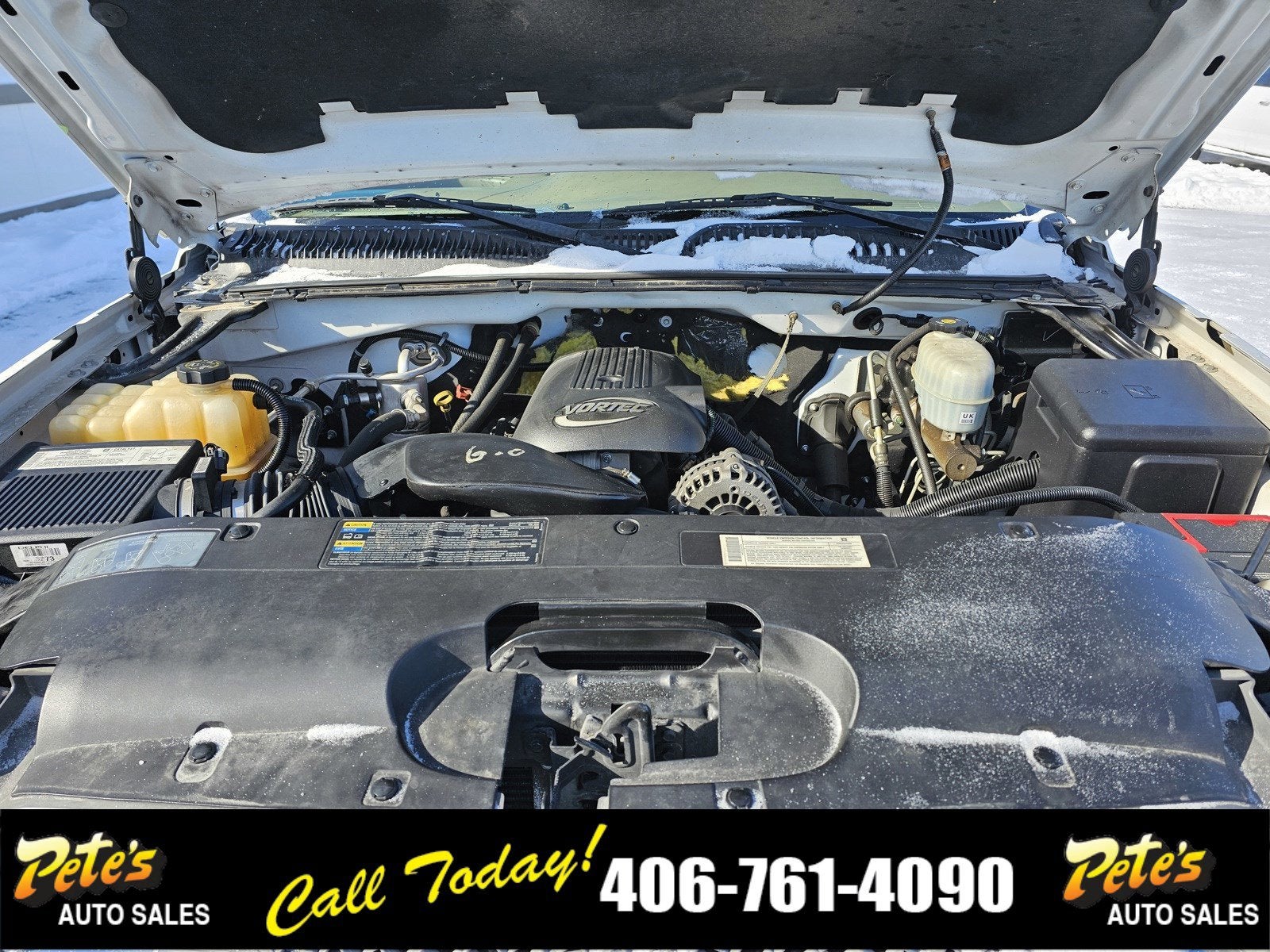

ENGINE, VORTEC 6000 V8 SFI

• (300 HP [223.8 kW] @ 4400 rpm
• 360 lb.-ft. [486.6 N-m] @ 4000 rpm) (STD)

SUSPENSION PACKAGE, HANDLING/TRAILERING, HEAVY DUTY

• (STD)

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER, DRIVER AND PASSENGER MANUAL RECLINING

• with outboard head restraints (STD)

REAR AXLE, 4.10 RATIO

• (Refer to Engine/Axle chart for availability.) (STD)

GVWR, 12,000 lbs. (5443 kg)

• (Standard with 4WD models only.) (STD)

TRANSMISSION, 4-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED WITH OVERDRIVE

• tow/haul mode and (KNP) Cooling
• external transmission oil cooler

BODY, CHASSIS CAB

• (STD)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes Standard Equipment

SKID PLATE PACKAGE

• includes aluminum front underbody shield starting behind front bumper and running to 1st cross-member
• protecting front underbody
• oil pan
• differential case and transfer case
• frame-mounted shields

MIRRORS, OUTSIDE REARVIEW, FOLDAWAY, MANUAL, CAMPER-STYLE, STAINLESS STEEL, HIGH VISIBILITY, EXTENDABLE

• includes dual segment mirror on drivers side that provides enhanced wide angle capacity (not recommended for bodies or trailers wider than 86" [218.4 cm])

SOUND SYSTEM, ETR AM/FM STEREO

• includes seek-and-scan and digital clock (STD)

PAINT, SOLID

• (STD)

ALTERNATOR, 145 AMP

• 145 amp alternator in place of the standard 105 amp alternator

SEAT TRIM, VINYL

• (STD)

• ENGINE VORTEC 6000 V8 SFI (300 HP [223.8 kW] @ 4400 rpm 360 lb.-ft. [486.6 N-m] @ 4000 rpm) (STD)
• SUSPENSION PACKAGE HANDLING/TRAILERING HEAVY DUTY (STD)
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND PASSENGER MANUAL RECLINING with outboard head restraints (STD)
• REAR AXLE 4.10 RATIO (Refer to Engine/Axle chart for availability.) (STD)
• TIRES LT215/85R16D ON-/OFF-ROAD BLACKWALL
• GVWR 12 000 lbs. (5443 kg) (Standard with 4WD models only.) (STD)
• TRANSMISSION 4-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED WITH OVERDRIVE tow/haul mode and (KNP) Cooling external transmission oil cooler
• BODY CHASSIS CAB (STD)
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes Standard Equipment
• SKID PLATE PACKAGE includes aluminum front underbody shield starting behind front bumper and running to 1st cross-member protecting front underbody oil pan differential case and transfer case frame-mounted shields
• MIRRORS OUTSIDE REARVIEW FOLDAWAY MANUAL CAMPER-STYLE STAINLESS STEEL HIGH VISIBILITY EXTENDABLE includes dual segment mirror on drivers side that provides enhanced wide angle capacity (not recommended for bodies or trailers wider than 86 [218.4 cm])
• SOUND SYSTEM ETR AM/FM STEREO includes seek-and-scan and digital clock (STD)
• COOLING EXTERNAL TRANSMISSION OIL COOLER AUXILIARY HEAVY-DUTY AIR-TO-OIL
• PAINT SOLID (STD)
• ALTERNATOR 145 AMP 145 amp alternator in place of the standard 105 amp alternator
• SEAT TRIM VINYL (STD)
• Four Wheel Drive
• Tow Hooks
• Tires - Front All-Season
• Tires - Rear All-Season
• Dual Rear Wheels
• Steel Wheels
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Automatic Headlights
• Daytime Running Lights
• Automatic Headlights
• Intermittent Wipers
• Vinyl Seats
• Split Bench Seat
• Adjustable Steering Wheel
• Immobilizer
• Multi-Zone A/C
• A/C
• AM/FM Stereo
• Power Outlet
• Passenger Vanity Mirror
• Front Reading Lamps
• ABS
• 4-Wheel Disc Brakes
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Daytime Running Lights
• Automatic Headlights

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 105
• Cooling System
• Total Cooling System Capacity (qts): 12.62
• Total Cooling System Capacity (qts): 15.5
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4670
• Gross Axle Wt Rating - Rear (lbs): 8600
• Curb Weight - Front (lbs): 3186
• Curb Weight - Rear (lbs): 2253
• Gross Vehicle Weight Rating Cap (lbs): 12,000
• Gross Combined Wt Rating (lbs): 16000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): N/A
• Dead Weight Hitch - Max Tongue Wt. (lbs): N/A
• Wt Distributing Hitch - Max Trailer Wt. (lbs): N/A
• Wt Distributing Hitch - Max Tongue Wt. (lbs): N/A
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): N/A
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): N/A
• Suspension
• Suspension Type - Front: Indep Torsion Bar
• Suspension Type - Rear: 3-Stage Spring
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 8600
• Axle Type - Front: Independent Driving
• Axle Type - Rear: Full Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 9200
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.25
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 12.8 x 1.2
• Tires
• Front Tire Order Code: XYL
• Front Tire Order Code: XYK
• Rear Tire Order Code: XYL
• Rear Tire Order Code: XYK
• Front Tire Size: LT215/85R16D
• Rear Tire Size: LT215/85R16D
• Front Tire Capacity (lbs): 2335
• Rear Tire Capacity (lbs): 2150
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 24.0
• Steering Ratio (:1), At Lock: 3.14
• Turning Diameter - Curb to Curb (ft): 44.9
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 27
• Aux Fuel Tank Capacity, Approx (gal): 23
• Fuel Tank Location: Inboard LH Frame
• Aux Fuel Tank Location: Rear
• Exterior Dimensions
• Wheelbase (in): 137.0
• Length, Overall w/o rear bumper (in): 225.0
• Width, Max w/o mirrors (in): 86.0
• Height, Overall (in): 76.0
• Overhang, Front (in): 37.0
• Overhang, Rear w/o bumper (in): 51.0
• Front Bumper to Back of Cab (in): 113.6
• Cab to Axle (in): 60.4
• Cab to End of Frame (in): 111.4
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 41.1
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.7
• Front Hip Room (in): 61.5
• Summary

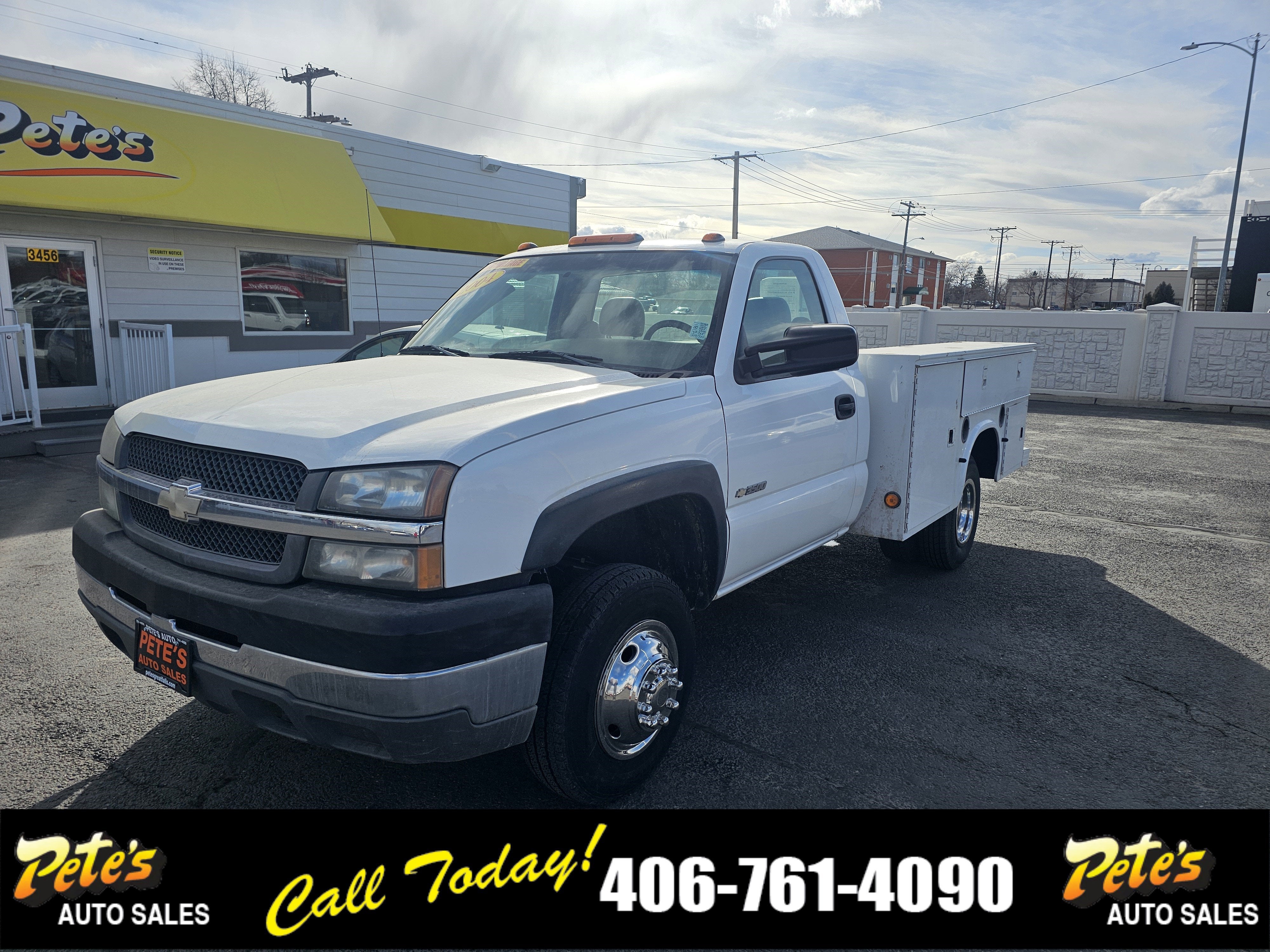

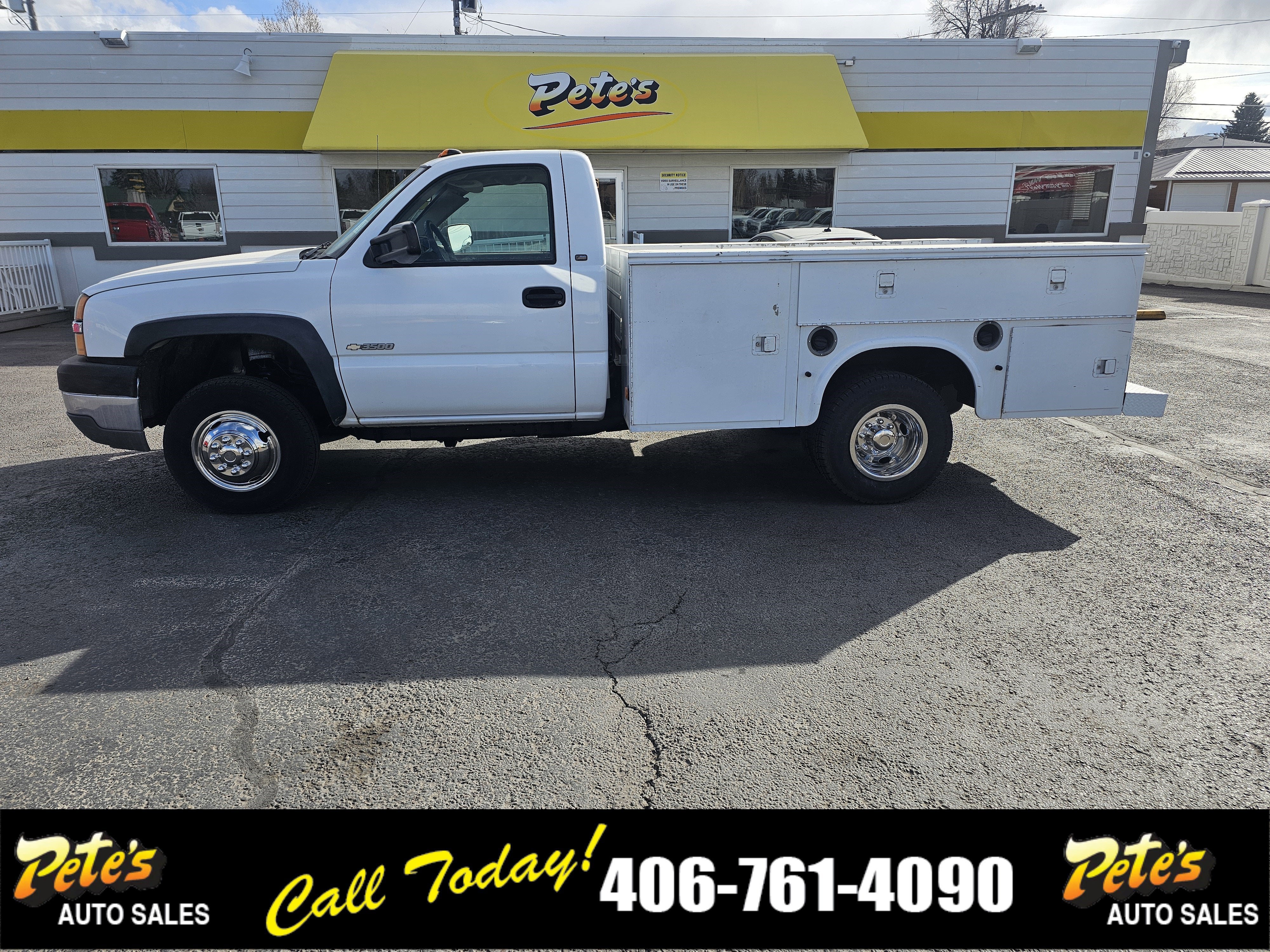

• Vehicle Name: Chevrolet Silverado 3500
• Body Style: Reg Cab 137.0" Wheelbase
• Body Code: ZW9
