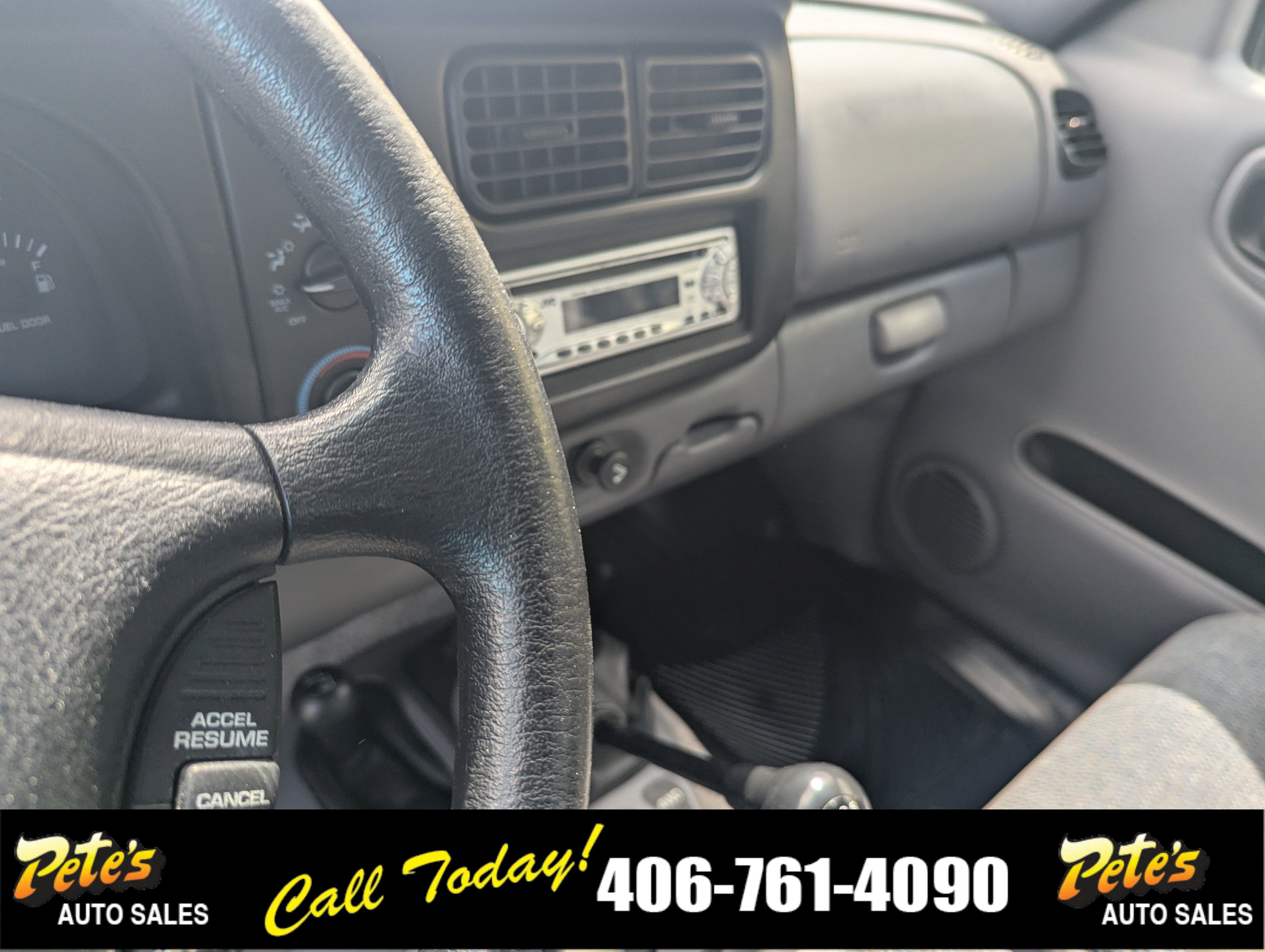

• Black sport steering wheel
• Cigar lighter
• Day/night rearview mirror

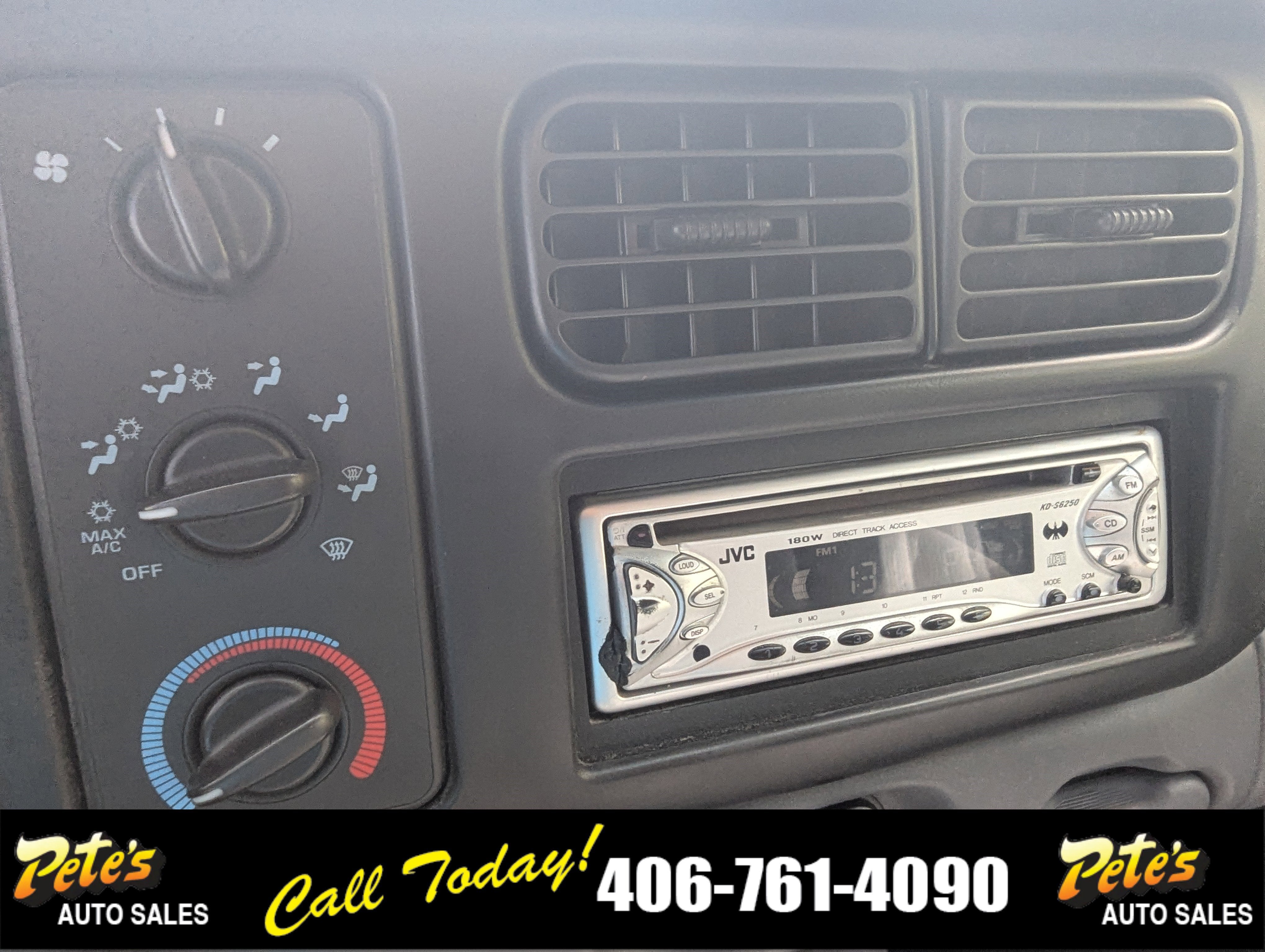

• Electronic AM/FM stereo radio w/cassette
• Hood release in cab
• Instrument panel w/side window demisters
• Side window demisters

• 117-amp alternator
• 1450# payload pkg-inc: 5240 GVWR (3166 front/3000 rear), springs (3400 front/3000 rear), axles (3400 front/3850 rear)

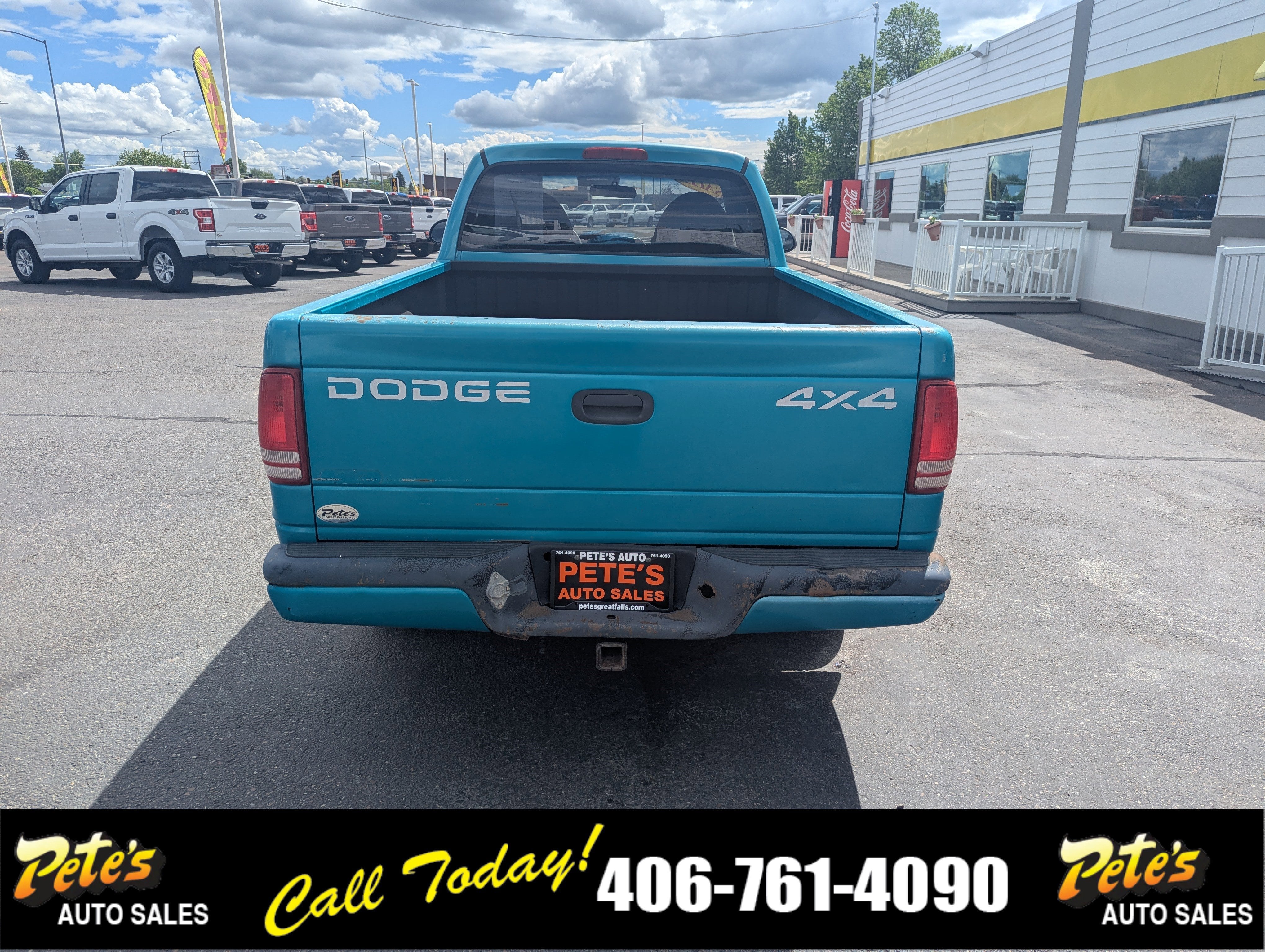

• 6.5' pickup box-inc: double wall construction, 2-tier loading, easy-off tailgate
• 600-amp maintenance-free battery

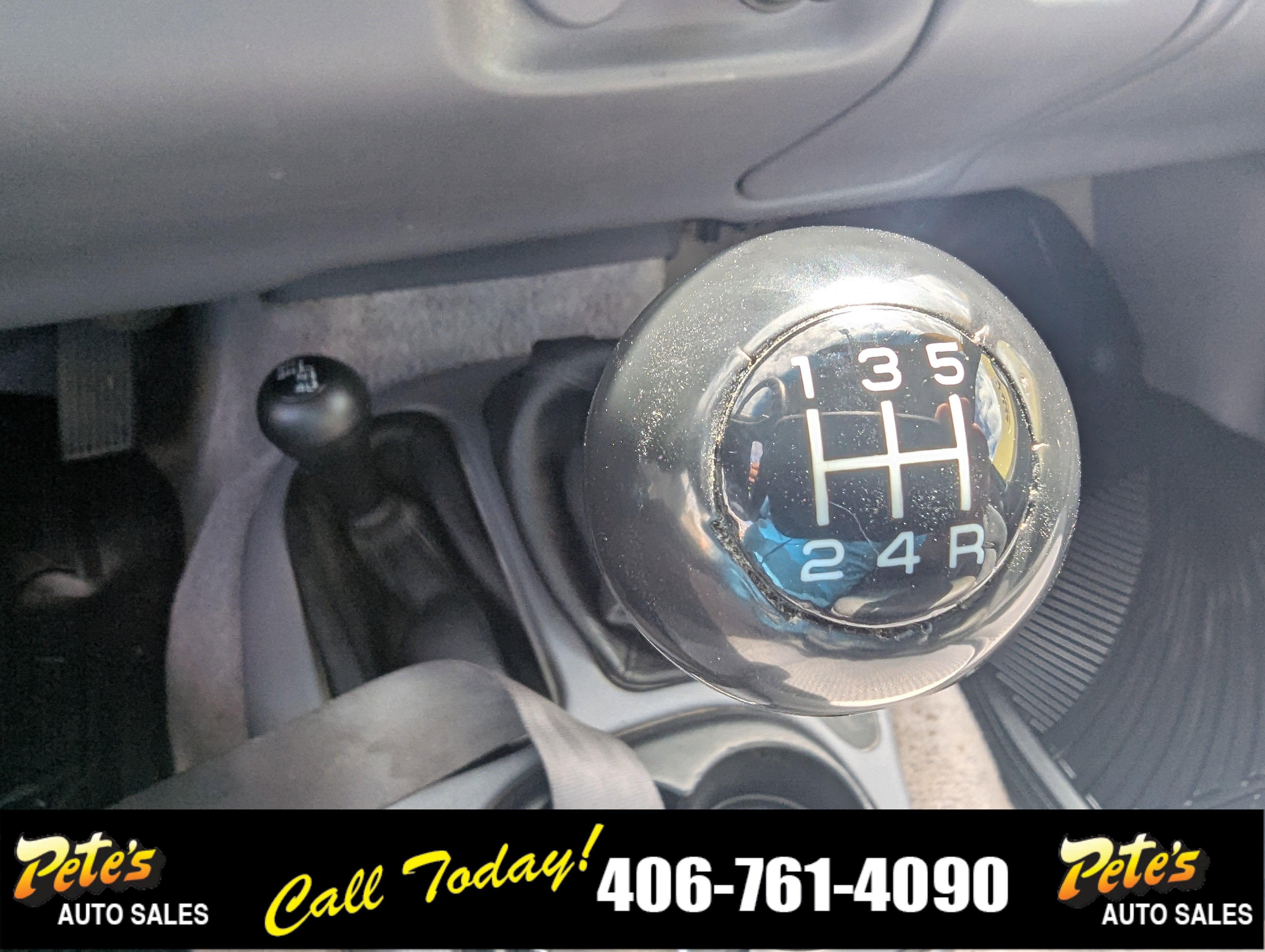

• 9.0" diameter hydraulic clutch
• Conventional spare tire & wheel w/underslung spare tire carrier
• Four wheel drive
• Front stabilizer bar
• HD front/rear shock absorbers
• High strength 35,000 PSI carbon steel frame
• Independent front suspension
• NV231 2-speed synchronized transfer case
• Pwr front disc/rear drum brakes
• Pwr rack & pinion steering

• 3-point outboard seating position unibelts w/front height adjusters, center lap belts
• Driver & front passenger air bag
• Single electric horn

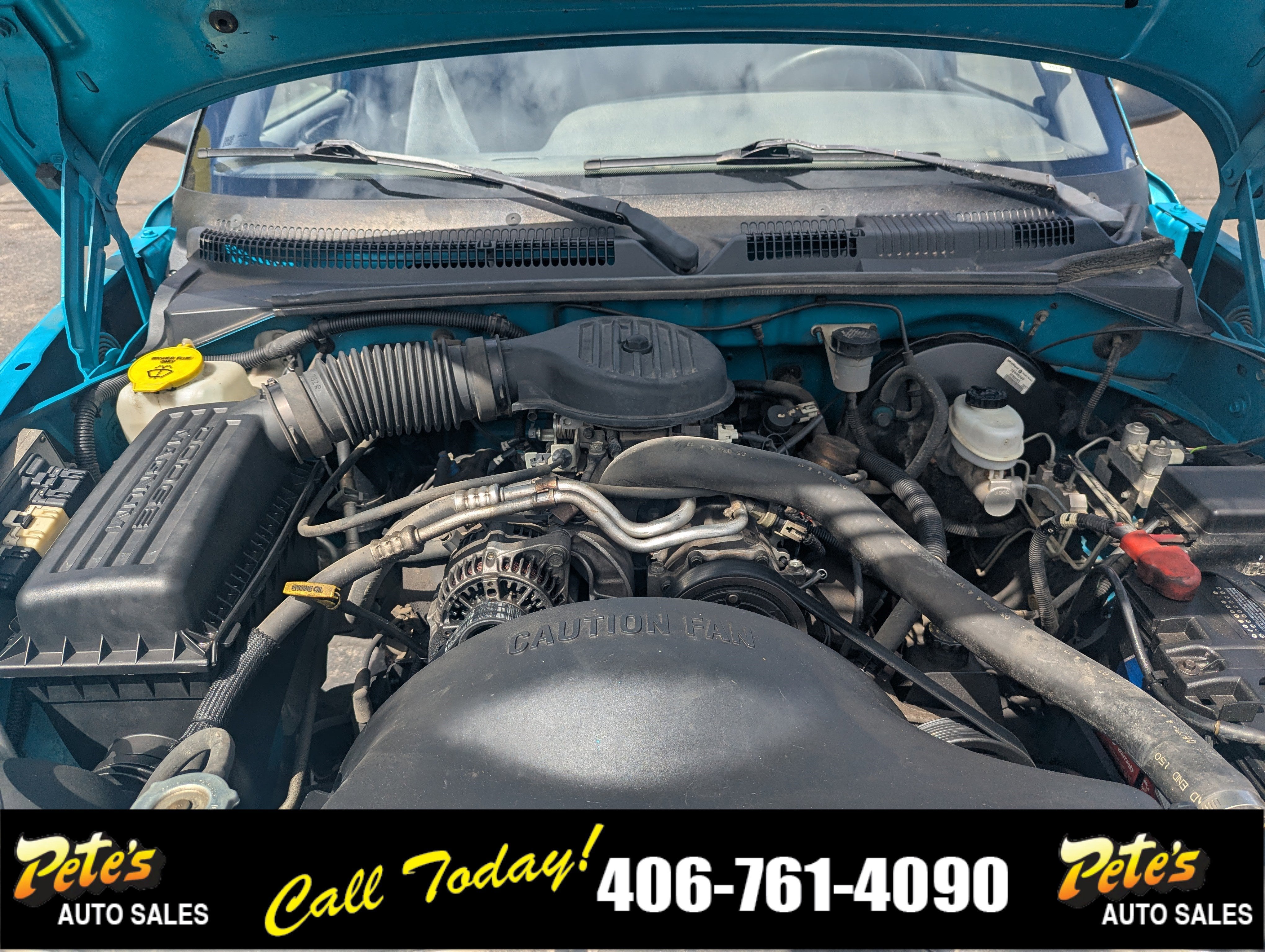

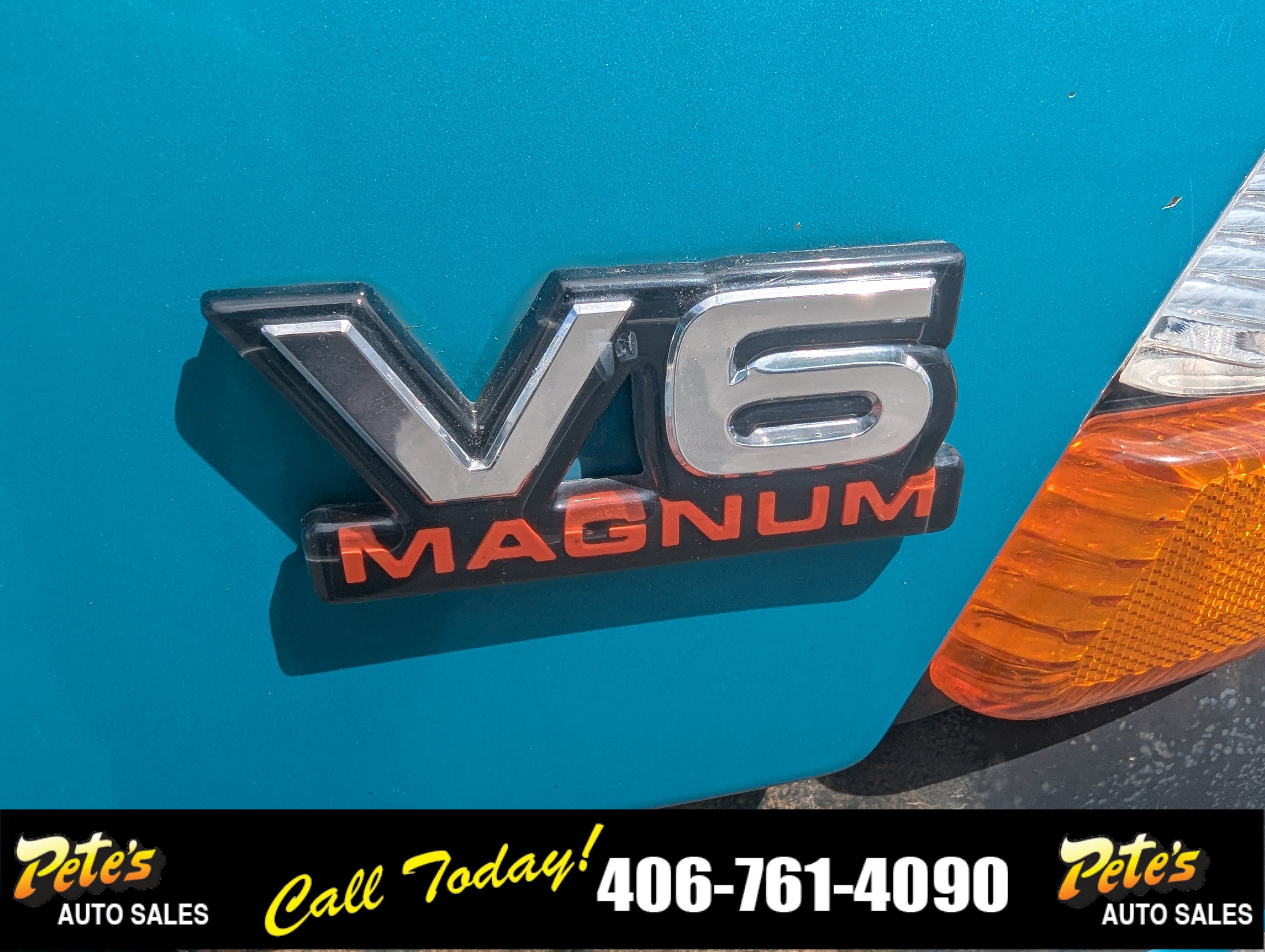

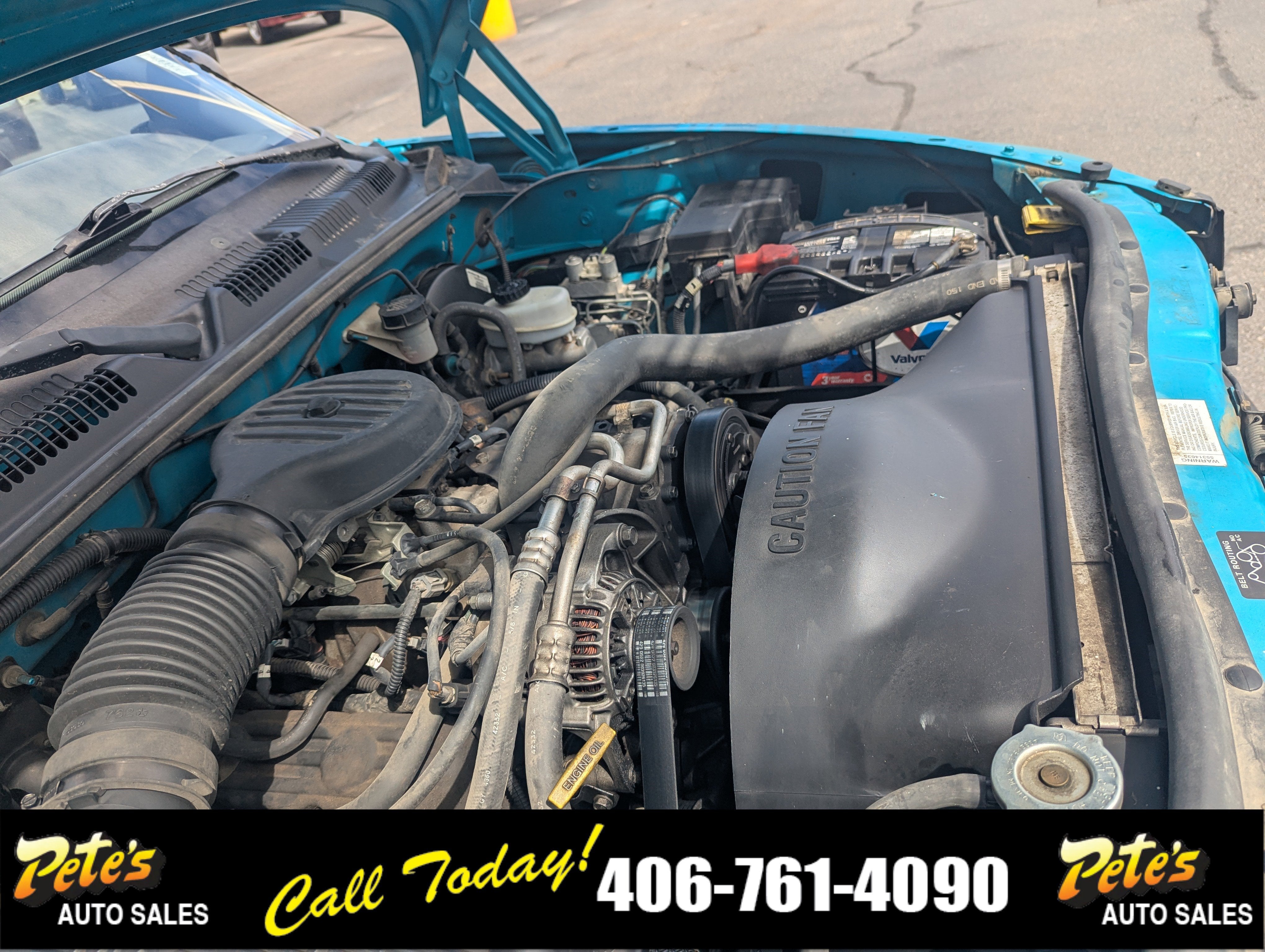

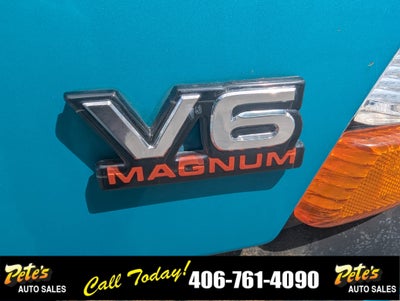

3.9L (239) MPI V6 "MAGNUM" ENGINE

• (STD)

• Four Wheel Drive
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Power Steering
• Front Disc/Rear Drum Brakes
• Intermittent Wipers
• AM/FM Stereo
• Cassette
• Driver Air Bag
• Passenger Air Bag

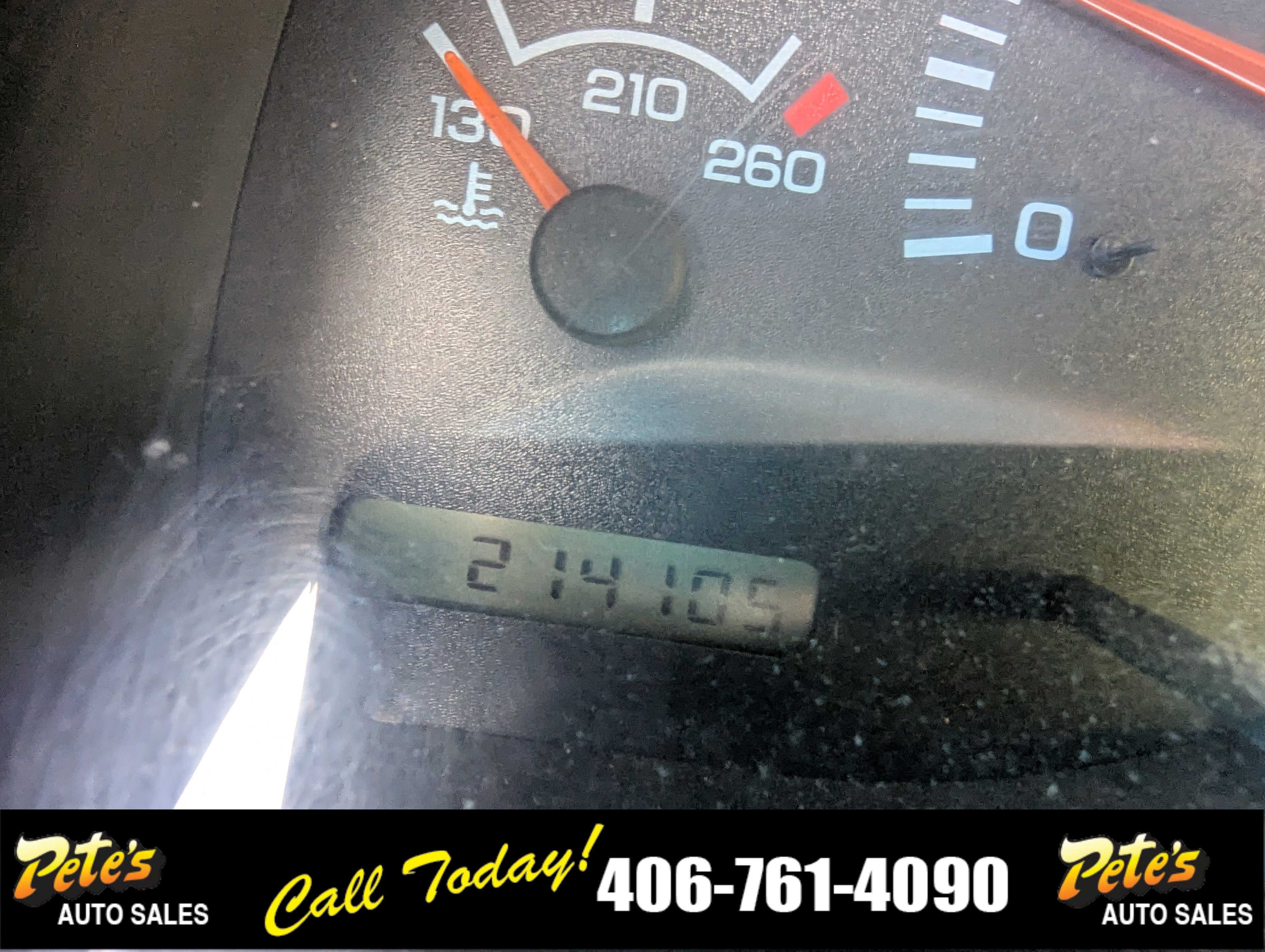

• Mileage
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 19
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 117
• Maximum Alternator Watts: 1404
• Cooling System
• Total Cooling System Capacity (qts): 14.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3166
• Gross Axle Wt Rating - Rear (lbs): 3000
• Curb Weight - Front (lbs): 2237
• Curb Weight - Rear (lbs): 1530
• Gross Vehicle Weight Rating Cap (lbs): 5240
• Gross Combined Wt Rating (lbs): 8000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 10,000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 700
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: Leaf Spring
• Spring Capacity - Front (lbs): 3400
• Spring Capacity - Rear (lbs): 3000
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating Hypoid
• Axle Capacity - Front (lbs): 3400
• Axle Capacity - Rear (lbs): 3850
• Axle Ratio (:1) - Front: 3.55
• Axle Ratio (:1) - Rear: 3.55
• Shock Absorber Diameter - Front (mm): 30.2
• Shock Absorber Diameter - Rear (mm): 30.2
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Power
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.3 x 0.9
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 9 x 2.5

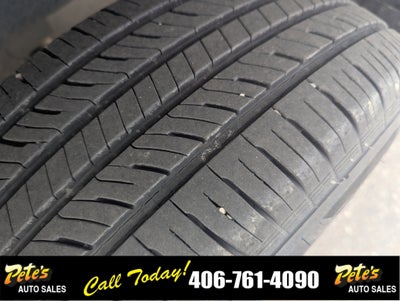

• Tires
• Front Tire Order Code: TS2
• Rear Tire Order Code: TS2
• Spare Tire Order Code: TS2

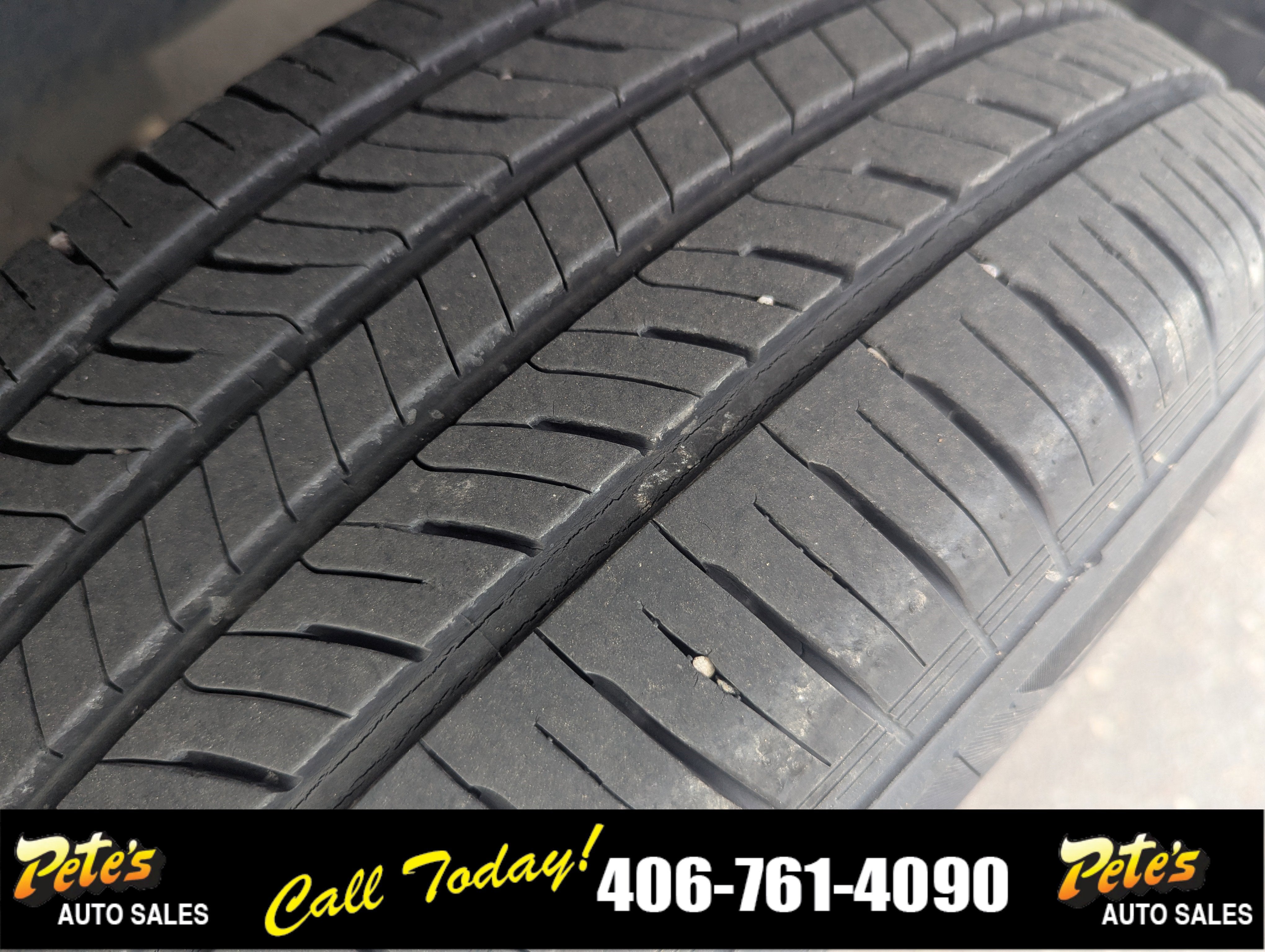

• Front Tire Size: P235/75R15
• Rear Tire Size: P235/75R15
• Spare Tire Size: P235/75R15
• Front Tire Capacity (lbs): 1985
• Rear Tire Capacity (lbs): 1985
• Spare Tire Capacity (lbs): 1985
• Revolutions/Mile @ 45 mph - Front: 724
• Revolutions/Mile @ 45 mph - Rear: 724
• Revolutions/Mile @ 45 mph - Spare: 724
• Wheels

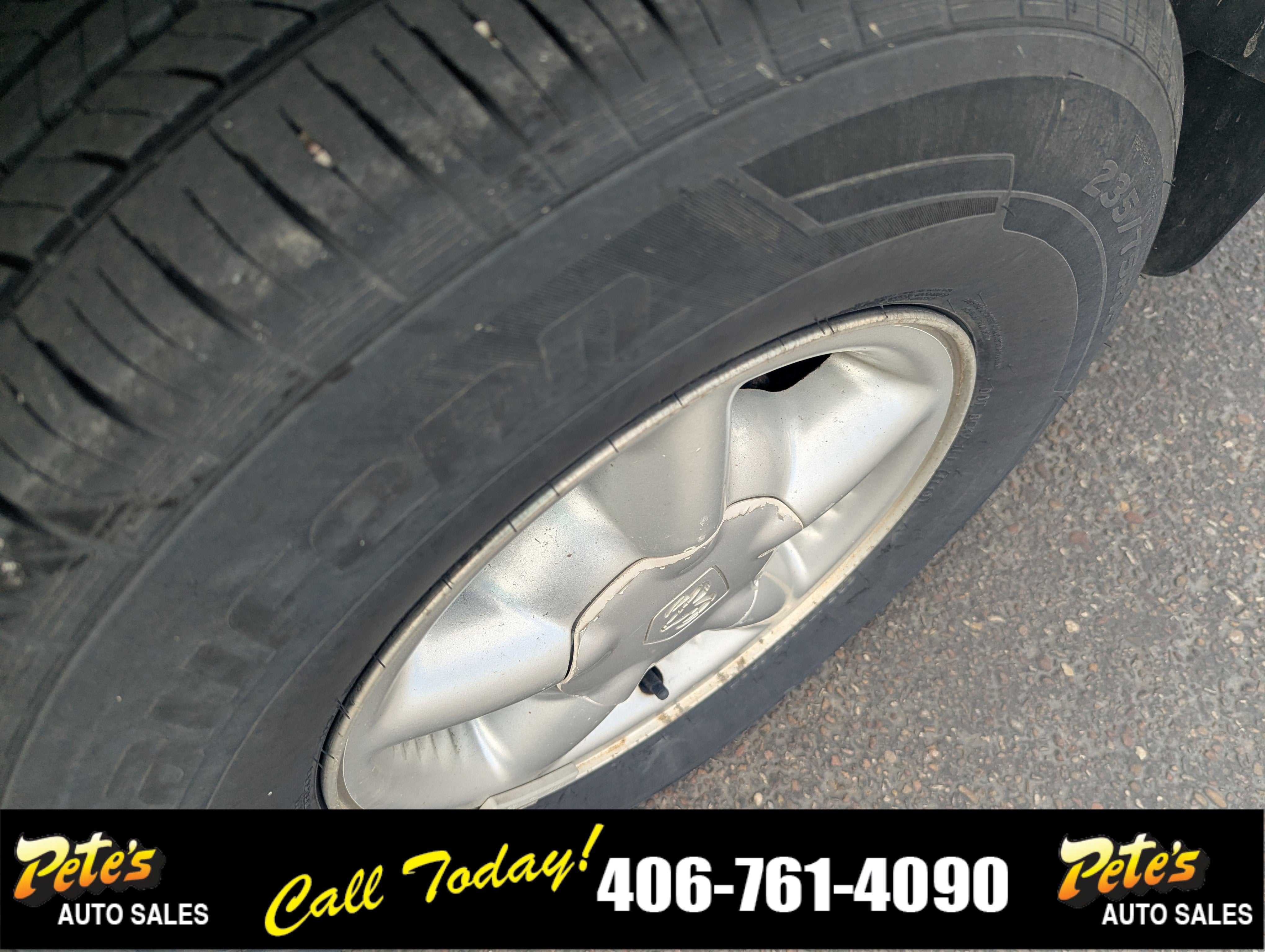

• Front Wheel Size (in): 15 x 7.0
• Rear Wheel Size (in): 15 x 7.0
• Spare Wheel Size (in): 15 x 6.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Power Rack & Pinion
• Steering Ratio (:1), On Center: 15.4
• Turning Diameter - Curb to Curb (ft): 35.8
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 22.0
• Fuel Tank Location: Inboard LH
• Exterior Dimensions
• Wheelbase (in): 111.9
• Length, Overall w/o rear bumper (in): 195.8
• Width, Max w/o mirrors (in): 71.5
• Height, Overall (in): 67.9
• Overhang, Front (in): 34.4
• Overhang, Rear w/o bumper (in): 49.4
• Front Bumper to Back of Cab (in): 103.2
• Cab to Axle (in): 38.0
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 29.0
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.4
• Ground Clearance, Rear (in): 9.7

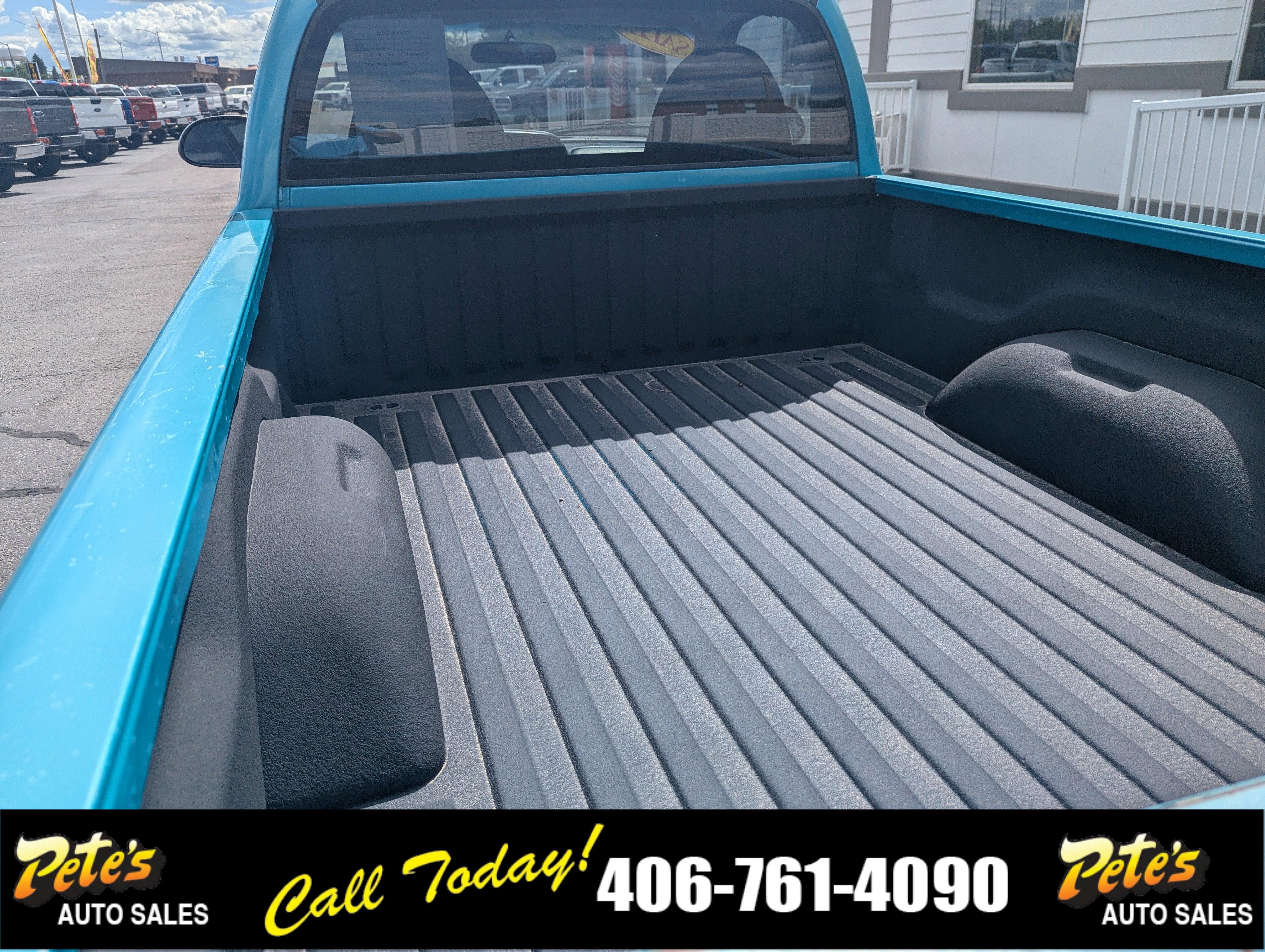

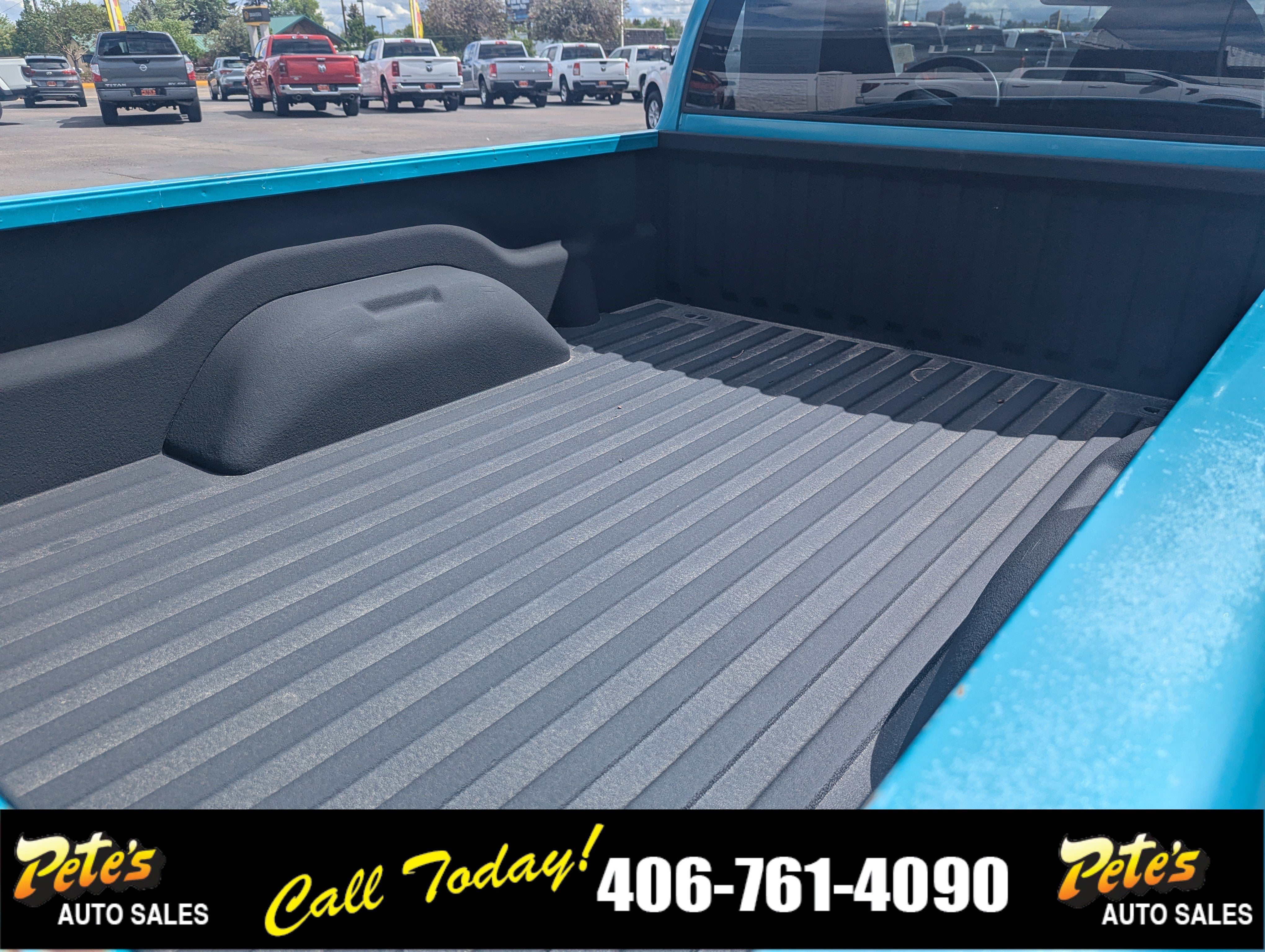

• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 77.9
• Cargo Box Width @ Top, Rear (in): 57.8
• Cargo Box Width @ Floor (in): 59.3
• Cargo Box Width @ Wheelhousings (in): 44.7
• Cargo Box (Area) Height (in): 17.6
• Tailgate Width (in): 57.8
• Cargo Volume (ft³): 47.1

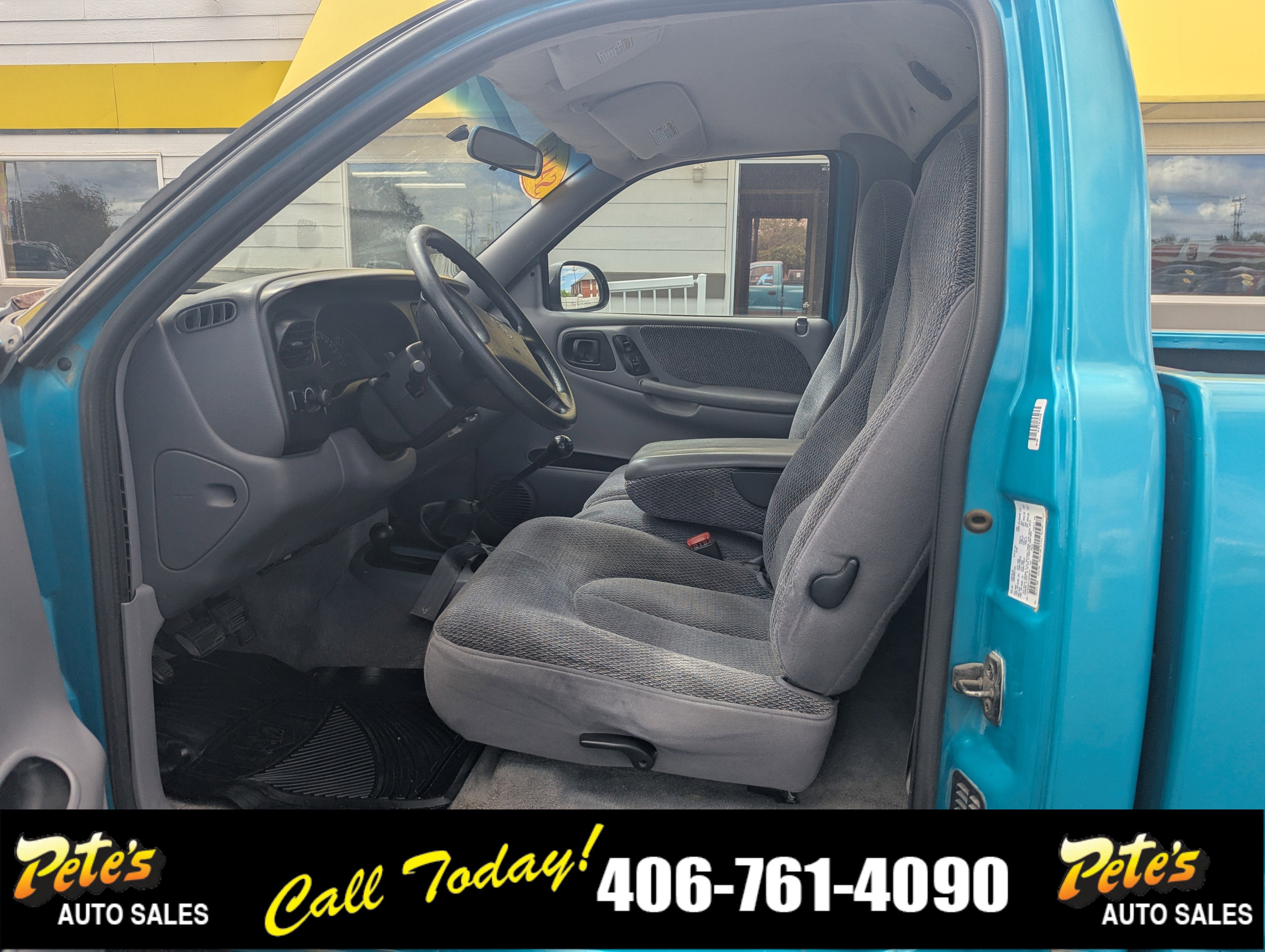

• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 40.0
• Front Leg Room (in): 41.9
• Front Shoulder Room (in): 58.1
• Front Hip Room (in): 56.7
• Summary

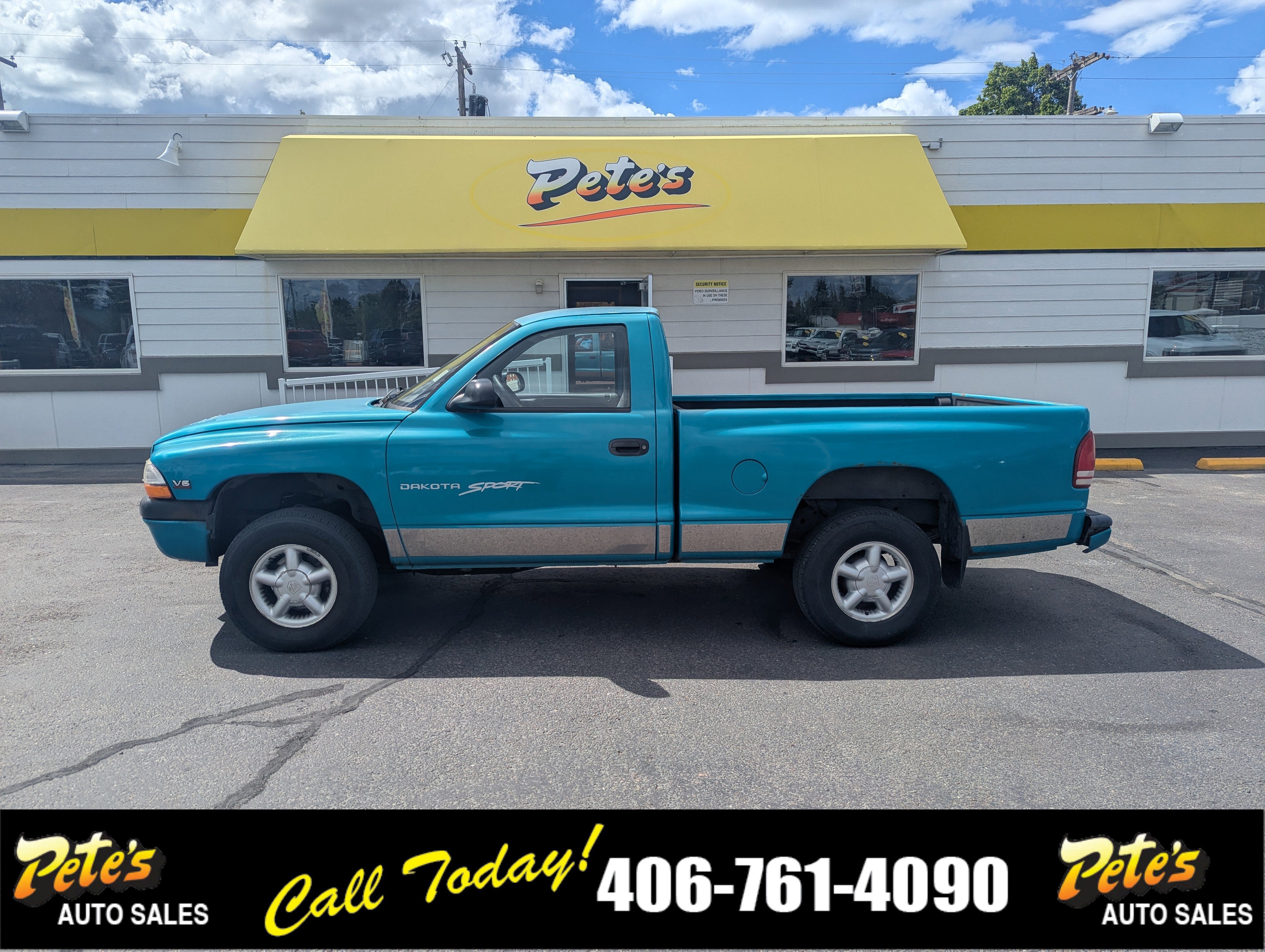

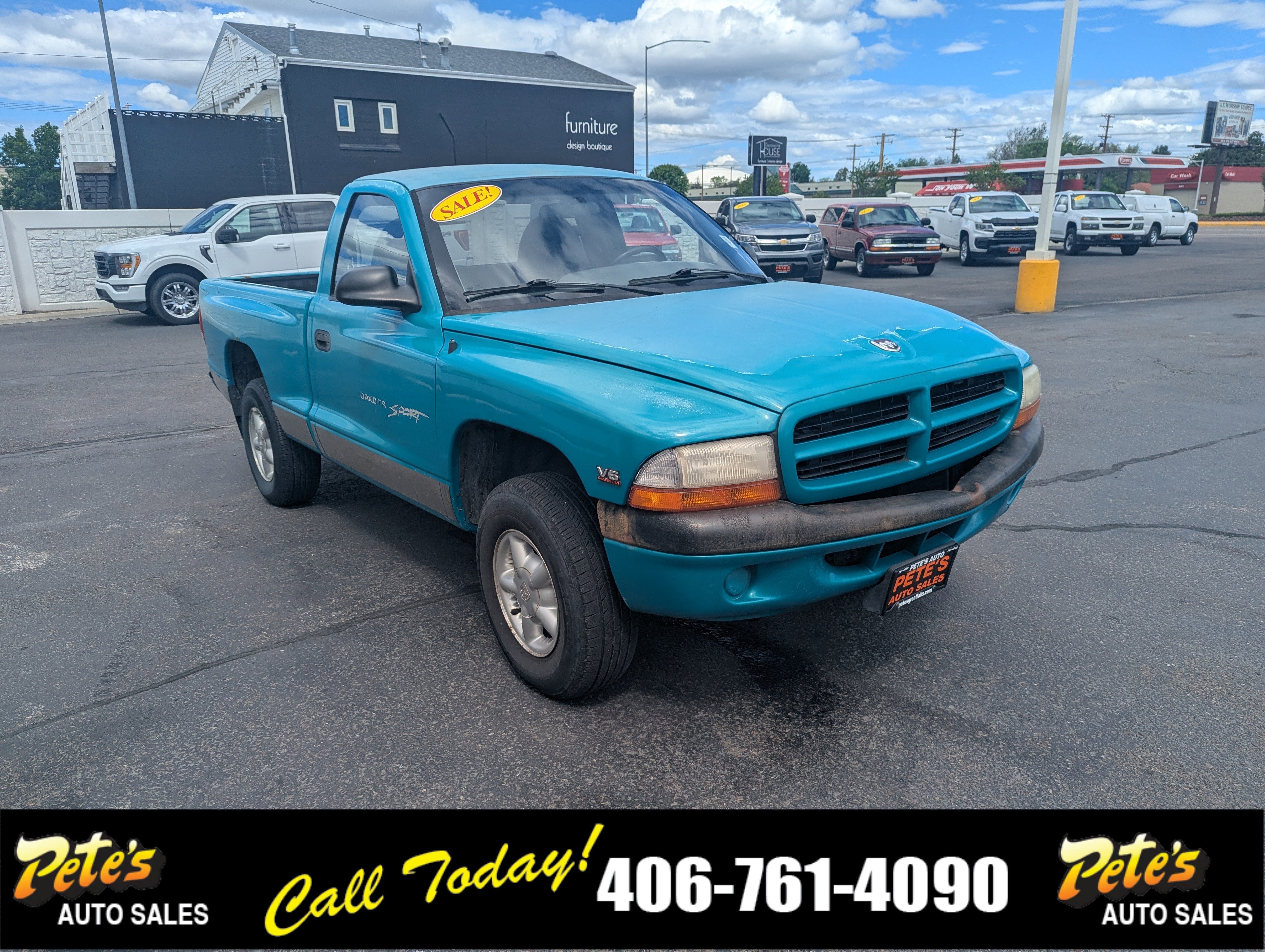

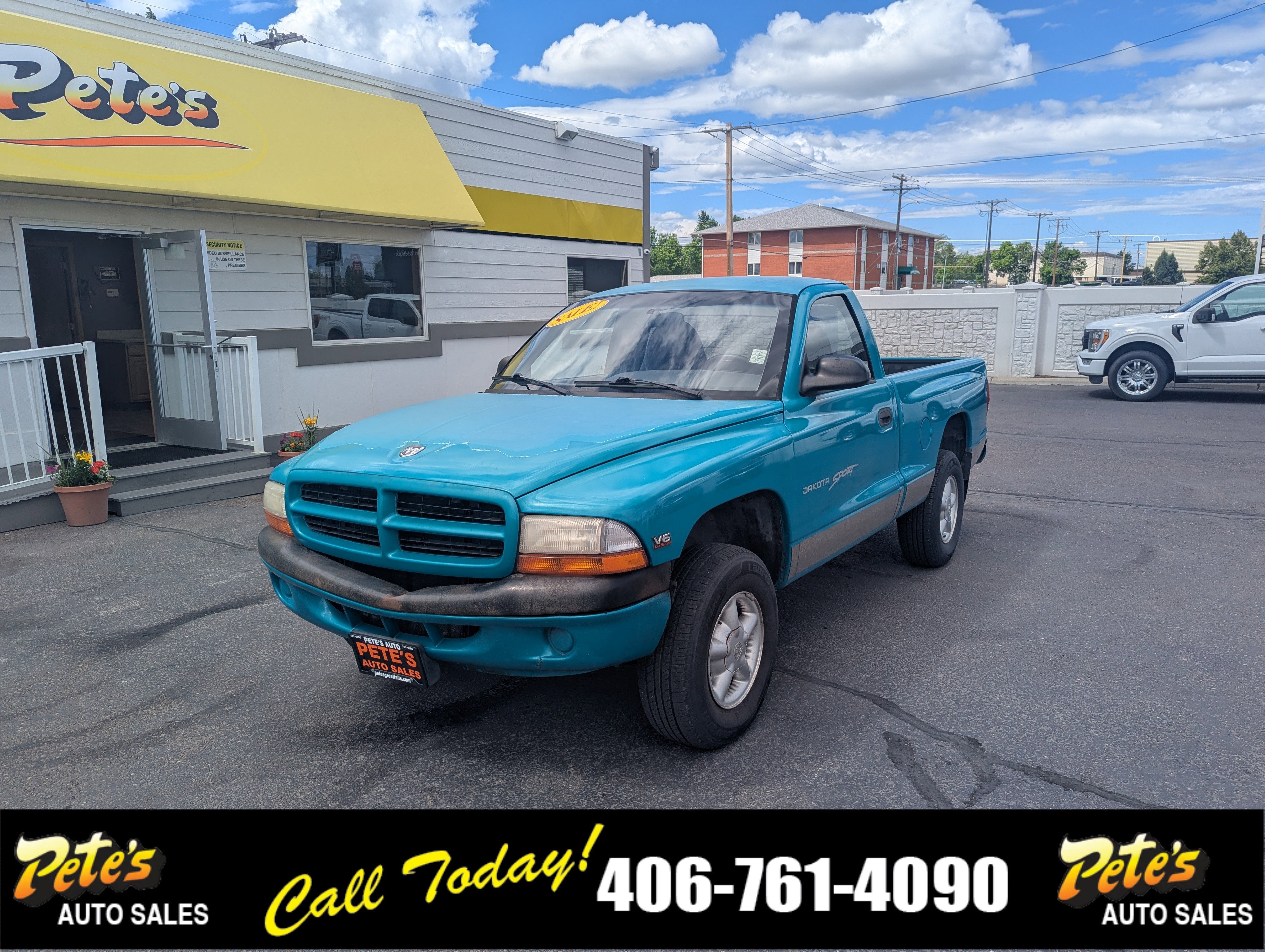

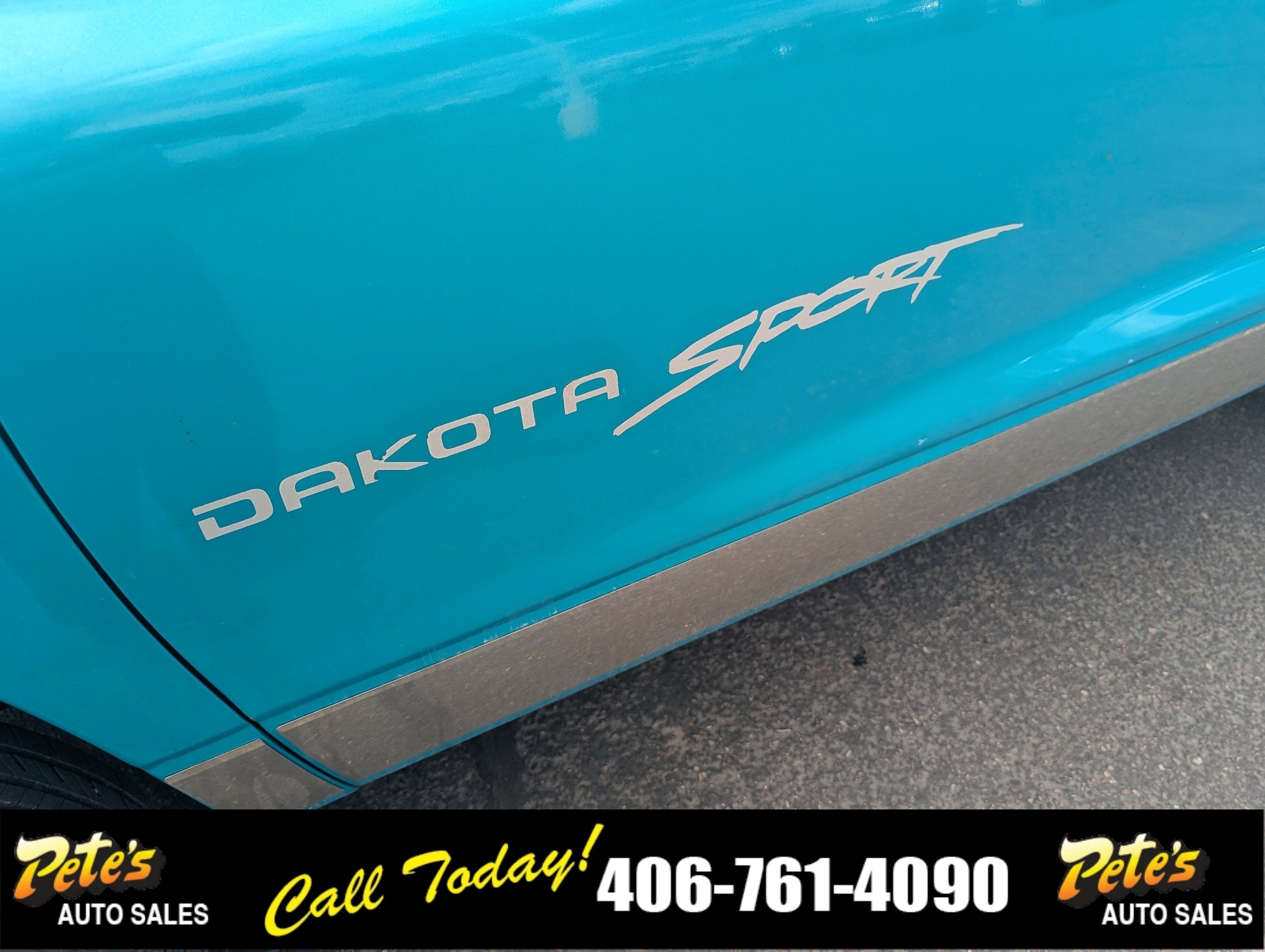

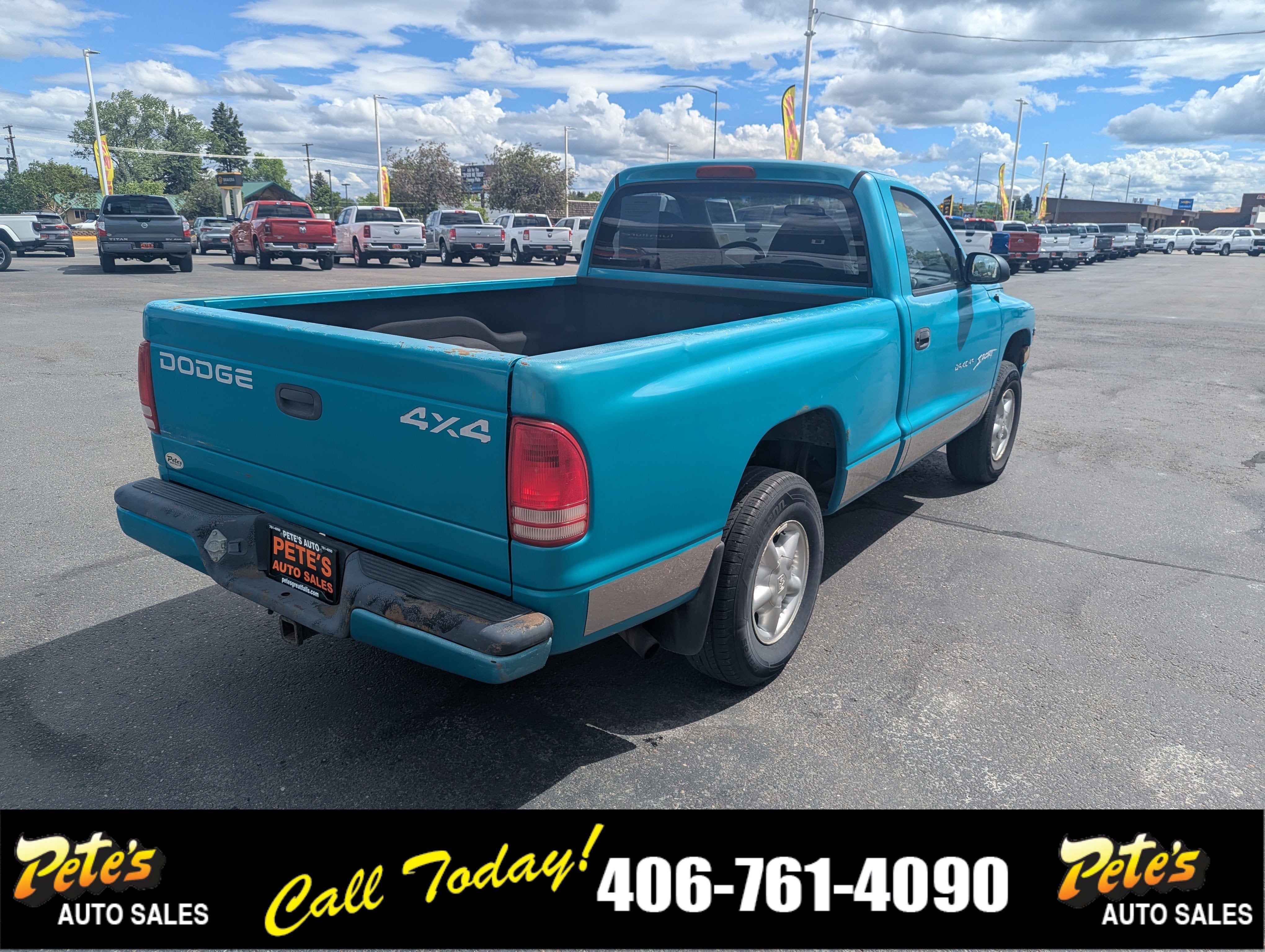

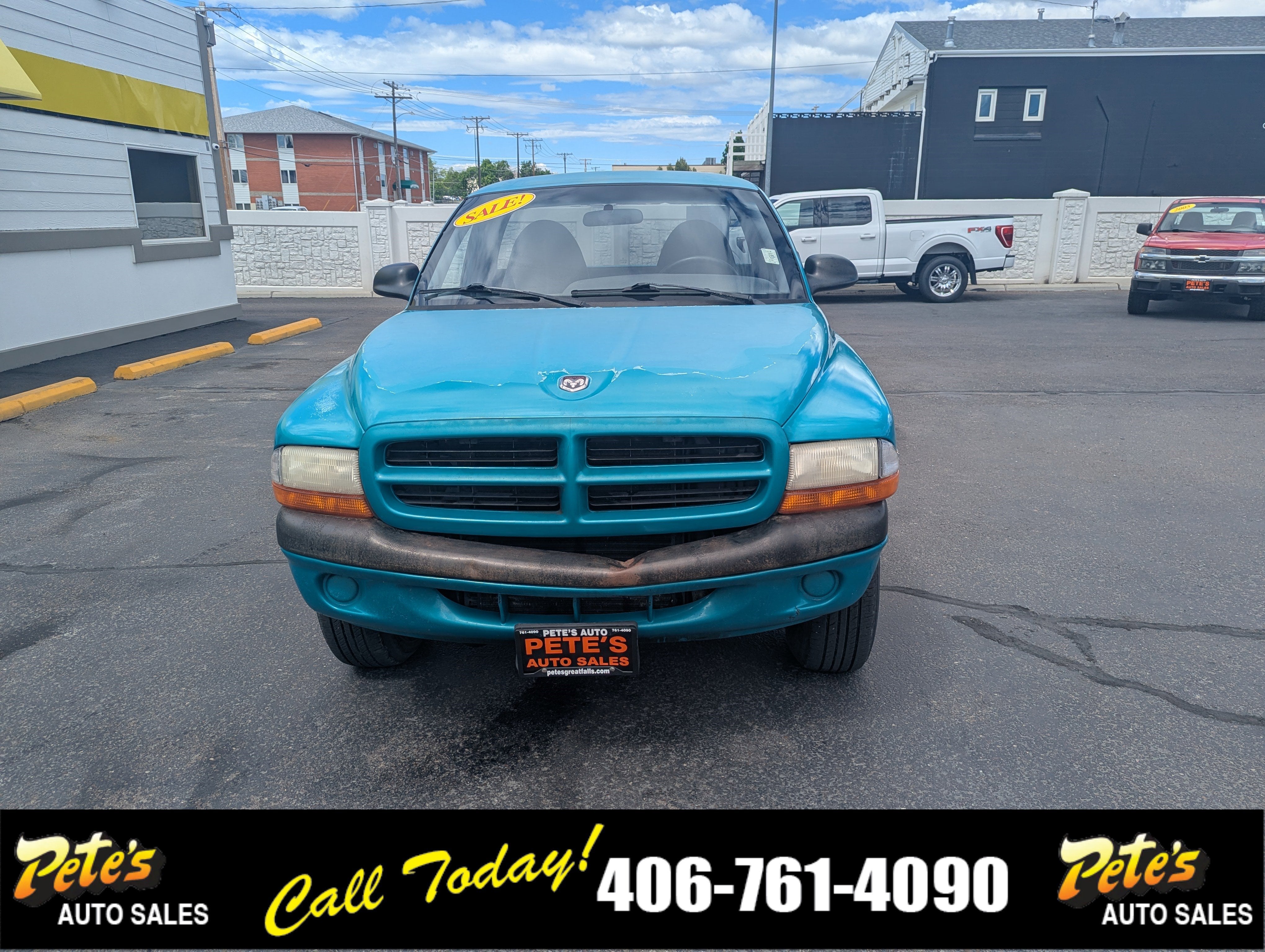

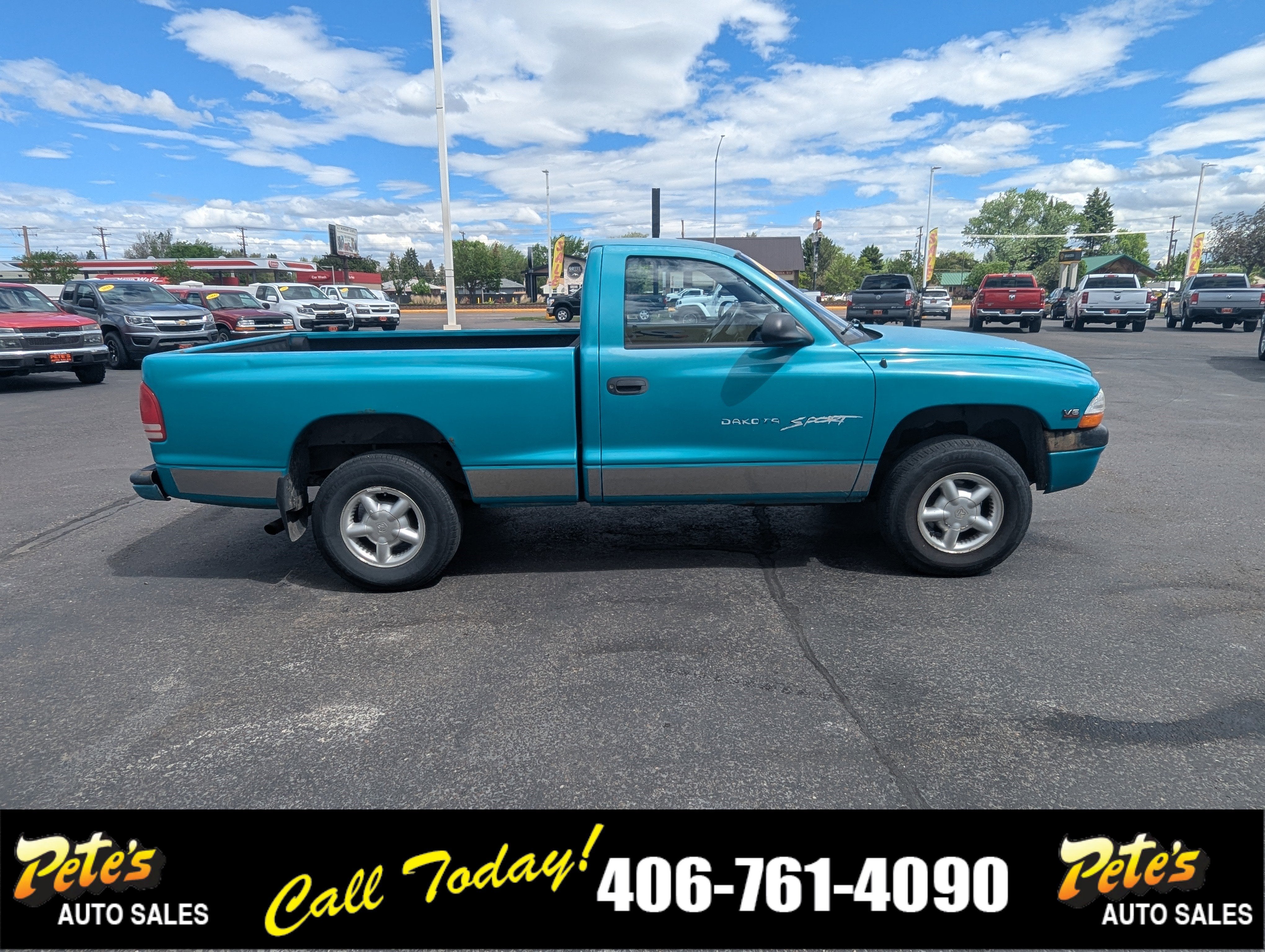

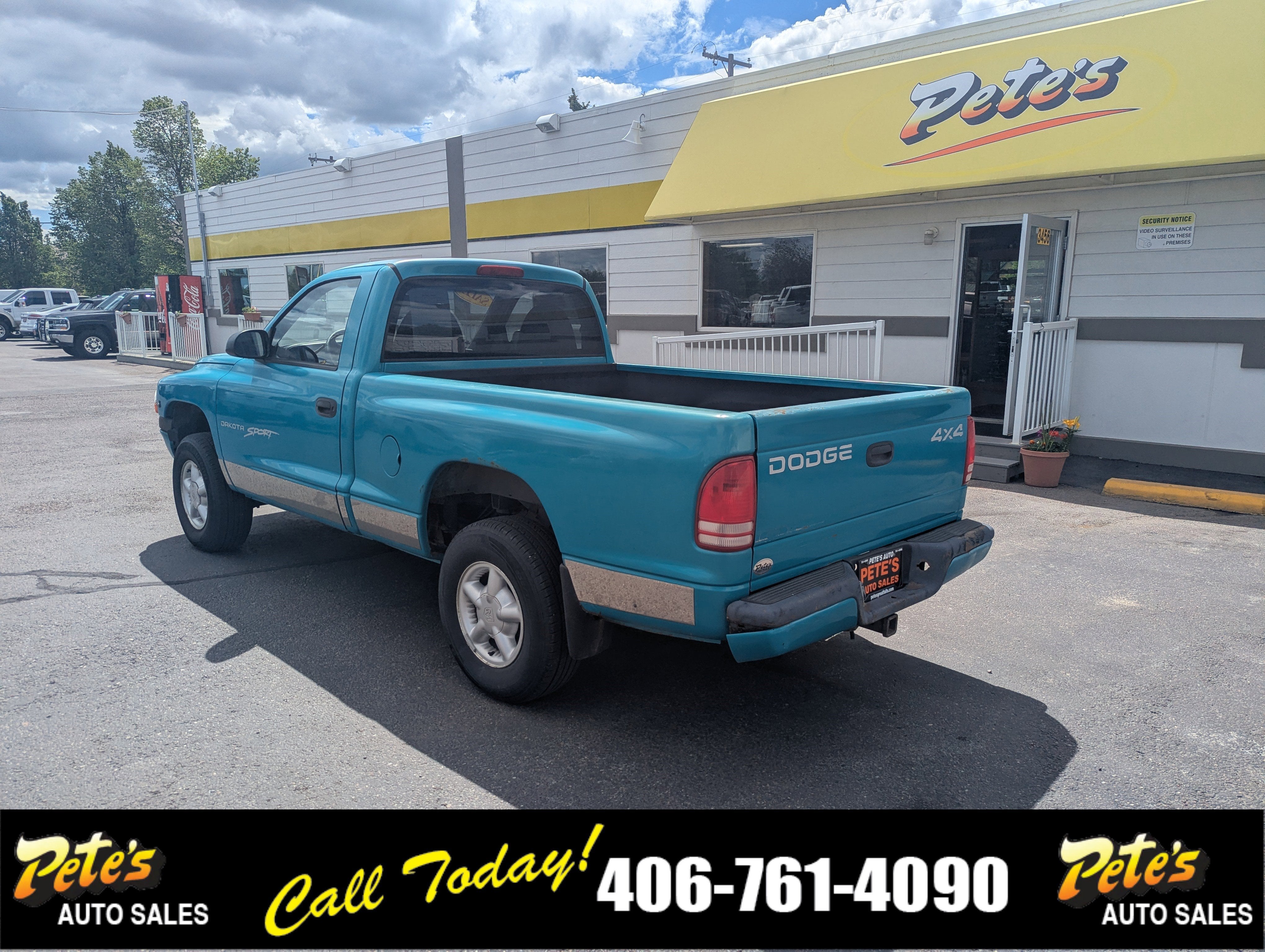

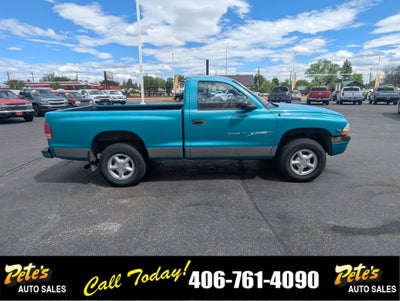

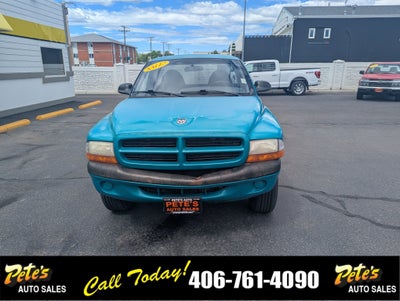

• Vehicle Name: Dodge Dakota
• Body Style: Reg Cab 6.5'
• Body Code: 112" WB
